12V 100Ah Group 31 LiFePO4 Battery for Trolling Motors
$169.00

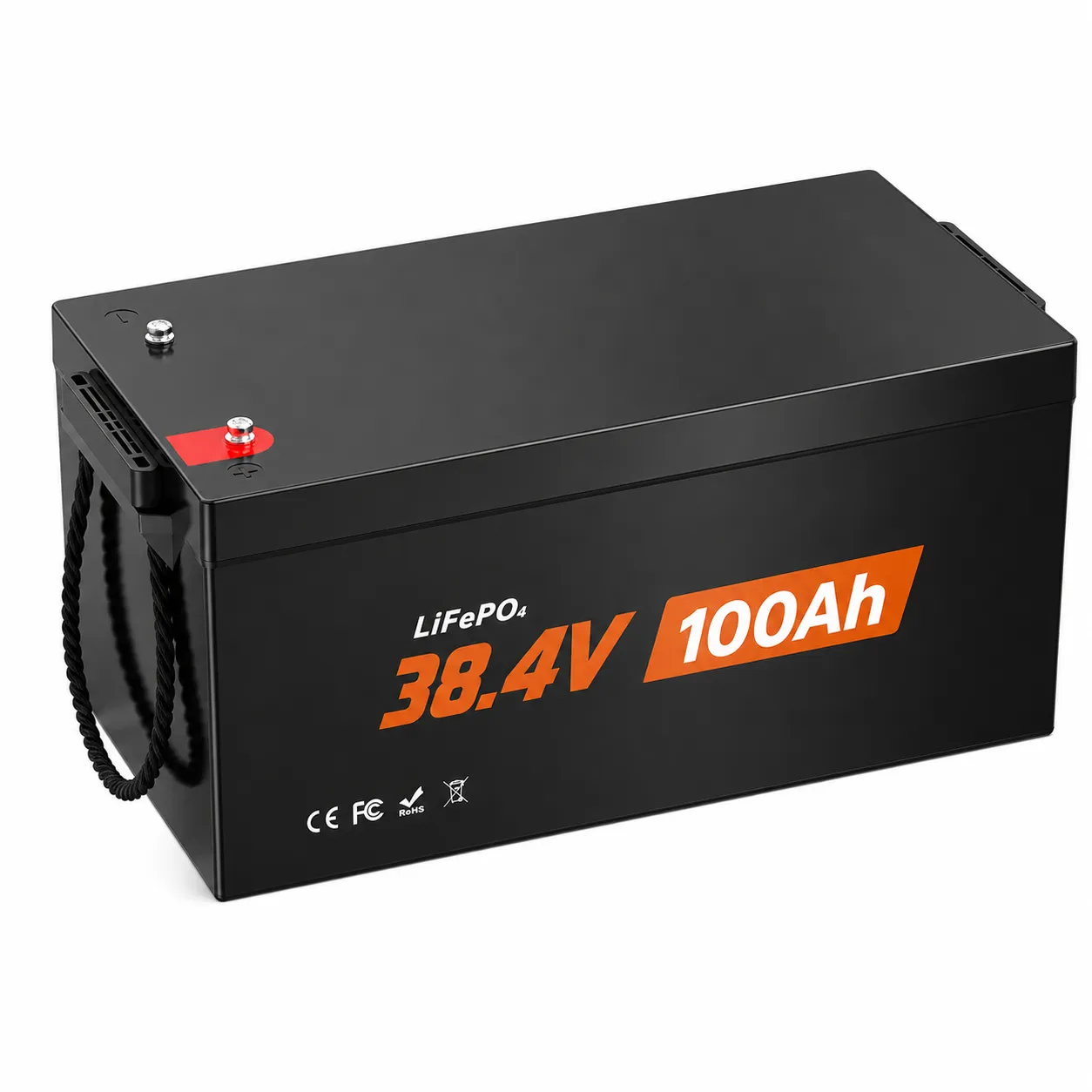

This 36V 100Ah LiFePO4 battery provides 3,840Wh of energy for compatible trolling motors, electric outboard motors and other 36V marine power systems. Bluetooth monitoring, a 100A BMS and low-temperature protection support practical battery management for demanding marine applications.
With a nominal voltage of 38.4V, the battery provides a single-battery solution for compatible 36V systems where the electrical, charging and installation requirements are suitable.
The 100A continuous discharge rating supports up to 3,840W of continuous output, while a short-duration 500A discharge rating is available for compatible surge loads.
38.4V | 100Ah | 3,840Wh | 100A BMS | 3,840W Continuous Output | 500A / 1s Peak | Bluetooth Monitoring | Low-Temperature Protection | IP65 | M8 Terminals

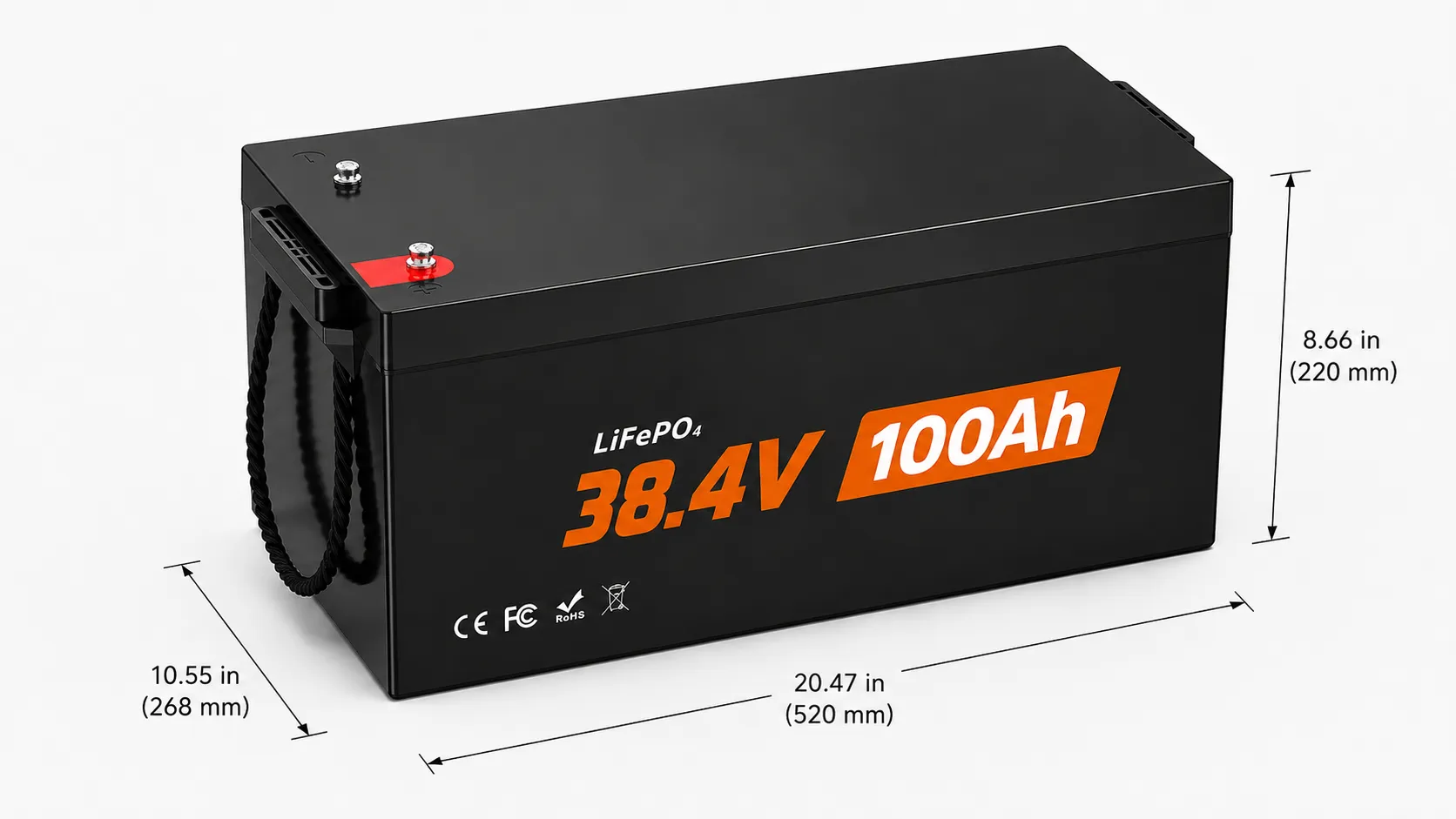

The battery measures approximately 20.47 × 10.55 × 8.66 inches. Before installation, confirm the available battery compartment, terminal clearance, cable routing and mounting space.
The battery uses M8 terminals. Allow sufficient clearance around the positive and negative terminals for cable lugs, protective covers and service access.
A single 38.4V 100Ah LiFePO4 battery can simplify compatible 36V marine installations by reducing the number of individual batteries, inter-battery cables and connection points required in the system.
This can make installation and routine service more straightforward in applications where a single 36V battery is electrically compatible with the trolling motor or electric propulsion system.
Compatibility should be confirmed using the motor voltage, continuous current, peak current, charger profile, cable size, circuit protection, available installation space and required operating time.

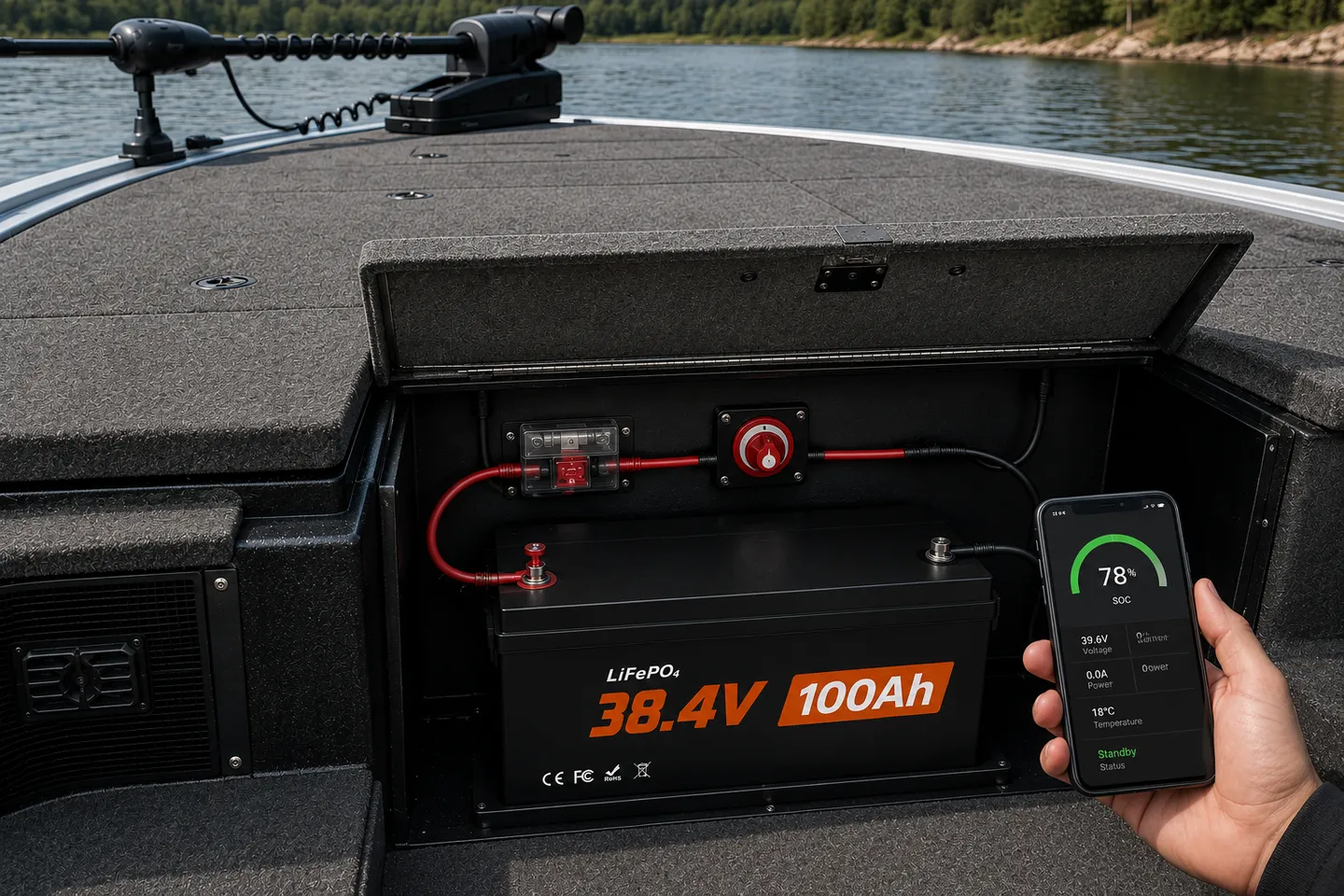

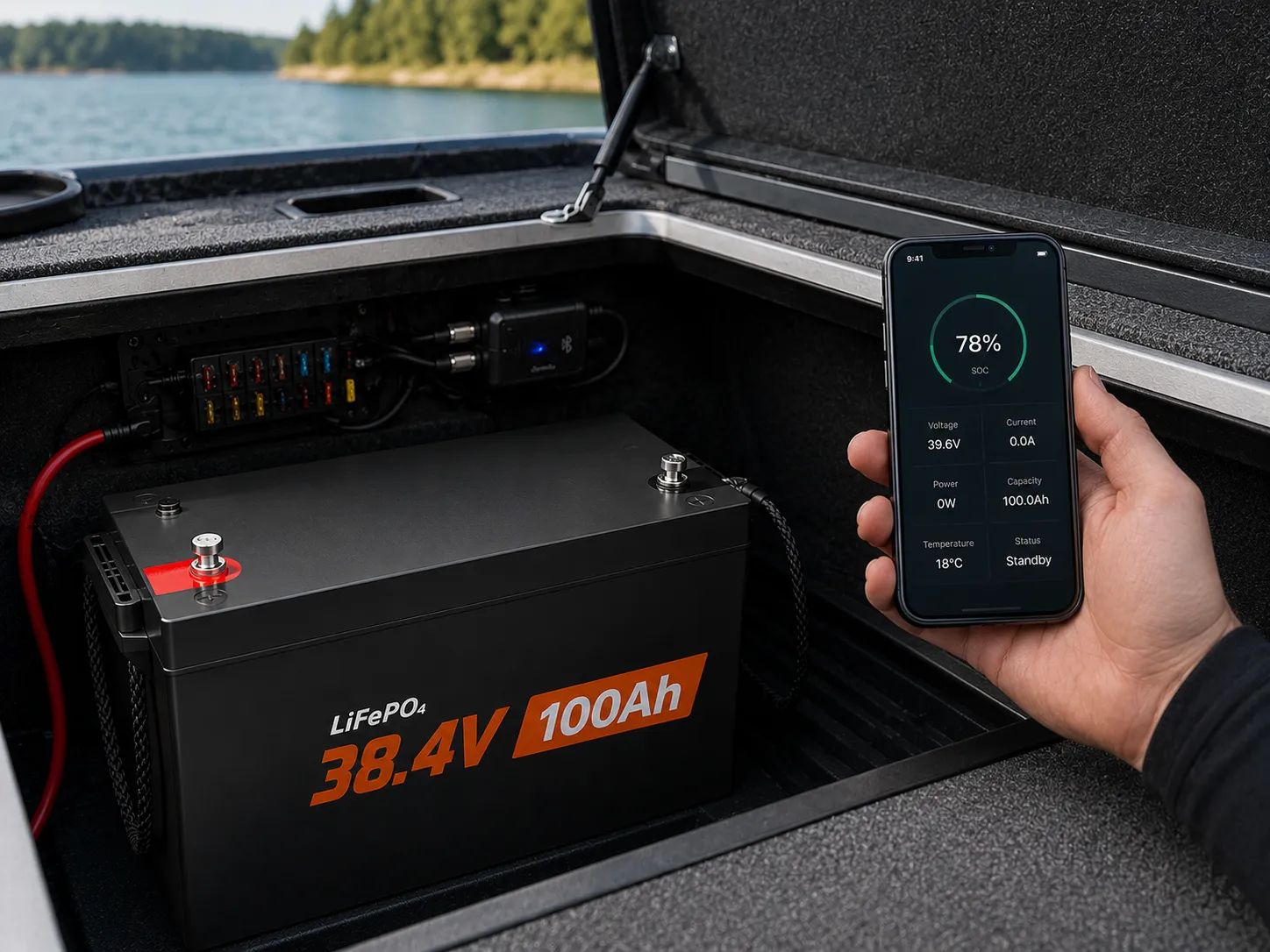

Bluetooth monitoring provides convenient access to battery operating information without opening the battery compartment for routine checks.
Depending on the compatible monitoring interface, battery information can include:

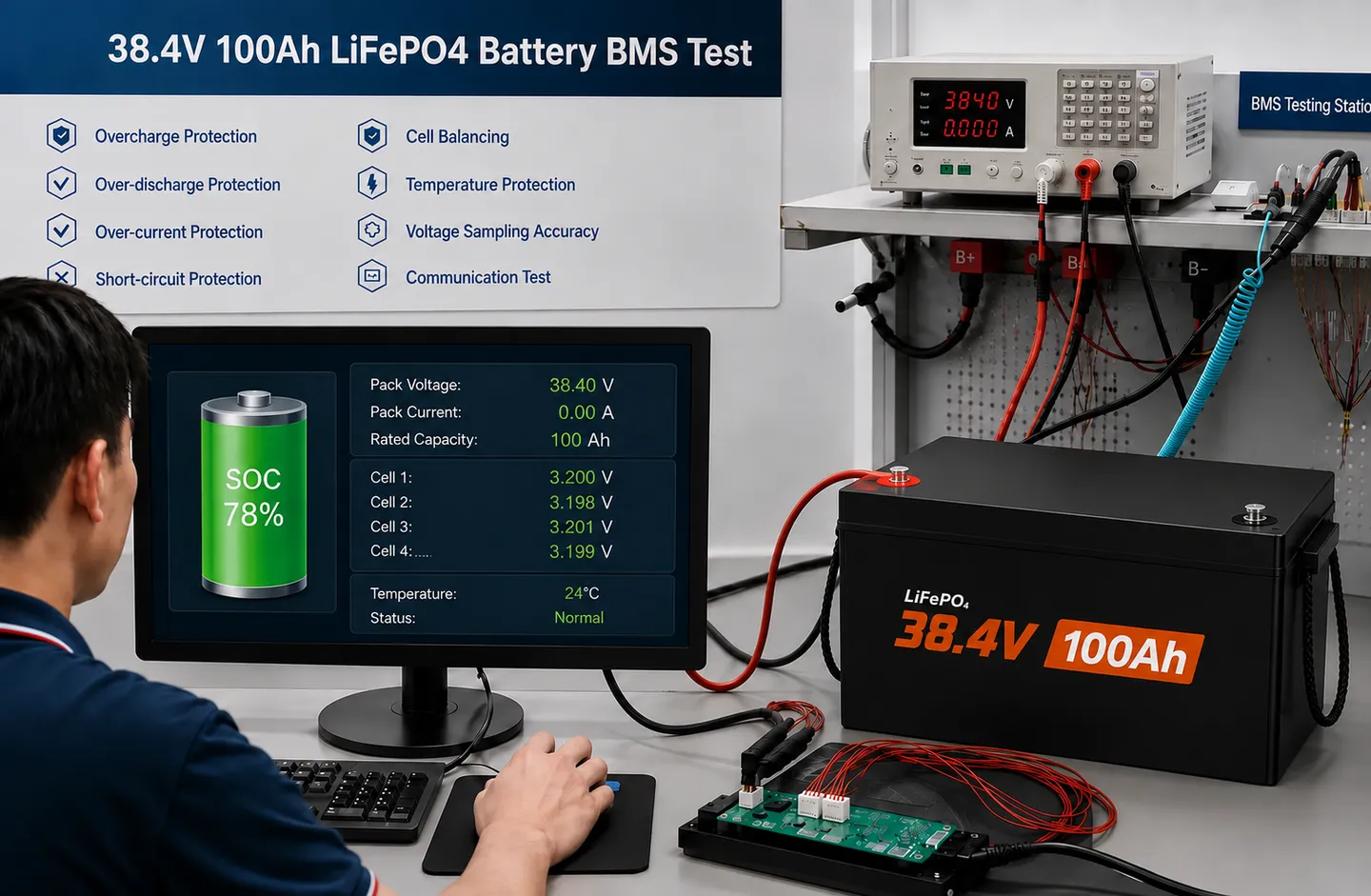

The integrated 100A battery management system monitors the battery during charging and discharging and provides protection when operating conditions move outside the programmed limits.
The battery supports up to 100A continuous charge current and 100A continuous discharge current, providing up to 3,840W continuous output.
A 500A one-second peak discharge rating supports compatible short-duration current demands.
Proper external circuit protection is still required. Fuse or circuit-breaker rating, battery disconnect, cable size and charging equipment should be selected for the actual system.

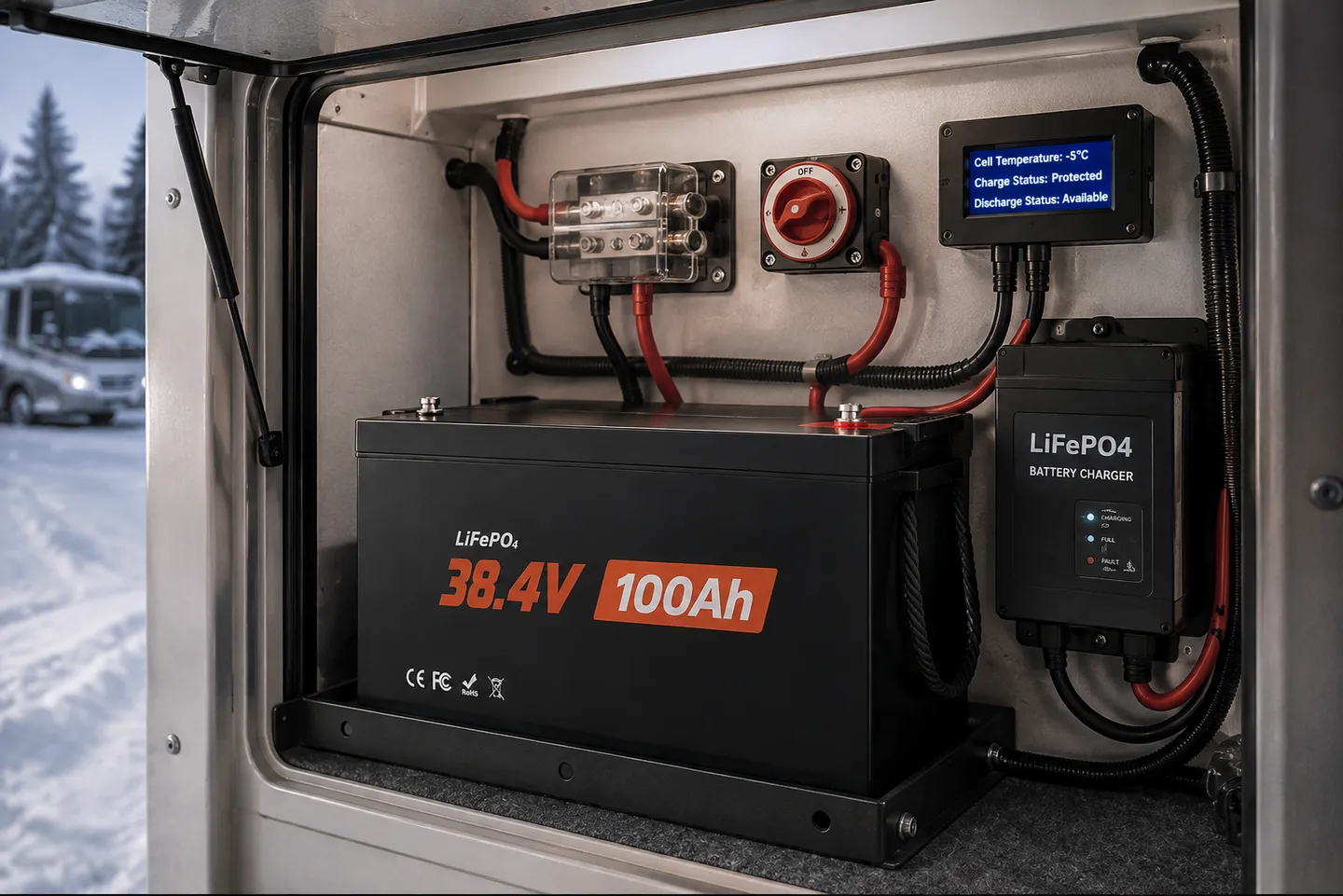

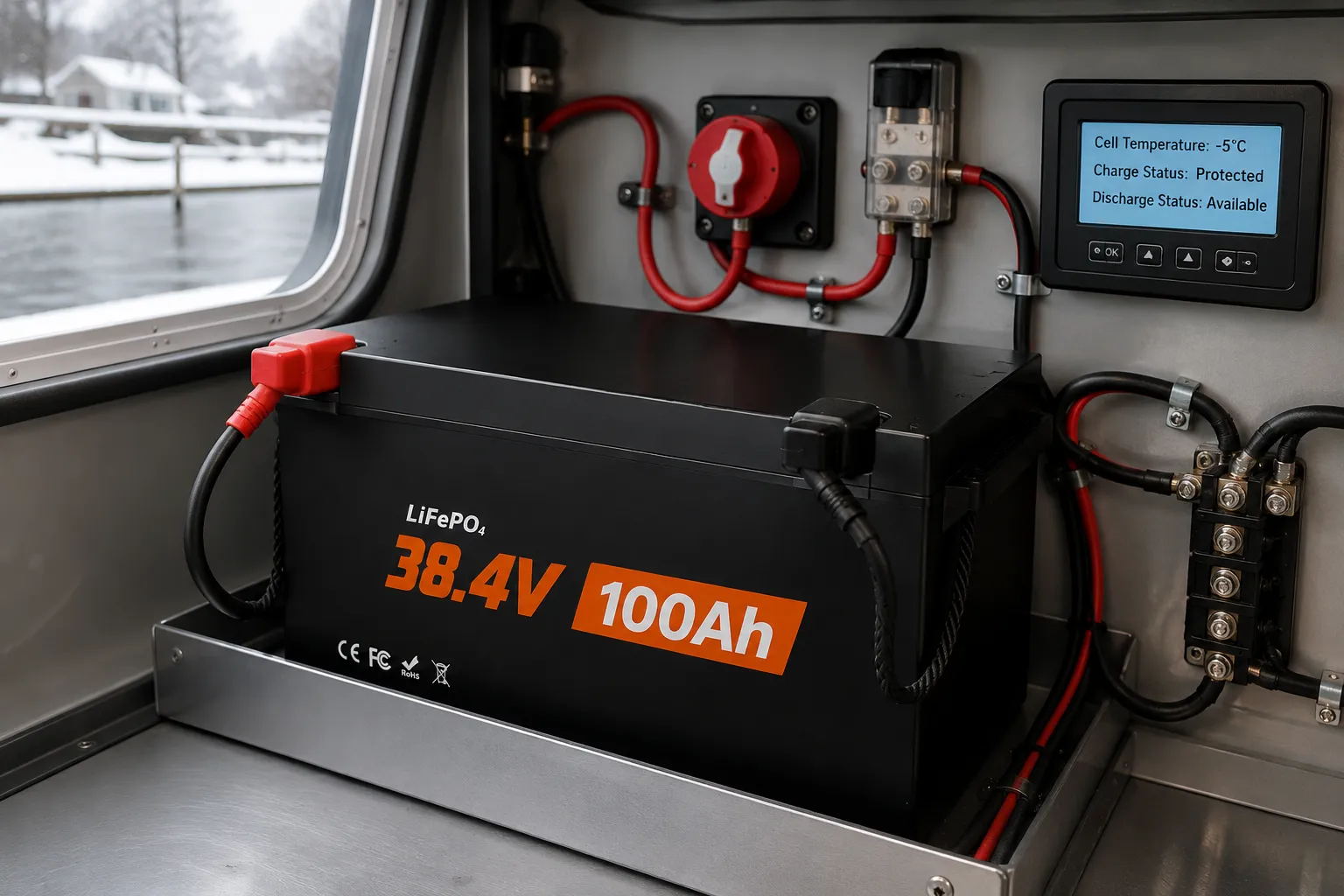

This battery includes low-temperature protection and does not include an internal self-heating system.
Charging is protected when cell temperature falls below approximately 0°C / 32°F. Charging can resume after cell temperature reaches approximately 5°C / 41°F.
Low-temperature discharge protection operates below approximately −20°C / −4°F.
The battery should remain installed in a dry, protected compartment and operated within the specified temperature range.

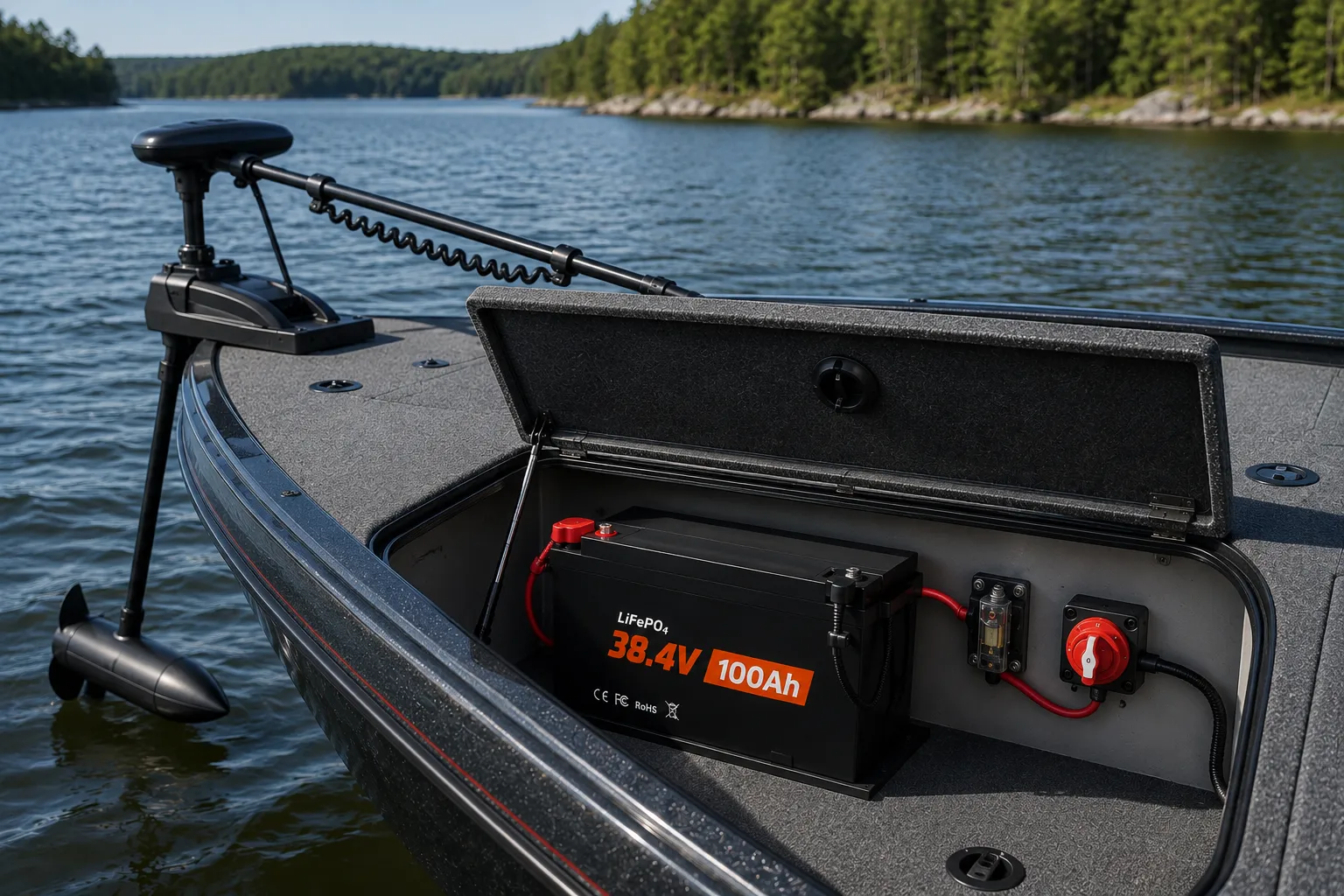

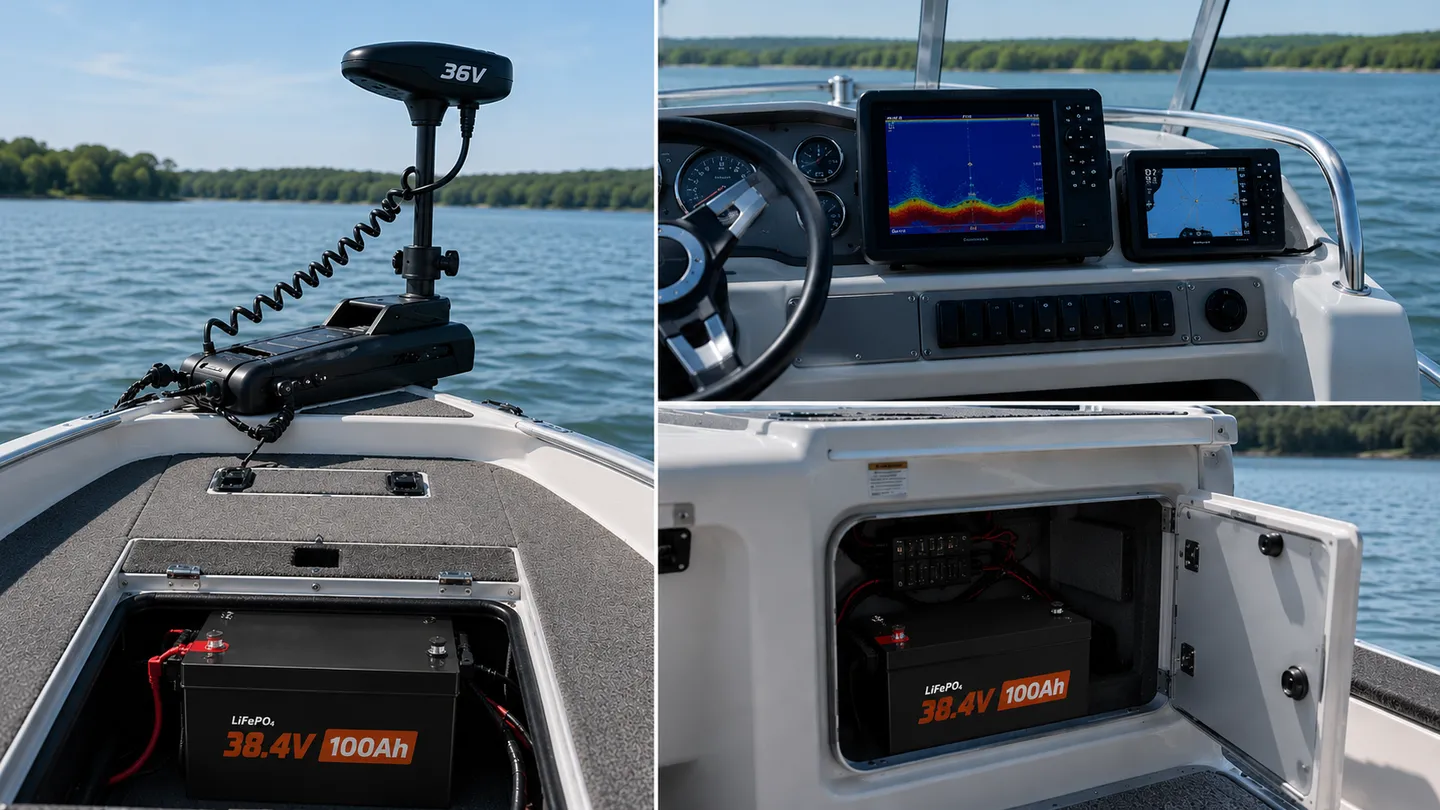

For compatible 36V trolling motors, the battery provides one 38.4V power source with 100Ah capacity and 3,840Wh of stored energy.
Battery selection should be based on the trolling motor's rated voltage, maximum current demand and required operating time rather than boat size alone.
The battery should be installed inside a dry, protected battery compartment with correctly sized positive and negative cables, suitable over-current protection and a battery disconnect.

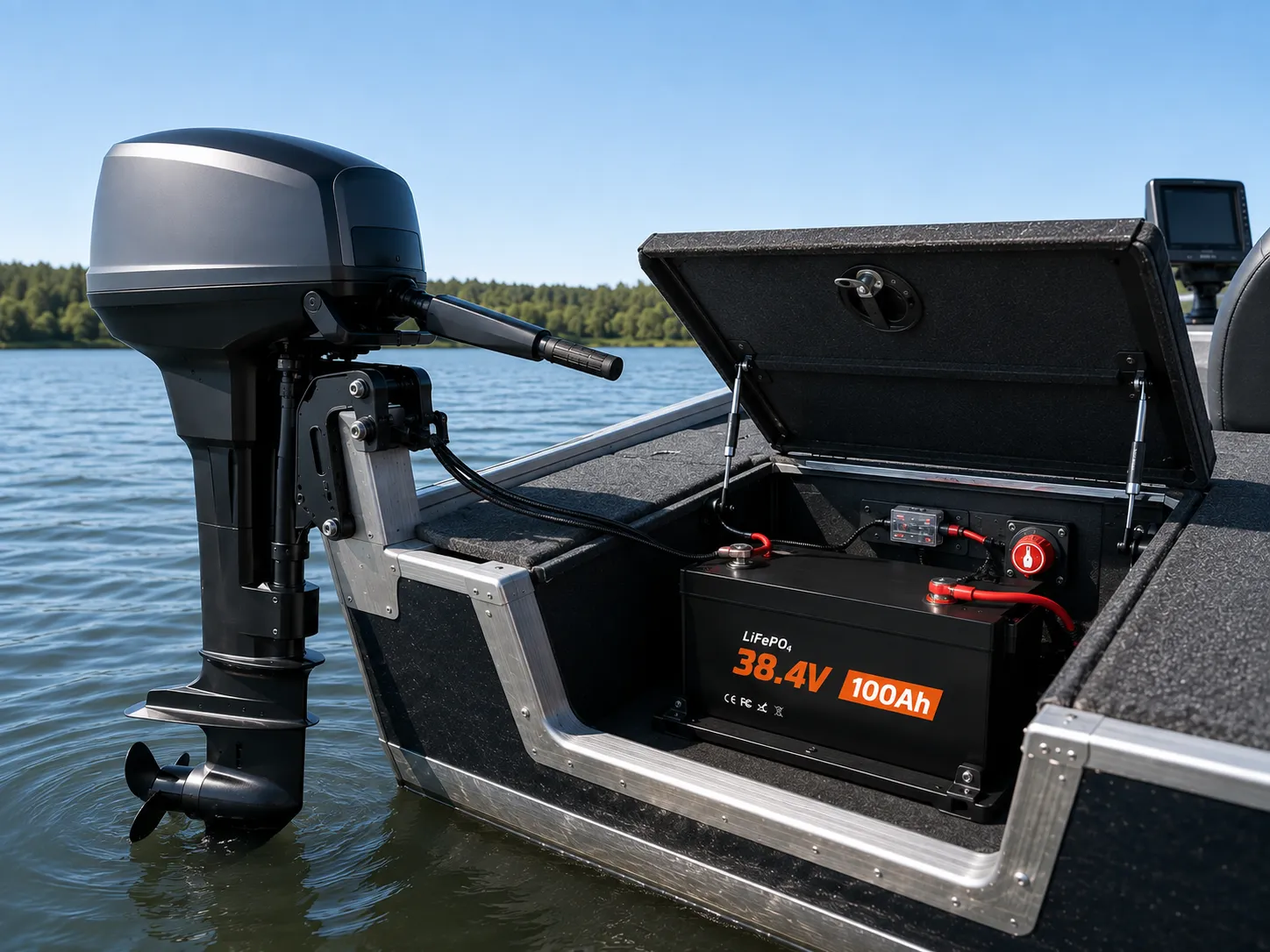

The 100A continuous discharge rating and 500A one-second peak rating allow this battery to be evaluated for compatible 36V electric outboard motor applications.
Electric outboard motors can place different continuous and transient loads on a battery compared with conventional trolling motors.
Always confirm the electric motor manufacturer's rated voltage, maximum input power and maximum current before installation.
This battery is intended for compatible electric propulsion systems. It is not intended as a cranking or starting battery for gasoline or diesel outboard engines.
The specified charging method is CC/CV with a charge voltage of approximately 43.2V ± 0.6V.
The recommended standard charging current is approximately 20A. Charging equipment should be designed for the required battery voltage and LiFePO4 charging profile.
Use a compatible lithium battery charger with the correct CC/CV charging voltage and current limits.
Solar panels should connect through a compatible MPPT charge controller configured for the battery voltage and LiFePO4 charging requirements.
Generator output should pass through a compatible charger or inverter-charger rather than being connected directly to the battery.
Charger voltage, current and operating temperature limits should match the confirmed battery specification.
| Battery Chemistry | LiFePO4 |
|---|---|
| System Voltage Class | 36V |
| Nominal Voltage | 38.4V |
| Rated Capacity | 100Ah |
| Energy | 3,840Wh / 3.84kWh |
| Battery Management System | 100A BMS |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Maximum Continuous Output Power | 3,840W |
| Peak Discharge Current | 500A for 1 second |
| Recommended Charge Current | 20A |
| Charge Method | CC/CV |
| Charge Voltage | 43.2V ± 0.6V |
| Bluetooth Monitoring | Supported |
| Low-Temperature Charging Protection | Supported |
| Self-Heating | Not included |
| Low-Temperature Charge Protection | Below approximately 0°C / 32°F |
| Charging Recovery | Approximately 5°C / 41°F or above |
| Low-Temperature Discharge Protection | Below approximately −20°C / −4°F |
| Dimensions | Approximately 20.47 × 10.55 × 8.66 in |
| Terminal Type | M8 |
| Ingress Protection | IP65 |
| Recommended Applications | 36V trolling motors, compatible electric outboard motors and marine deep-cycle systems |

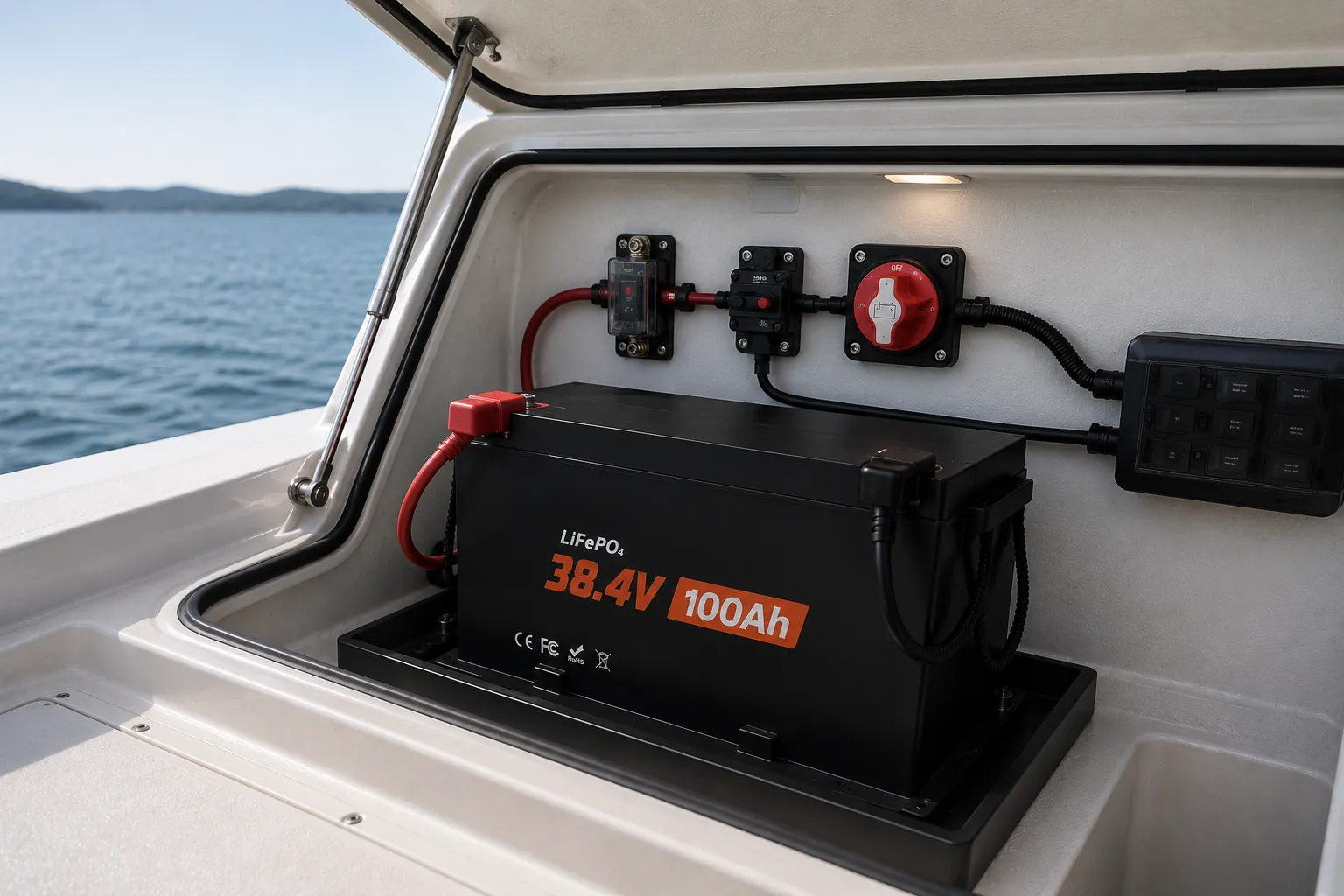

The battery should be securely installed inside a dry, protected battery compartment with suitable cable routing and terminal clearance.
This 36V 100Ah battery platform can be evaluated for marine equipment manufacturers, trolling motor companies, electric propulsion projects, battery distributors, system integrators and private-label battery programs.
Project-specific engineering can be reviewed according to the required electrical configuration and application.
Available project discussions may include:
For engineering review, provide the target application, motor model, rated system voltage, continuous and peak current, required runtime, available battery compartment dimensions, charger specifications and expected operating temperature.
Request OEM Pricing & Technical Support
It is designed for the 36V system class and has a nominal LiFePO4 voltage of 38.4V. Always confirm equipment voltage compatibility before installation.

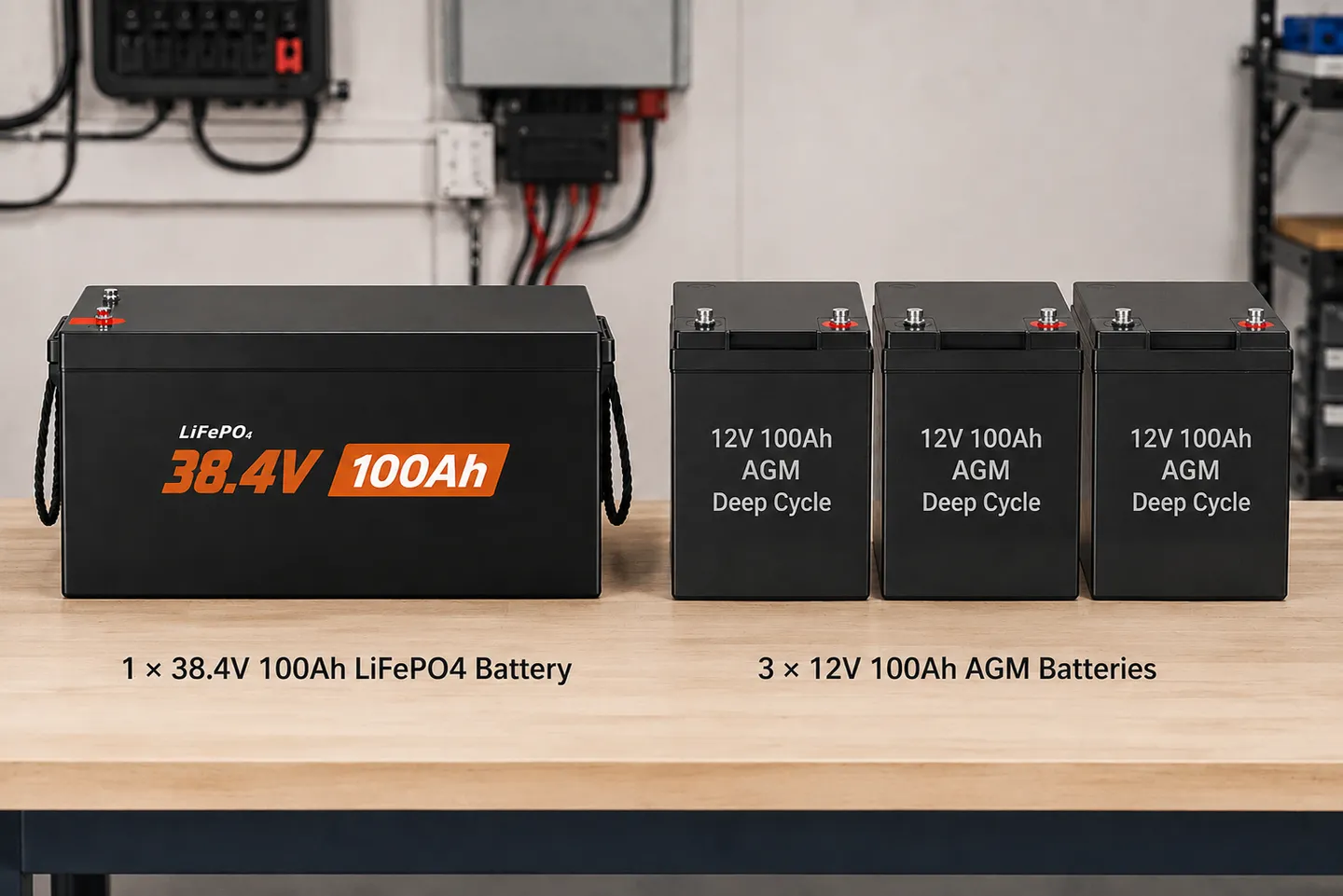

In compatible installations, one 38.4V LiFePO4 battery can provide the required 36V-class battery voltage without using three separate 12V batteries in series. Electrical compatibility should still be confirmed before conversion.
It can be evaluated for compatible 36V trolling motors. Confirm the trolling motor's rated voltage, continuous current, peak current and expected runtime before selecting the battery.
It may be suitable for compatible electric outboard motors within the battery's continuous and peak discharge limits. Always verify the electric motor manufacturer's voltage, power and current requirements.
No. This battery is intended for compatible electric propulsion and deep-cycle applications. It should not be treated as a cranking battery for gasoline or diesel outboard engines.
Yes. Bluetooth monitoring is supported for checking compatible battery operating information including state of charge, voltage, current and temperature.
No. This model includes low-temperature protection but does not contain an internal self-heating system.
Charging is protected when cell temperature falls below approximately 0°C / 32°F and can resume after the cells return to approximately 5°C / 41°F.
Use a charger designed for a 36V-class LiFePO4 battery with an appropriate CC/CV charging profile. The specified charging voltage is approximately 43.2V ± 0.6V.
Install the battery in a dry, protected compartment using suitable mounting hardware, correctly sized cables, external over-current protection and a battery disconnect where required.
Send the trolling motor or electric outboard motor model, system voltage, maximum current, required operating time, battery compartment dimensions and charger information for compatibility review.
Engineering requirements can be reviewed before sample evaluation or project quotation.
Many LiFePO4 batteries can replace compatible lead-acid deep-cycle batteries in RVs, boats, golf carts and industrial equipment. Before installation, confirm the system voltage, battery dimensions, terminal layout, charger profile, maximum load, cable size, fuse rating and operating temperature.
Most LiFePO4 batteries are compatible with standard 12V, 24V, 36V or 48V inverters when the system voltage and power requirements match. Many modern chargers also include a LiFePO4 charging profile. For lead-acid replacement projects, confirm the charger voltage, inverter rating and maximum load before installation. A compatible charger or DC-to-DC charger may be required if the existing charging equipment does not support LiFePO4 batteries.
Yes. OEM and custom battery support can include voltage, capacity, BMS settings, enclosures, terminals, connectors, communication protocols, labels and packaging. Send us the application, electrical requirements, installation dimensions and expected order quantity for review.
MOQ depends on the battery model, specification and customization requirements. Standard models may be available for sample testing, while custom enclosures, private labels and OEM production normally require a confirmed order quantity. Contact us with the model and required quantity for details.
Available certifications and documents depend on the battery model and destination market. Supporting documents may include UN38.3, MSDS, CE, RoHS and product test reports. Confirm the required documents and target market before placing an order.
Lead time depends on the battery model, order quantity, customization and testing requirements. Export shipping options are arranged according to the battery specification, destination and order volume. Send us the required quantity, delivery location and target schedule for a project-specific quotation.
