Commercial & Industrial Energy Storage Solutions

Commercial & Industrial Battery Energy Storage

Commercial & Industrial Energy Storage Solutions

Modular LiFePO4 battery energy storage systems for factories, commercial facilities, solar projects, EV charging sites and microgrids. From compact 30kVA / 40–60kWh all-in-one systems to 125kW liquid-cooled cabinets and 1MWh–5MWh containerized BESS.

40kWh–5MWh Scalable commercial and industrial energy-storage platforms
Air / Liquid Cooling Thermal-management options for different system sizes
BMS + PCS + EMS Integrated battery and energy-management architecture
Grid + PV + Generator Flexible commercial and industrial project integration
C&I BESS Engineering

Start with the site requirement, not only the battery capacity

Commercial and industrial battery storage should be selected according to the site load profile, peak demand, grid conditions, solar generation, operating strategy, required discharge duration and installation environment.

A suitable BESS must consider both power in kW and usable energy in kWh, together with PCS capability, BMS protection, EMS control, communication interfaces, switchgear and site-level electrical integration.

What C&I BESS Can Solve

Energy storage designed around the site's operating objective

Peak Demand Management

Discharge stored energy during high-load periods to reduce facility peak demand where the tariff structure and operating strategy support it.

Solar Energy Shifting

Store available daytime PV generation and discharge it during later load periods or when solar output decreases.

Grid Capacity Support

Support high-load facilities and EV charging infrastructure where transformer capacity or grid connection limits may constrain operations.

Backup Support

Support selected loads when PCS topology, switchgear and control architecture are engineered for backup operation.

Time-of-Use Energy Management

Coordinate charging and discharging according to facility demand, available solar generation and applicable electricity tariff periods.

Microgrid Integration

Coordinate battery storage with PV, generators, utility power and facility loads through a project-specific EMS strategy.

C&I Energy Storage Applications

Explore C&I BESS solutions by application

Different applications require different battery power, usable energy, control logic and system architecture. Review the dedicated solution pages below before selecting a BESS configuration.

40kWh–5MWh BESS Product Range

Six commercial and industrial energy-storage platforms

Select from compact all-in-one BESS, high-voltage modular systems, liquid-cooled outdoor cabinets and containerized energy storage. Final system selection should follow the actual site load profile, required power, operating duration and project architecture.

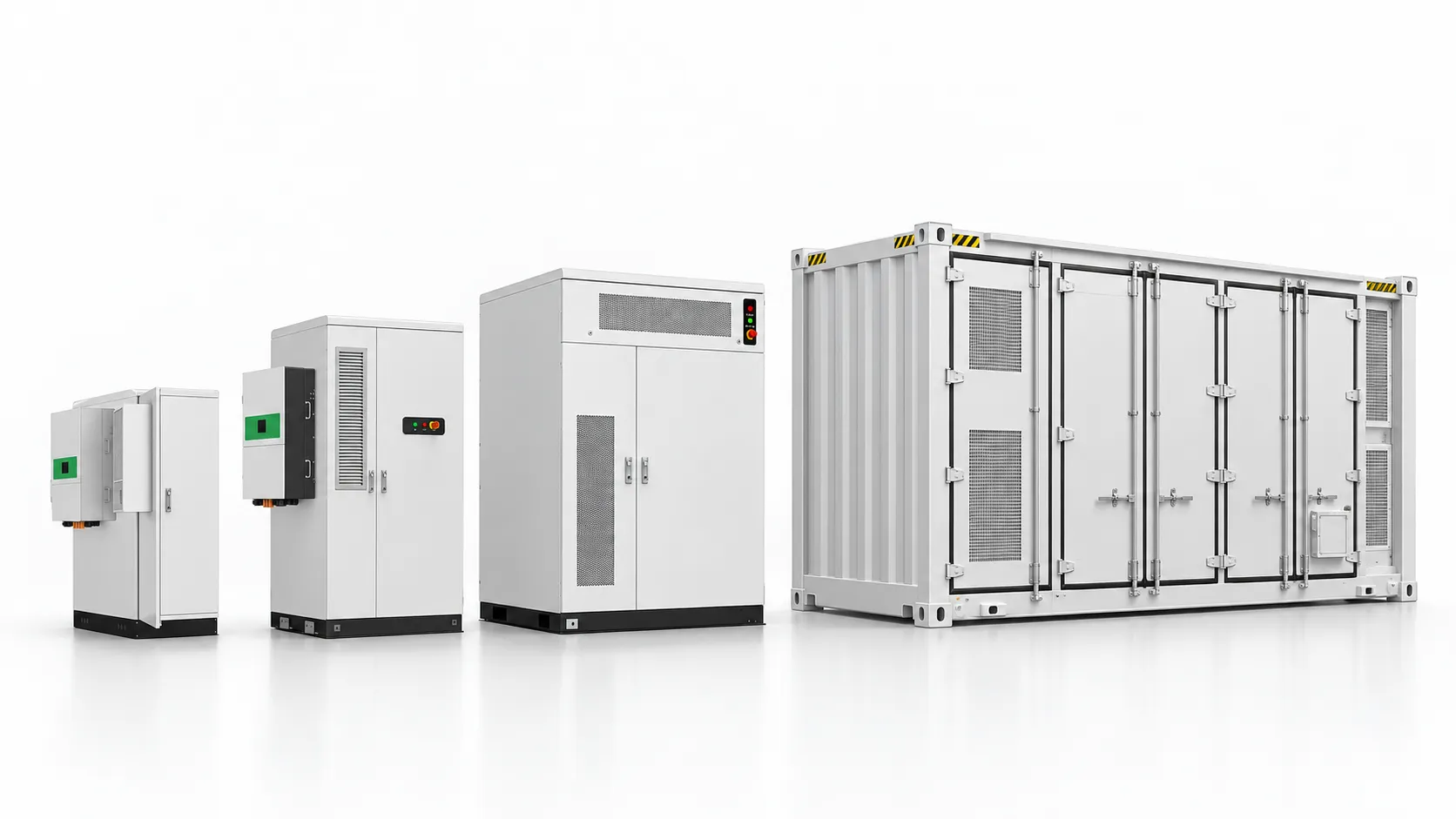

Commercial and industrial battery energy storage systems from 40kWh to 5MWh including all-in-one BESS liquid-cooled cabinets and containerized energy storage
Commercial and industrial battery storage platforms from 40–60kWh compact systems to 1MWh–5MWh containerized BESS.
Compact All-in-One BESS

30kVA / 40–60kWh Mini C&I BESS

Compact three-phase energy storage for small commercial and light-industrial applications.

  • 40–60kWh configurable battery energy
  • 30kVA power-conversion platform
  • Peak shaving and solar self-consumption
  • Integrated compact cabinet
View 30kVA Mini C&I BESS →
High-Voltage C&I BESS

80kVA / 128–209kWh C&I BESS

High-voltage battery storage for commercial facilities and distributed-energy applications.

  • 128–209kWh configurable capacity
  • 80kVA system platform
  • Grid-connected or hybrid operation
  • Scalable battery architecture
View 80kVA / 128–209kWh BESS →
Liquid-Cooled C&I BESS

125kW / 232.9kWh Liquid-Cooled BESS

Liquid-cooled outdoor battery storage for peak shaving, PV energy shifting and commercial energy management.

  • 125kW power class
  • 232.9kWh energy class
  • Liquid thermal management
  • Outdoor C&I deployment
View 125kW / 232.9kWh BESS →
Liquid-Cooled C&I BESS

125kW / 261.2kWh Liquid-Cooled BESS

Outdoor C&I battery storage for peak shaving, solar shifting and industrial load management.

  • 125kW rated power class
  • 261.2kWh nominal battery energy
  • Liquid cooling
  • BMS + PCS + EMS integration
View 125kW / 261.2kWh BESS →
High-Capacity Liquid-Cooled BESS

80kVA / 418kWh Liquid-Cooled BESS

Higher-energy battery storage for longer-duration industrial, solar and facility energy-management applications.

  • 80kVA power class
  • 418kWh battery energy
  • Liquid-cooled battery cabinet
  • Industrial and solar applications
View 80kVA / 418kWh BESS →
Containerized BESS

1MWh–5MWh Container Energy Storage

Containerized battery energy storage for industrial, microgrid and renewable-energy projects.

  • 1MWh–5MWh project scale
  • High-voltage battery architecture
  • Liquid cooling and system protection
  • Expandable multi-container design
View 1MWh–5MWh Container BESS →
C&I BESS System Architecture

Battery, BMS, PCS and EMS must operate as one integrated system

A commercial battery energy storage system is more than a battery cabinet. Battery modules, BMS, PCS, EMS, metering, electrical protection, switchgear, thermal management and fire protection must integrate with the site's electrical infrastructure.

Grid / PV / Generator Energy sources
Meter / EMS Site-level monitoring & control
PCS DC / AC power conversion
Battery + BMS Energy storage & battery protection
Facility Load Commercial / industrial loads
Communication & System Integration

Confirm communication and control interfaces before commissioning

Reliable BESS integration depends on more than nominal power and battery energy. Communication requirements between the battery, BMS, PCS, EMS, meter, inverter and site controller should be reviewed during project engineering.

CAN / RS485 Communication interfaces should be matched to the selected battery, PCS and project configuration.
PCS & EMS Integration Control logic, meter data and equipment compatibility should be confirmed at system level.
Monitoring & Diagnostics Project-specific monitoring, alarms and diagnostic requirements can be reviewed during system design.
Project-Specific Integration Inverter, controller, metering and communication requirements should be specified before ordering.
Review BMS & System Compatibility →
C&I BESS Sizing

kW determines power. kWh determines duration.

Selecting a battery storage system only by nominal battery capacity can result in an incorrectly sized project. Required power and usable battery energy should be evaluated separately against the actual site load profile.

Power, kW

Determines how much charging or discharging power the BESS must deliver or absorb at a particular moment.

Energy, kWh

Determines how long the required BESS power can be sustained within the permitted battery operating range.

Example, 80kW × 2h

An 80kW peak reduction sustained for two hours requires approximately 160kWh of usable battery energy before project-specific margins.

Read the C&I BESS Sizing Guide →
Representative C&I Configuration

Typical 125kW / 261.2kWh liquid-cooled BESS architecture

A 125kW / 261.2kWh outdoor cabinet represents a typical C&I platform for peak shaving, PV energy shifting, facility load management and project-specific backup applications.

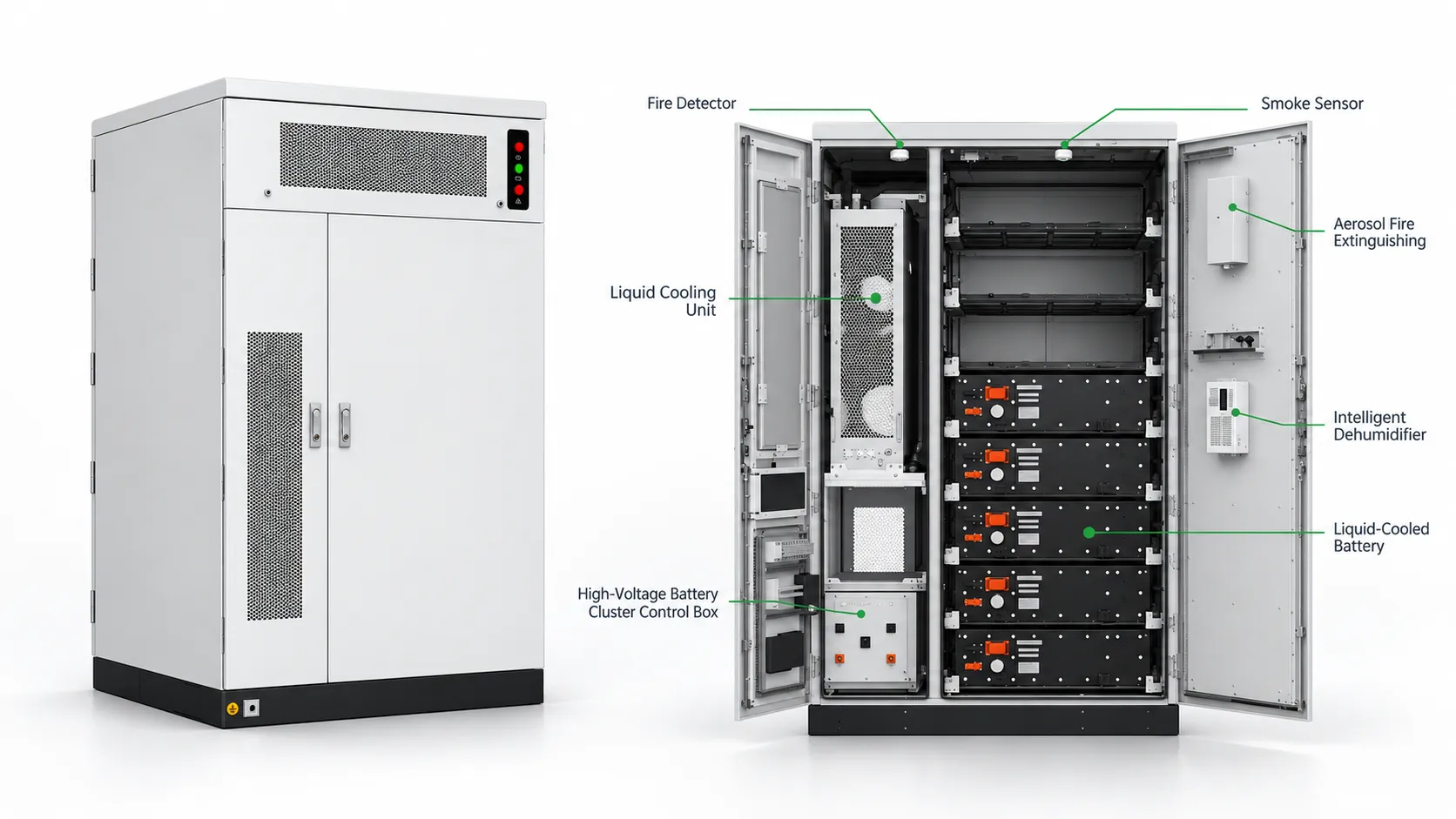

125kW 261.2kWh liquid cooled commercial and industrial battery energy storage cabinet with battery modules BMS cooling and fire protection
Representative internal architecture of a liquid-cooled commercial and industrial battery energy storage cabinet.
System Type Outdoor all-in-one C&I battery energy storage cabinet
Rated Power Class 125kW
Nominal Energy 261.2kWh
Battery Chemistry LiFePO4 (LFP)
Thermal Management Liquid cooling
Core Subsystems Battery, BMS, PCS, EMS, protection, cooling, fire protection and auxiliary power
Typical Applications Peak shaving, PV energy shifting, load management and project-specific backup support
View 125kW / 261.2kWh System Specifications →
MWh-Scale Battery Energy Storage

1MWh–5MWh containerized battery energy storage

For industrial parks, renewable-energy projects, microgrids and large commercial sites, containerized BESS provides a scalable high-voltage energy-storage platform.

Final power rating, battery energy, PCS architecture, transformer, switchgear, cooling, fire protection, EMS and grid interface should be confirmed during project engineering.

View 1MWh–5MWh Container BESS →

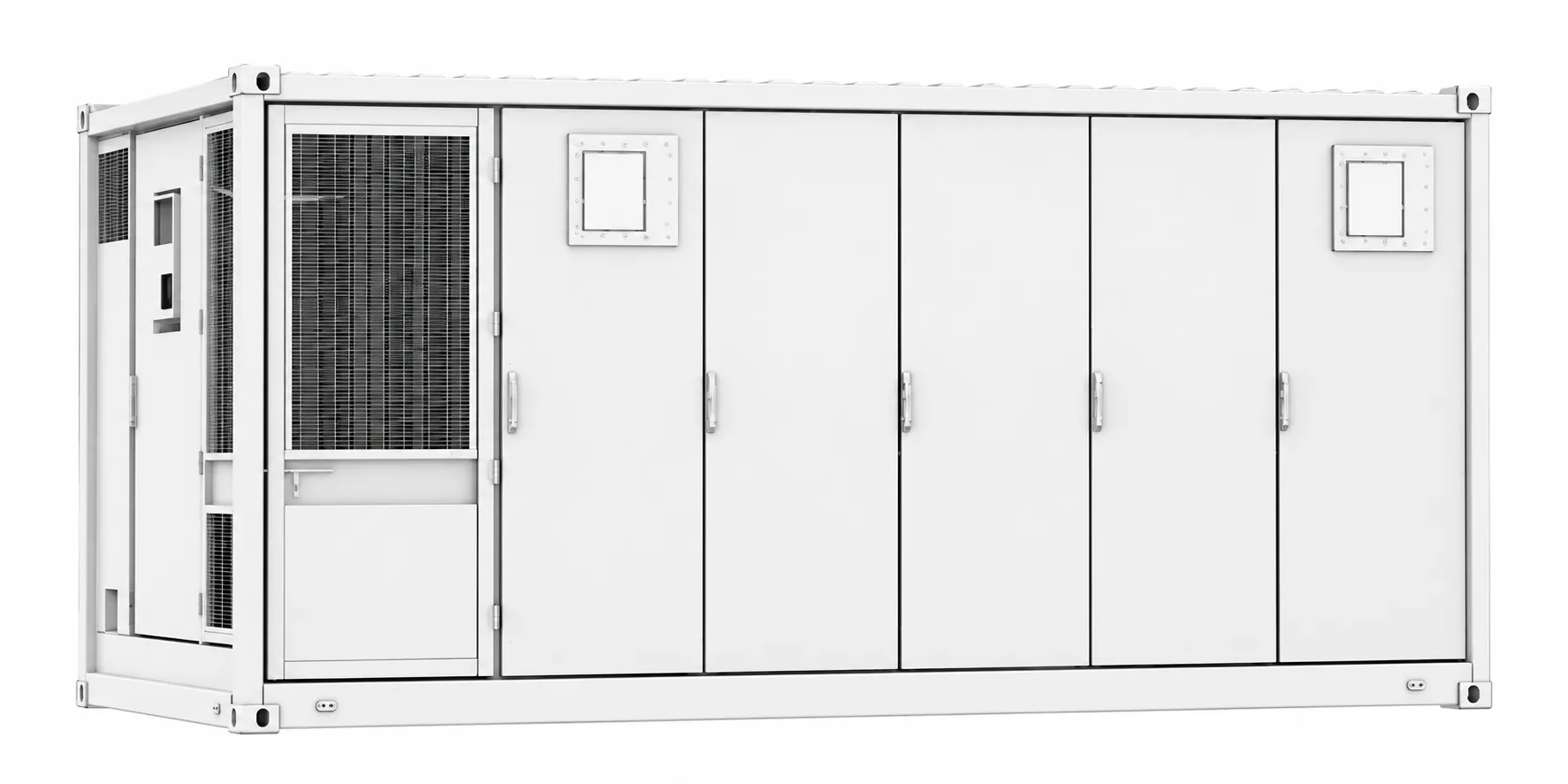

1MWh to 5MWh liquid cooled container battery energy storage system for industrial solar microgrid and commercial BESS projects
Containerized battery storage for industrial, renewable-energy and microgrid projects.
C&I BESS Engineering Resources

Technical resources for BESS selection and project review

Use the dedicated engineering resources below to evaluate BESS sizing, technical documentation and system-level compatibility.

Testing & Compliance

Validate the battery platform before project approval

Project approval should review battery performance, BMS protection, communication interfaces, installation requirements and applicable model-specific certification or transport documentation.

Project Engineering Inputs

Information required for accurate C&I BESS selection

Providing complete site information helps determine the required battery power, usable energy, PCS configuration and operating strategy.

✓ Country, grid voltage and frequency
✓ Interval load profile or electricity bills
✓ Peak demand and typical facility load
✓ Required discharge or backup duration
✓ Existing or planned solar PV capacity
✓ Transformer, switchgear and SLD information
✓ Indoor / outdoor installation conditions
✓ Grid-connected, off-grid or hybrid operation
✓ PCS, EMS and communication requirements
✓ Target quantity, delivery schedule and Incoterm
C&I Energy Storage FAQ

Questions about commercial and industrial BESS

What is a commercial and industrial BESS?

A C&I battery energy storage system stores electrical energy for commercial or industrial facilities and releases it according to a defined operating strategy. Typical applications include peak shaving, solar energy shifting, load management and microgrid operation.

How do I choose the correct kW and kWh?

kW describes required charging or discharging power. kWh describes stored energy and helps determine how long the required power can be sustained. Both should be calculated from the site's load profile and operating duration.

What is the difference between air-cooled and liquid-cooled BESS?

Air cooling may suit smaller systems and certain operating environments. Liquid cooling generally provides tighter battery temperature control and is commonly used for higher-energy-density outdoor BESS or demanding duty cycles.

Can a C&I BESS integrate with solar PV and generators?

Yes, when the PCS, EMS, metering, protection and control logic are engineered for the intended solar PV, generator, utility-grid and facility-load interfaces.

Can a BESS provide UPS-style no-break backup?

Not automatically. Transfer performance depends on PCS topology, switching architecture and control design. Applications requiring no-break transfer may require a dedicated UPS or critical-power architecture.

What should be confirmed before ordering a C&I BESS?

Confirm the site load profile, SLD, grid parameters, intended operating modes, PCS and EMS requirements, communication interfaces, installation environment, protection coordination, applicable compliance documentation, commissioning requirements and warranty boundaries.

Project-Specific BESS Engineering

Send the site data before selecting the battery size

Share the load profile, grid voltage, maximum demand, solar capacity, required discharge duration, installation conditions and operating strategy. The project can then be reviewed for a suitable battery, PCS and system configuration.
