12V 100Ah LiFePO4 Marine Battery for Trolling Motors

  • Bluetooth
  • Smart BMS
  • Group 31
SKU: BST-MAR-12V100-BT
$169.00
Bluetooth:

About this product

This 12V 100Ah LiFePO4 marine battery is designed for compatible electric outboard motors, 12V trolling motors and onboard deep-cycle loads. It stores 1,280Wh of energy in a Group 31 case and combines Bluetooth monitoring with a 100A Smart BMS.

Short-duration discharge capability supports changing propulsion loads, while low-temperature protection and an IP65 enclosure help protect the battery in properly installed fishing-boat and small-craft electrical systems.

12.8V | 100Ah | 1,280Wh | 100A Smart BMS | Bluetooth | Group 31 | IP65

Application notice: This is a deep-cycle marine lithium battery for electric propulsion and onboard DC loads. Do not use it to crank or start a gasoline or diesel engine.

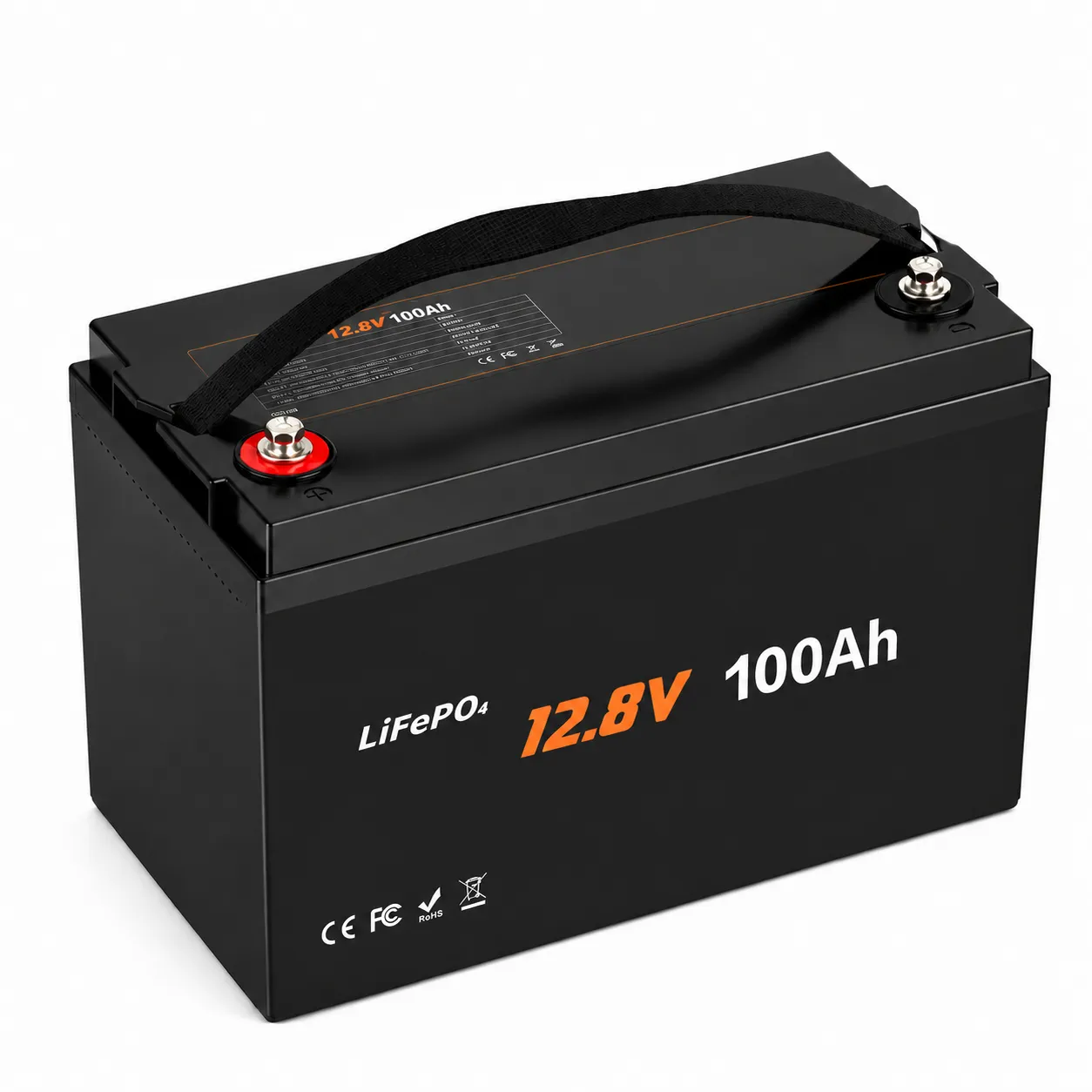

12V 100Ah marine LiFePO4 battery for electric outboard and trolling motor systems
12V 100Ah Marine LiFePO4 Battery

12V Marine Power for Electric Outboards and Trolling Motors

1,280Wh Deep-Cycle Energy

Provides 100Ah of capacity for compatible electric motors and onboard equipment.

Electric Propulsion Support

Handles changing motor loads within the confirmed continuous and short-duration current limits.

Bluetooth Monitoring

Check state of charge, voltage, current, temperature and operating status.

Smart BMS Protection

Manages charging, discharging, temperature, overcurrent and short-circuit protection.

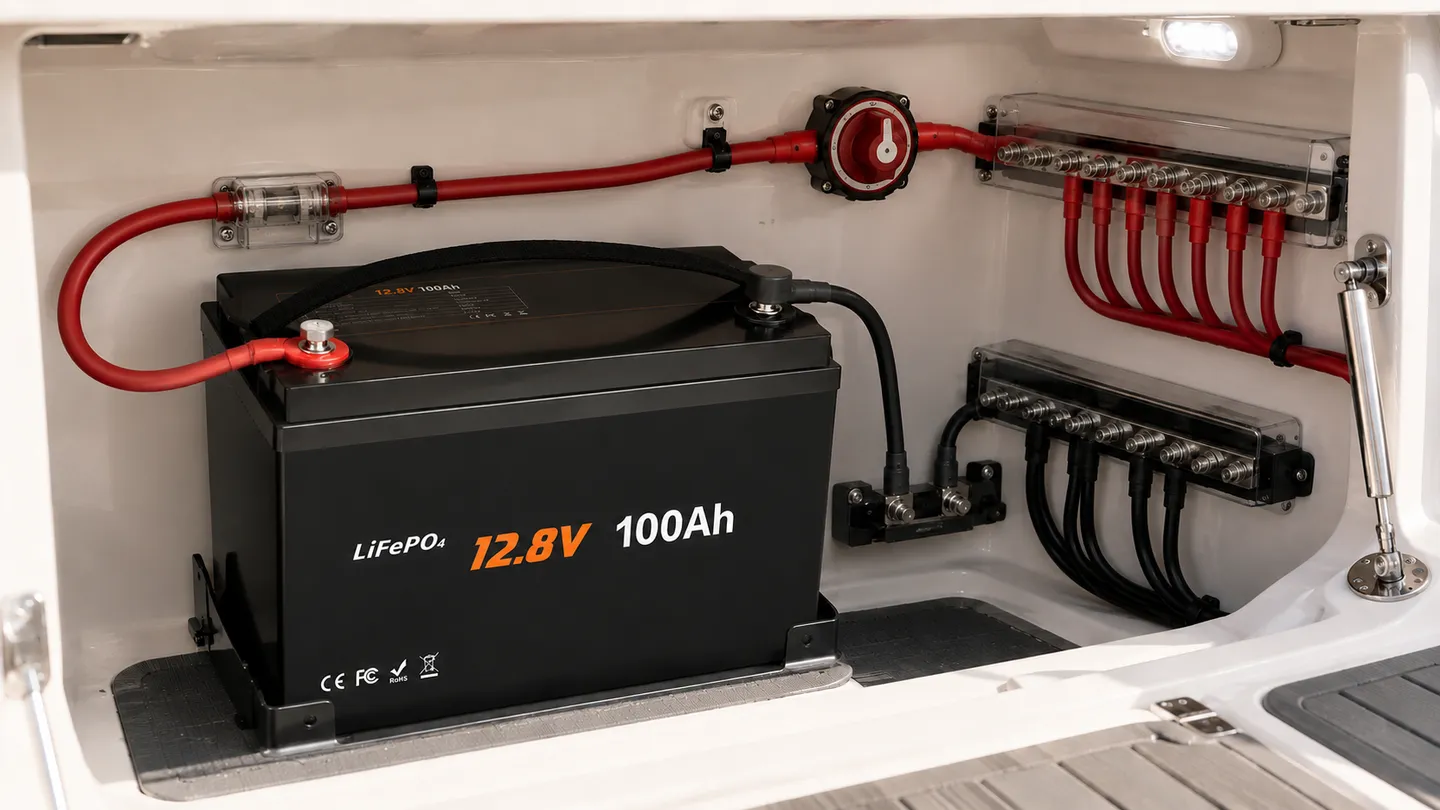

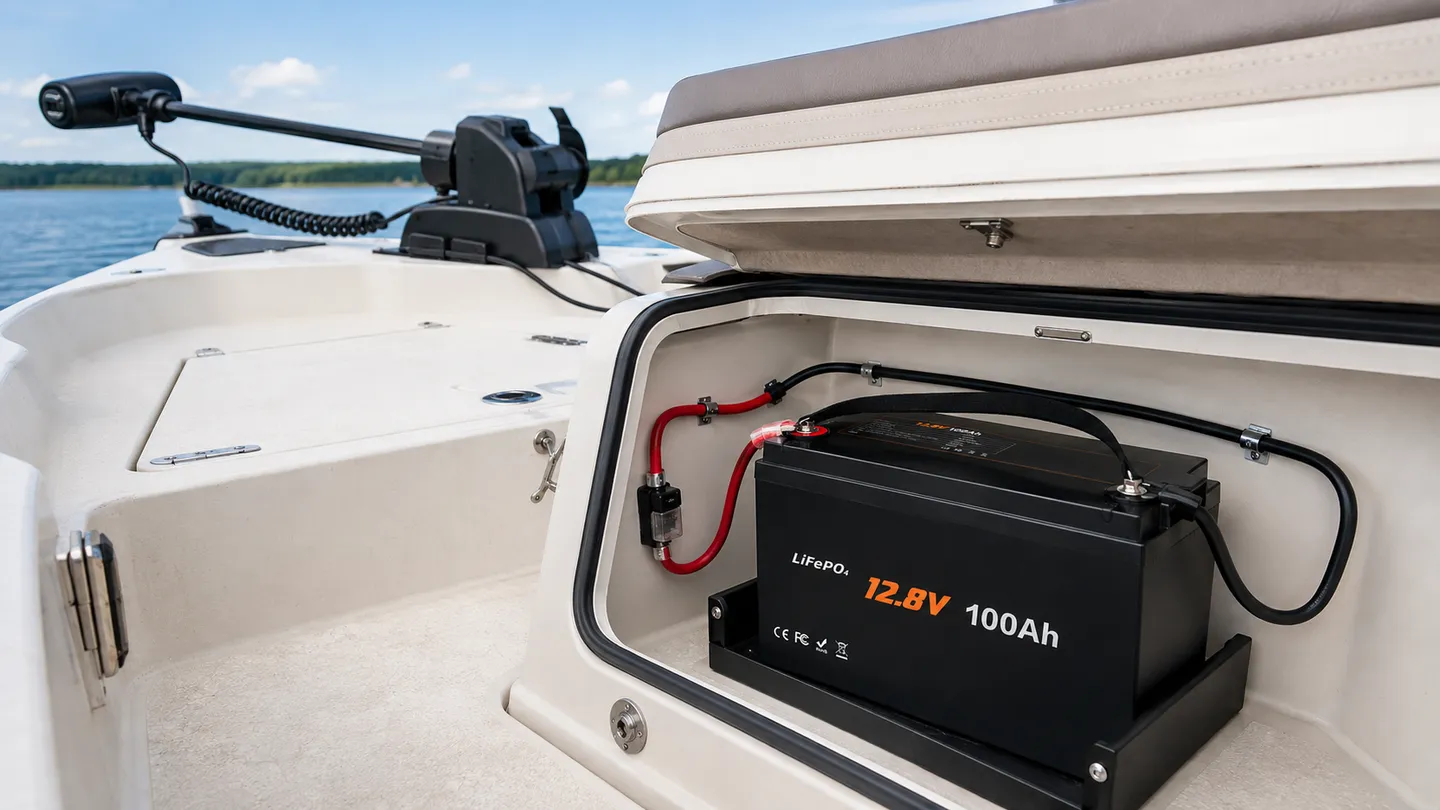

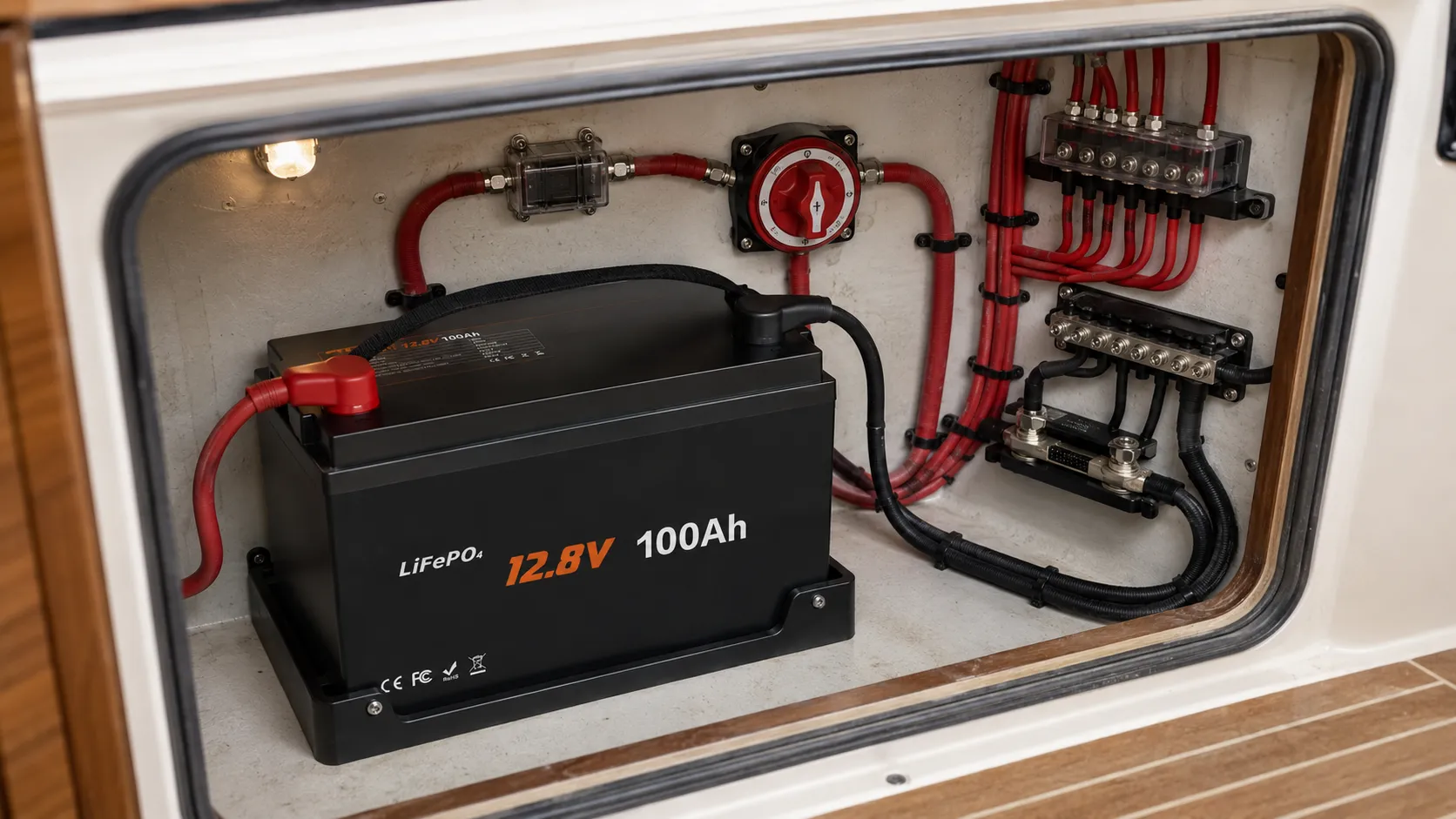

12V lithium marine battery installed in a dry fishing boat battery compartment
12V LiFePO4 Marine House-Power Installation

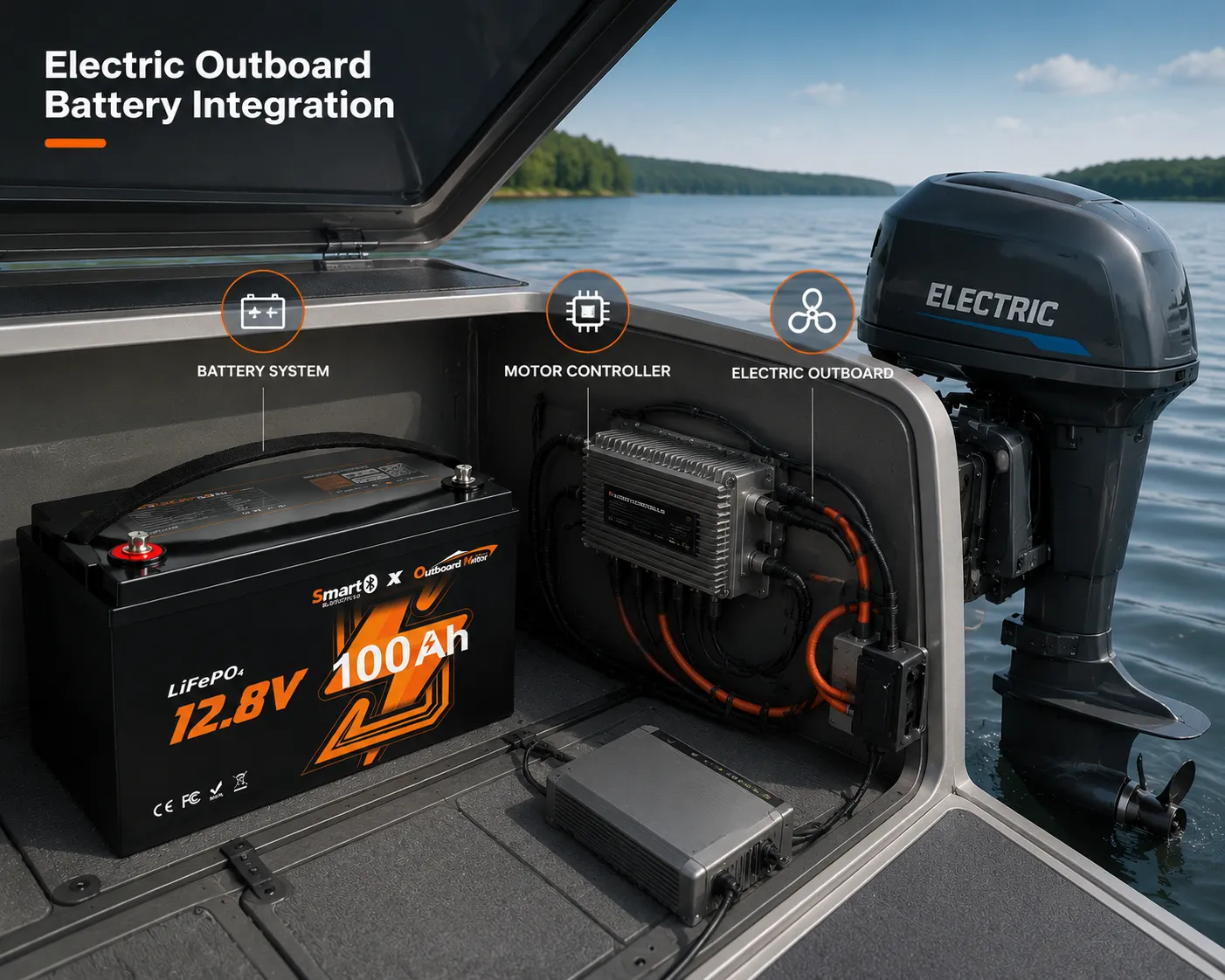

Built for Electric Outboard and Marine Deep-Cycle Systems

This 12V lithium marine battery is intended for correctly sized propulsion and house-power systems. It can supply compatible electric outboard motors, trolling motors, lighting, fish finders, navigation electronics and pumps without being connected to a fuel-engine starting circuit.

Electric Outboard Motors

For compatible 12V electric propulsion systems after voltage, continuous current and peak load are verified.

Trolling Motors

Stable deep-cycle power for compatible trolling motors on fishing boats and small craft.

Marine House Power

Energy for properly fused lighting, navigation equipment, pumps and other onboard DC loads.

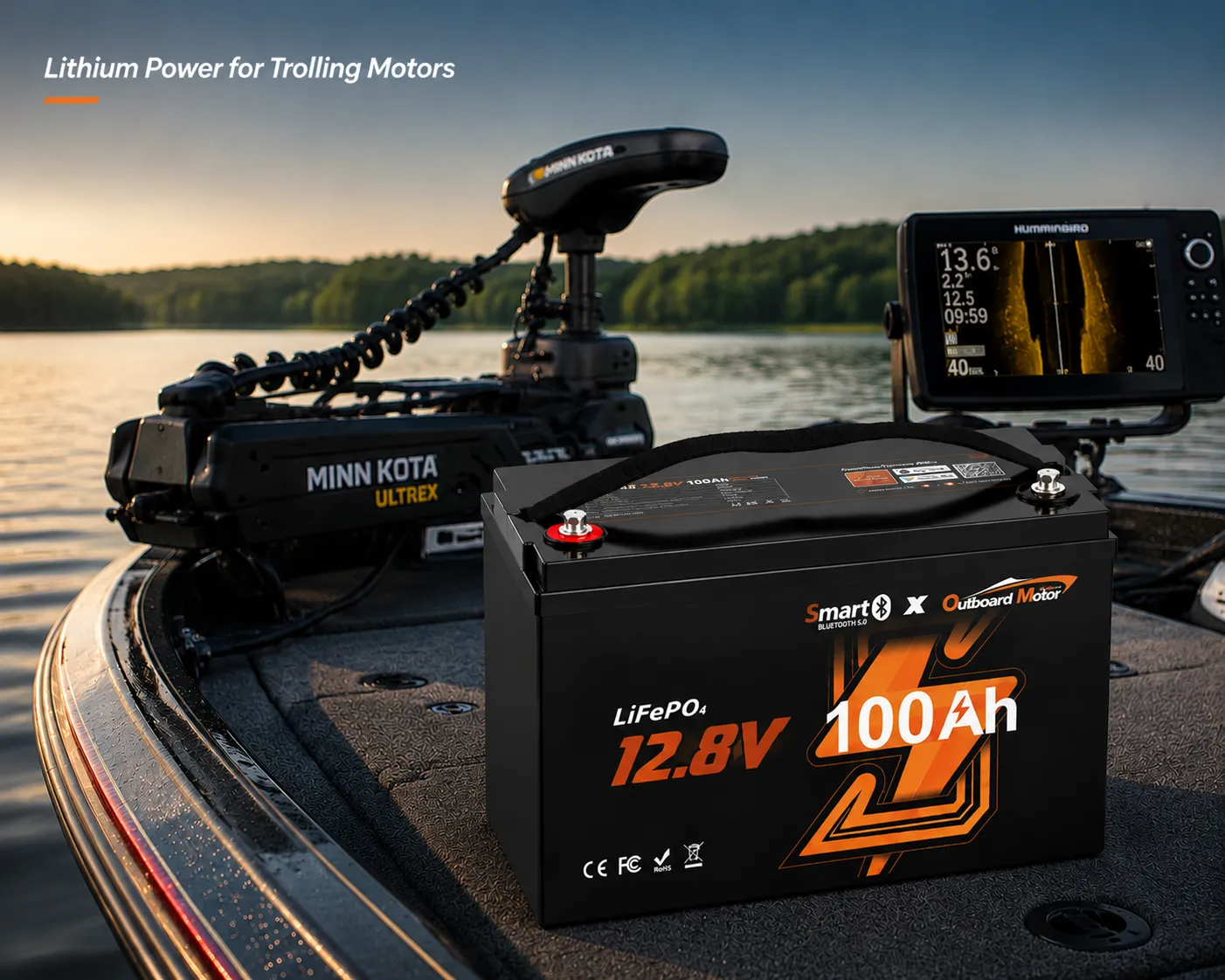

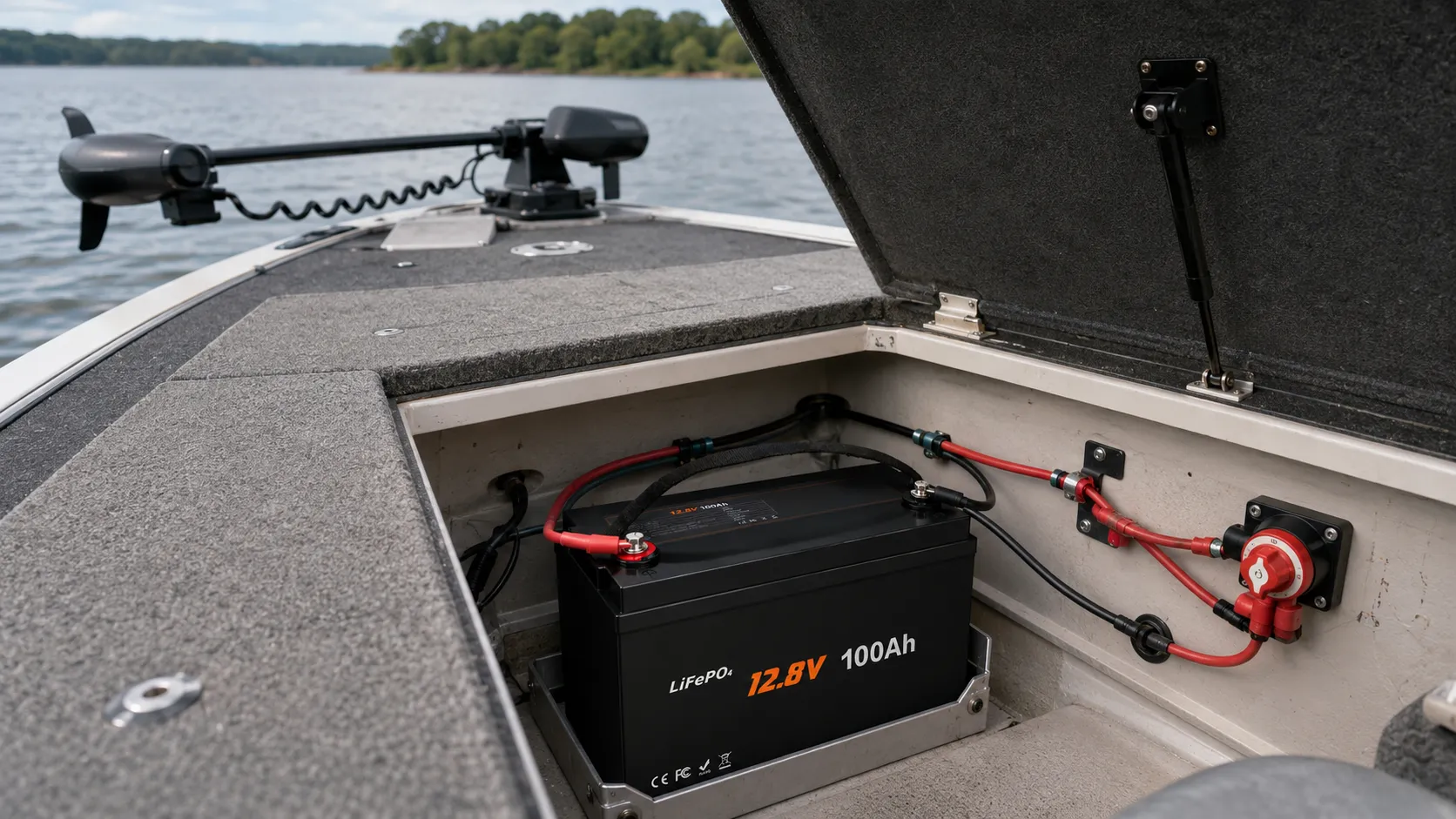

LiFePO4 trolling motor battery powering a 12V electric motor on a fishing boat
12V 100Ah LiFePO4 Battery for Trolling Motors

Current Delivery for Changing Motor Loads

Electric propulsion systems can draw short bursts of current during acceleration or changing water resistance. The 100A Smart BMS provides the following discharge limits for compatible loads.

Operating Condition Current Maximum Duration
Rated BMS Current 100A Continuous
Extended Surge 150A 180 seconds
Short Surge 300A 10 seconds
Instantaneous Surge 500A 1 second

Confirm motor voltage and current requirements before installation. These surge ratings do not make the battery suitable for engine cranking.

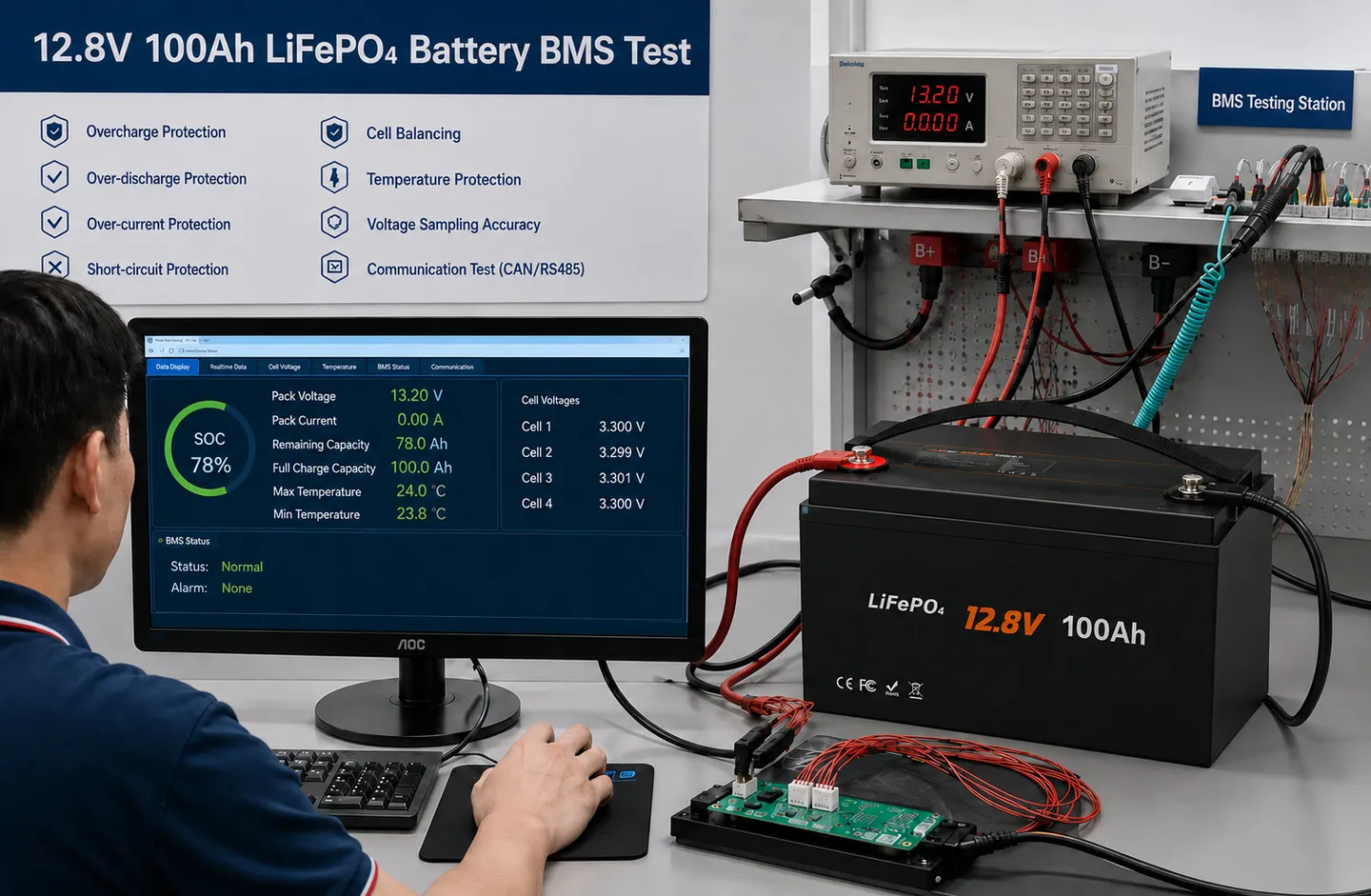

100A Smart BMS testing for a 12V 100Ah electric outboard motor battery
100A Smart BMS Testing for Marine Motor Loads

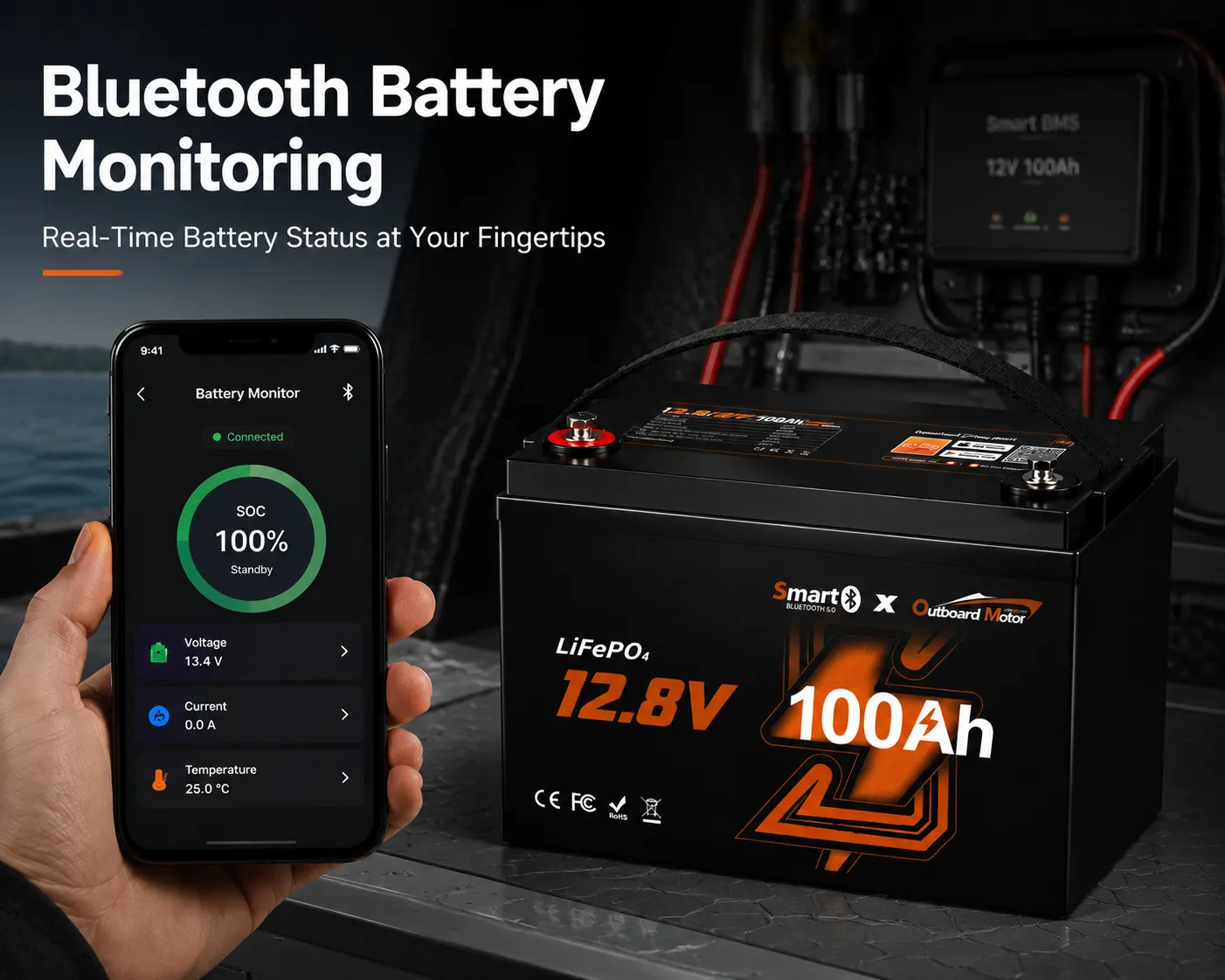

Bluetooth Battery Monitoring

Bluetooth monitoring lets boat owners, installers and service teams inspect the battery without opening the compartment during routine checks.

  • State of charge
  • Battery voltage
  • Charge and discharge current
  • Battery temperature
  • Operating and protection status

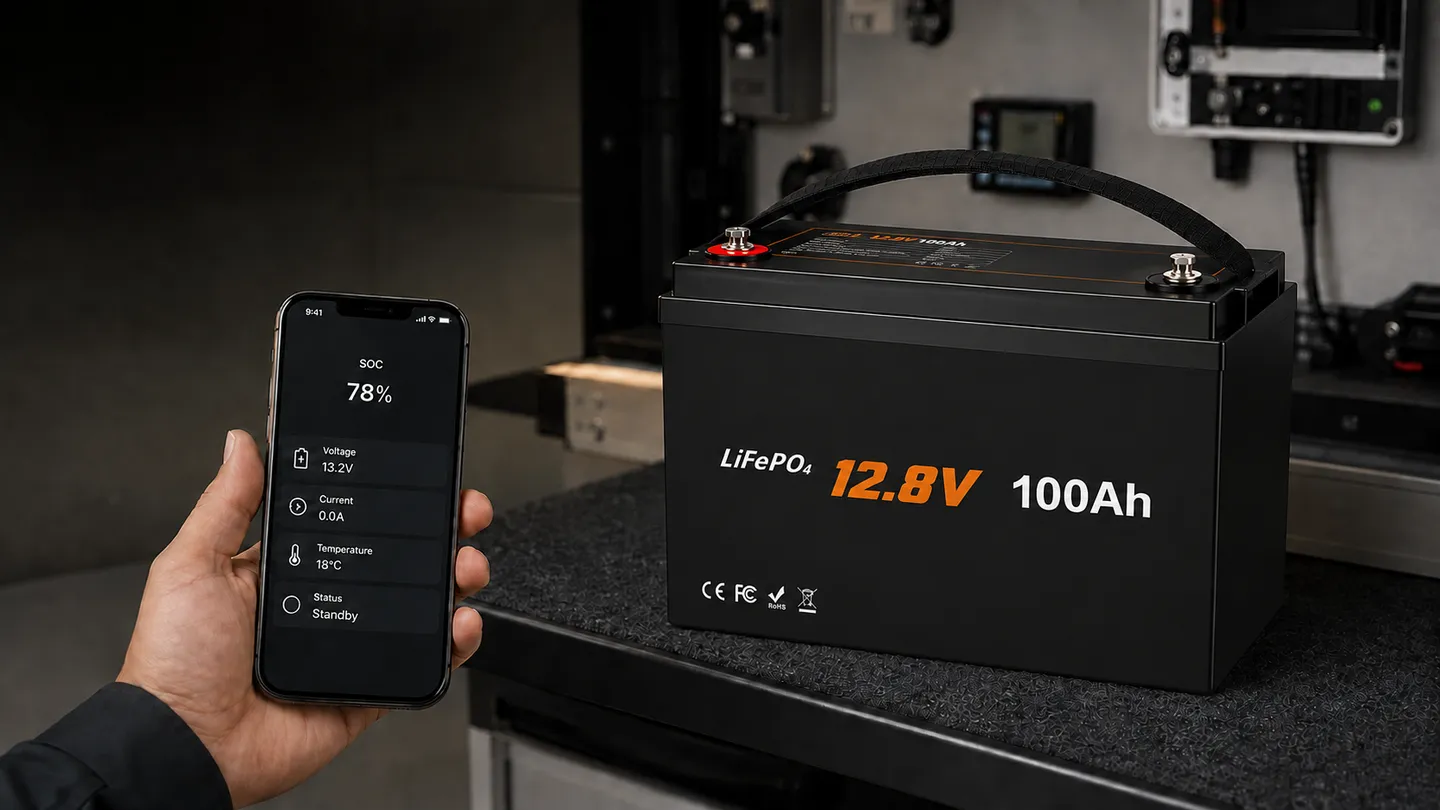

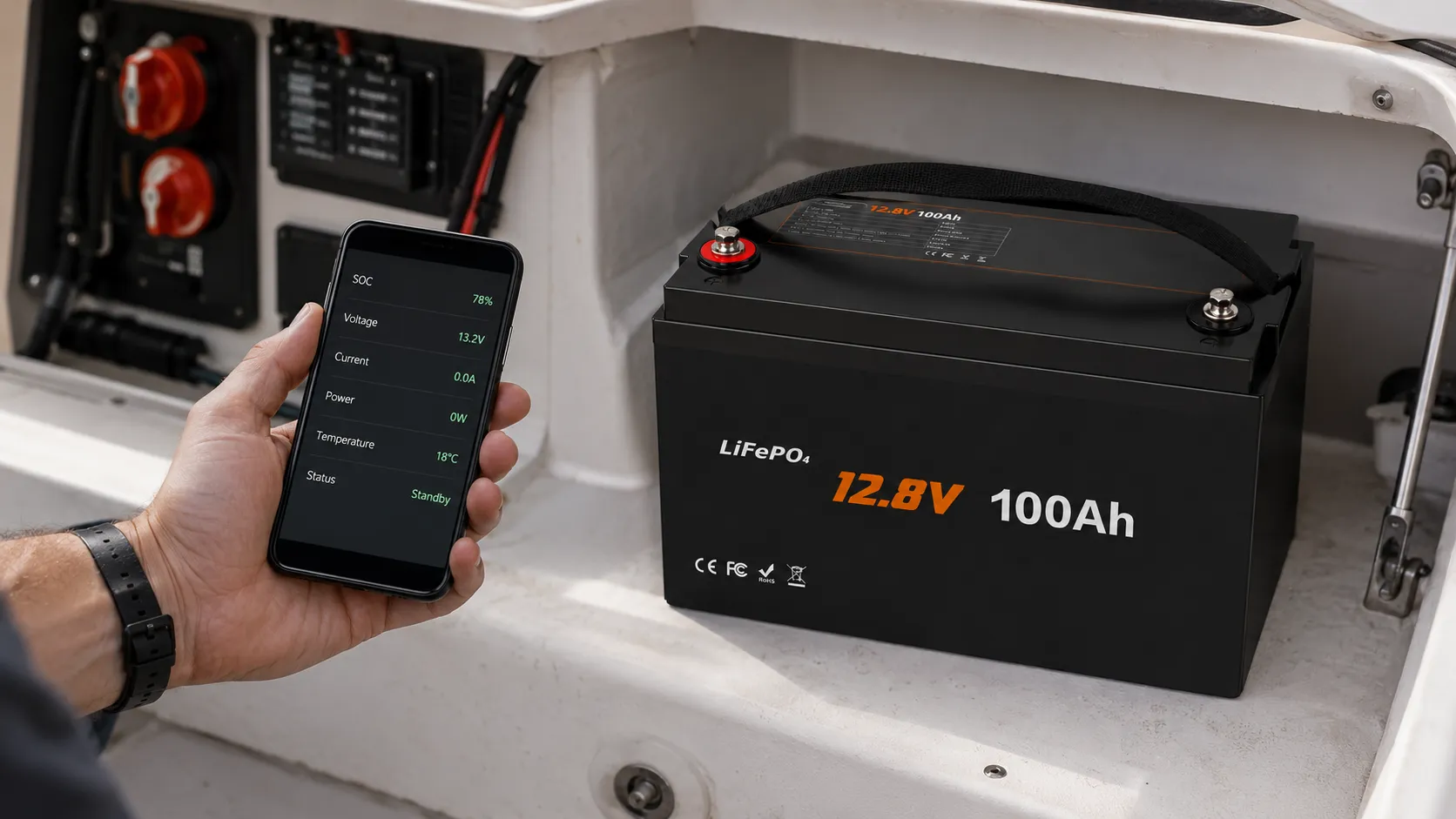

Bluetooth monitoring for a 12V 100Ah marine lithium battery
Bluetooth Monitoring for the 12V Marine Lithium Battery

Low-Temperature Charging Protection

The BMS stops charging below 0°C / 32°F and permits charging again after the cells reach approximately 5°C / 41°F. Low-temperature discharge protection operates below approximately −20°C / −4°F.

This model does not include self-heating. Install the battery in a dry, ventilated and secured compartment. An IP65 enclosure does not permit submersion or installation where seawater can collect.

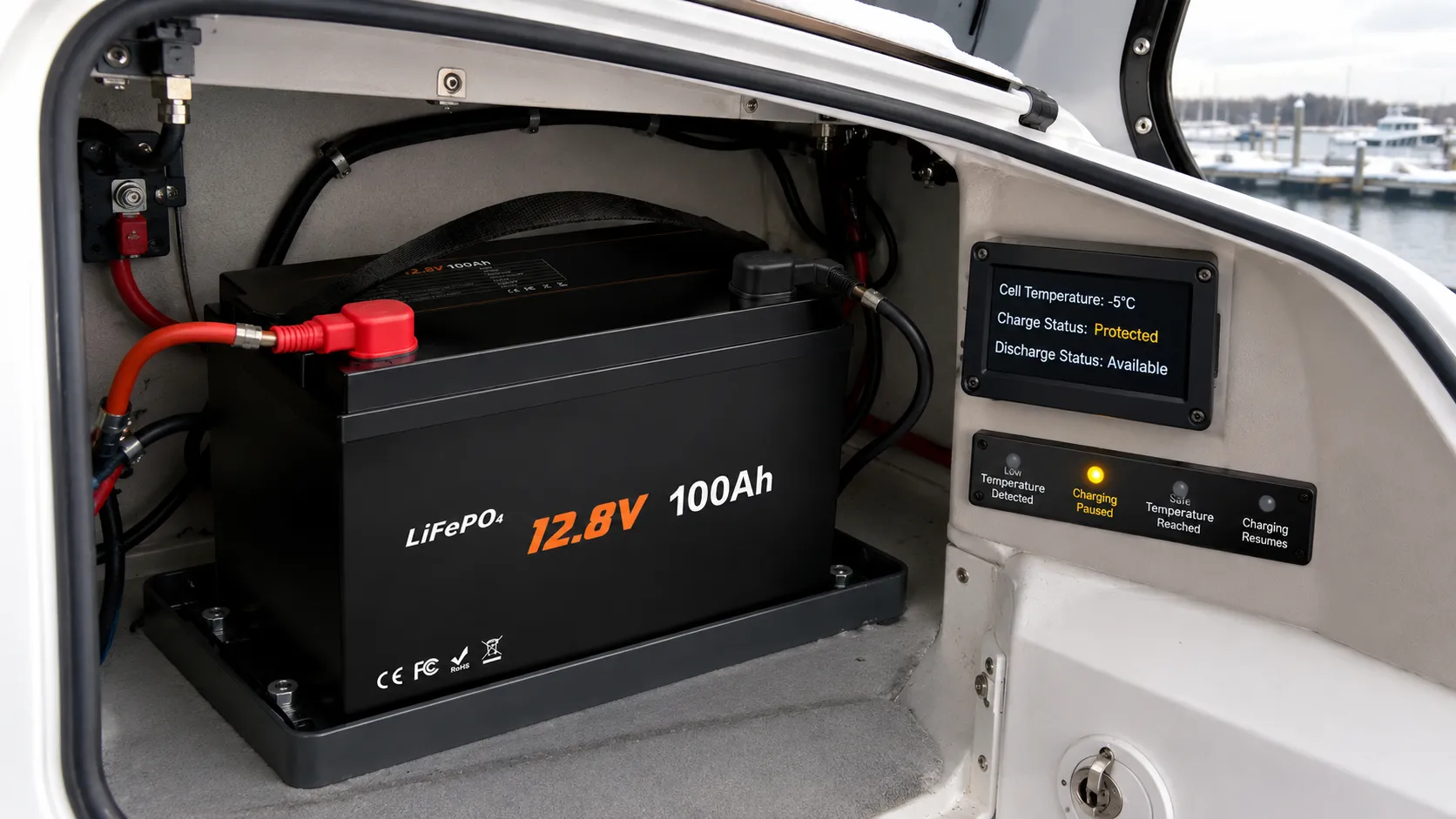

Low-temperature charging protection for a marine LiFePO4 battery in a dry boat compartment
Low-Temperature Charging Protection

Series and Parallel Battery Expansion

Up to five matched batteries may be connected in series and up to five in parallel when the confirmed BMS configuration, product manual and connected equipment support the planned battery bank.

Configuration Nominal Battery Bank Stored Energy
1 battery 12.8V 100Ah 1.28kWh
2 in series 25.6V 100Ah 2.56kWh
3 in series 38.4V 100Ah 3.84kWh
4 in series 51.2V 100Ah 5.12kWh
5 in series 64V 100Ah 6.40kWh

Use batteries of the same model, capacity, age and state of charge. Confirm the motor's actual operating-voltage range; a five-battery string is a 64V nominal bank, not a universal 60V solution.

12V 100Ah Marine LiFePO4 Battery Specifications

Battery Chemistry LiFePO4
Nominal Voltage / Capacity 12.8V / 100Ah
Stored Energy 1,280Wh
BMS / Continuous Output 100A Smart BMS / 1,280W
Maximum Charge Current 100A
Short-Duration Discharge 150A / 180s; 300A / 10s; 500A / 1s
Cycle Life 4,000 cycles at 100% DOD; 6,000 at 80% DOD; up to 15,000 at 60% DOD
Expansion Up to 5S5P, subject to the confirmed BMS configuration and product manual
Charge Method / Voltage CC/CV / 14.4V ± 0.2V
Recommended Charge Current 20A
Low-Temperature Charge Cut-Off Below 0°C / 32°F
Low-Temperature Charge Recovery At approximately 5°C / 41°F or above
Low-Temperature Discharge Cut-Off Below approximately −20°C / −4°F
Charge / Discharge Temperature 0°C to 50°C / −20°C to 60°C
Monitoring / Terminal Bluetooth / M8 bolts
Self-Heating Not included
Case / Dimensions Group 31 / 13 × 6.77 × 8.5 in (330 × 172 × 216 mm)
Weight / Housing Approx. 22.6 lb (10.3 kg) / ABS
Protection Class IP65
Fuel-Engine Starting Not permitted

Charging and Marine System Integration

Use a LiFePO4-compatible CC/CV charger set to 14.4V ± 0.2V. A 20A charge current is recommended for routine charging.

  • Connect shore or AC power through a LiFePO4 charger.
  • Connect solar panels through a correctly configured MPPT controller.
  • Use a suitable DC-to-DC charger for alternator charging.
  • Install the main fuse close to the positive terminal.
  • Use marine-grade cable, protected terminals and secure cable supports.

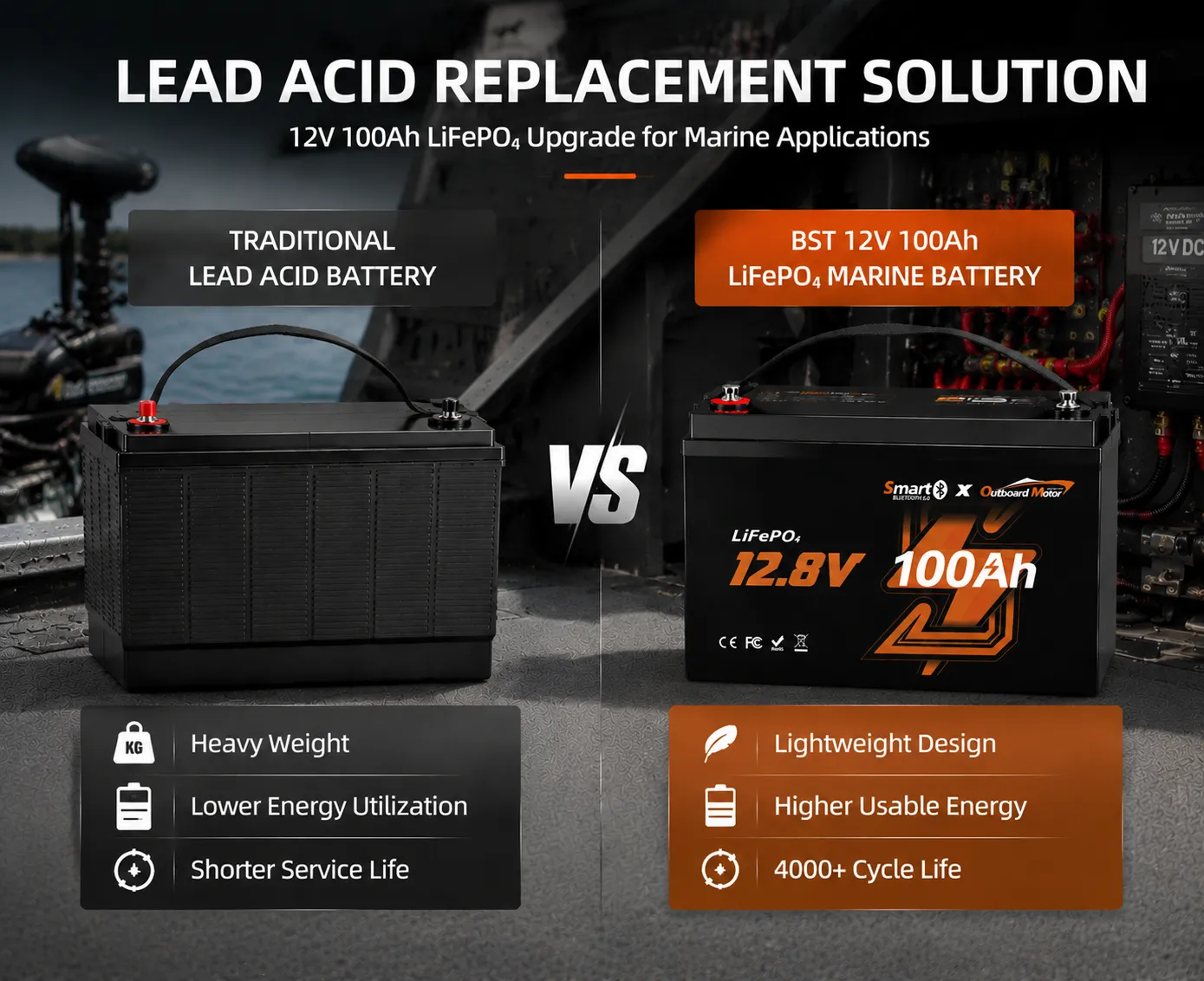

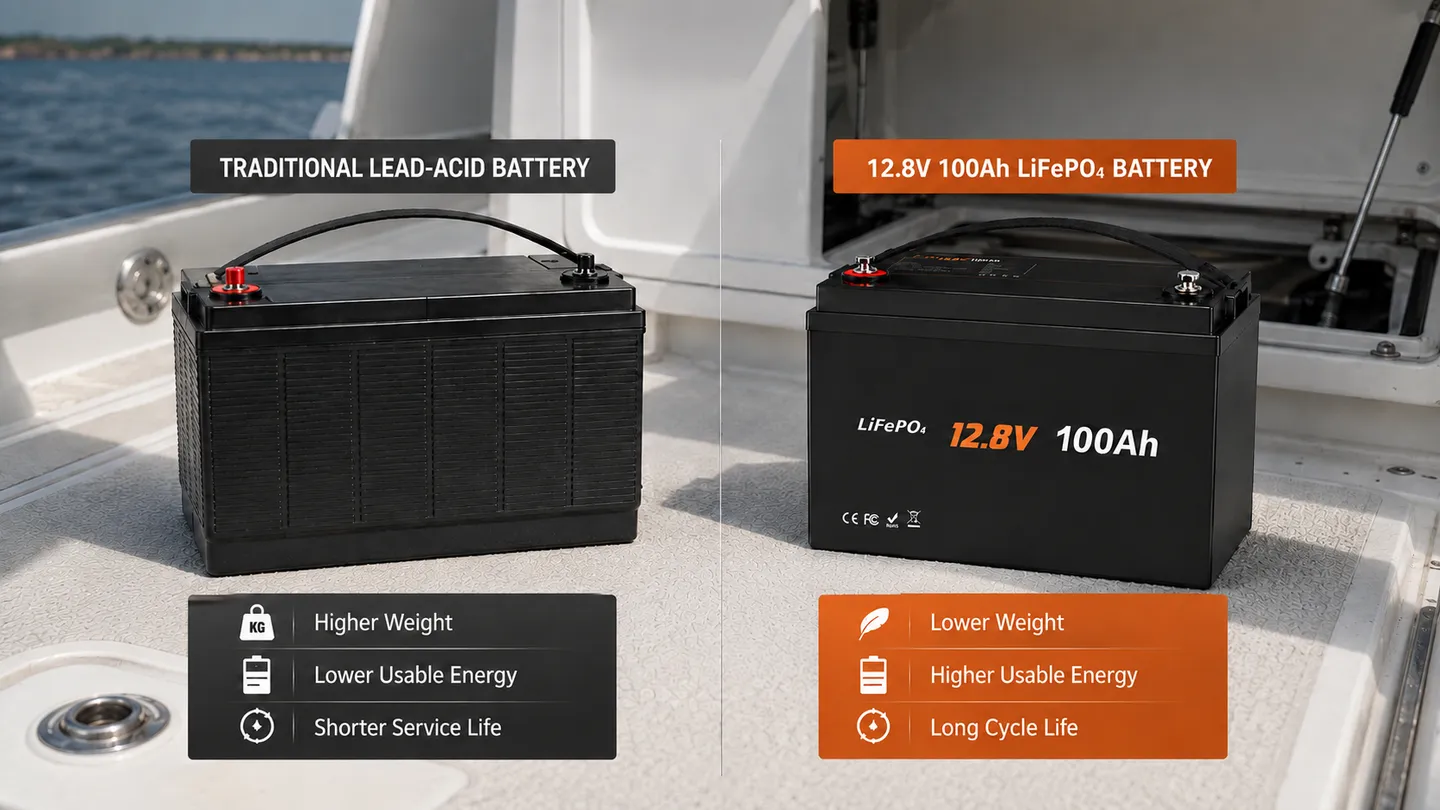

Group 31 Lead-Acid Replacement

The Group 31 case supports projects replacing a traditional Group 31 lead-acid or AGM battery with LiFePO4. Case size alone does not confirm electrical compatibility.

Before replacement, check the tray dimensions, charger profile, motor voltage, cable size, fuse rating, continuous current and maximum load.

Read our Lead-Acid to LiFePO4 Replacement Guide for charging, wiring, fuse sizing and conversion guidance.

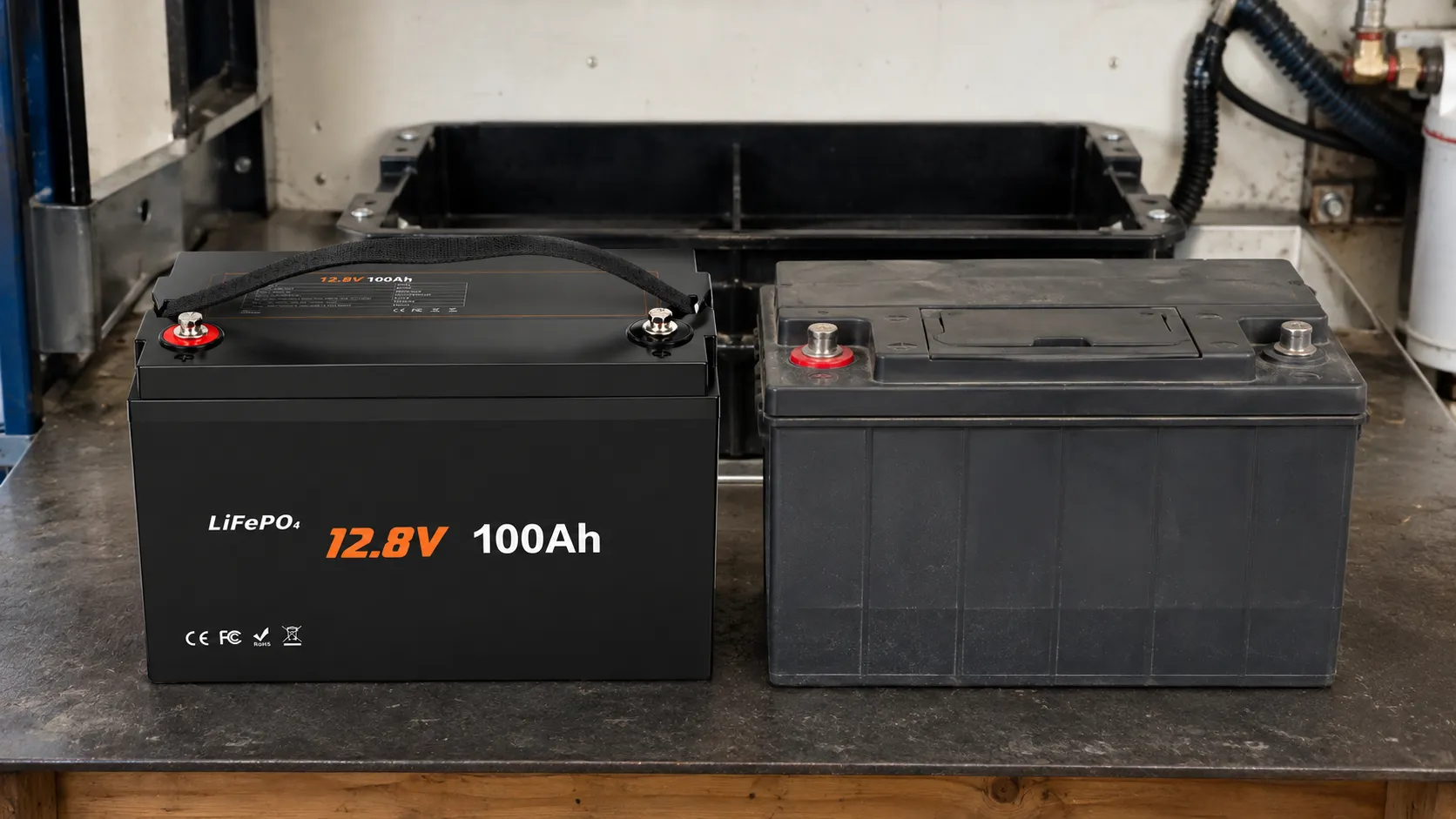

Group 31 LiFePO4 marine battery and lead-acid battery replacement comparison
Group 31 LiFePO4 Lead-Acid Replacement

Questions About This Battery

Can this 12V 100Ah battery power my trolling motor?

It can power a compatible 12V trolling motor when the motor's continuous and peak-current requirements remain within the battery limits. Check the motor label and manual before connecting it.

Can I use it with an electric outboard motor?

Yes, for a compatible electric outboard system. Confirm nominal voltage, maximum operating voltage, continuous current and acceleration current with the motor manufacturer. This battery is not intended to start a gasoline or diesel outboard.

Can it replace a Group 31 AGM or lead-acid battery?

It can replace compatible Group 31 deep-cycle batteries when physical fit, charger profile, load current, cable size and fuse protection are compatible.

What charger should I use?

Use a LiFePO4-compatible CC/CV charger with a charge voltage of 14.4V ± 0.2V. A 20A charger is recommended for routine charging. Solar panels require an MPPT controller, and alternator charging should use a suitable DC-to-DC charger.

What happens when the battery is too cold to charge?

The BMS stops charging below 0°C / 32°F and allows charging again after the cells reach approximately 5°C / 41°F. This protection is not a self-heating function.

Can I connect several batteries for a 24V, 36V, 48V or higher-voltage system?

Matching batteries may be connected in series within the confirmed 5S5P limit. Use batteries of the same model, capacity, age and state of charge, and confirm the motor or connected equipment's actual voltage range before installation.

Do you supply OEM or private-label marine batteries?

Yes. OEM and ODM options may include BMS settings, case design, terminal layout, communication, labels and packaging. Send the motor specification, installation dimensions, charging method and expected order quantity for an application review.

Factory-Direct Marine Battery Supply

OEM and Wholesale LiFePO4 Marine Batteries

We support boat builders, electric propulsion companies, marine installers, distributors and private-label brands with battery specification, BMS configuration, enclosure design, terminal options, labeling and production supply.

Send the motor voltage, continuous current, peak current, installation dimensions, charging equipment and expected order quantity for a compatibility review.
