12V 100Ah Group 31 LiFePO4 Battery for Trolling Motors

  • Group 31
SKU: 12V100AH-G31-TM-LFP
$169.00
Monitoring:

About this product

This 12V 100Ah Group 31 LiFePO4 trolling motor battery provides 1,280Wh of deep-cycle energy for compatible 12V trolling motors, fishing boats and onboard marine equipment. Its Group 31 case makes it a practical lithium replacement option for selected AGM and flooded lead-acid deep-cycle batteries when the battery tray, charging system and electrical requirements are compatible.

The integrated 100A BMS monitors charging, discharging, cell voltage and temperature. Low-temperature protection pauses charging below 0°C / 32°F, while the IP65 enclosure helps protect internal components from dust and water spray when the battery is correctly installed in a dry, secured marine compartment.

12.8V 100Ah 1,280Wh Group 31 100A BMS Low-Temperature Protection IP65

12V 100Ah Group 31 Trolling Motor Battery Highlights

  • 1,280Wh deep-cycle energy: Designed for compatible 12V trolling motors, marine electronics and onboard DC loads.
  • Group 31 case: Approximately 13 × 6.77 × 8.43 inches for compatible Group 31 battery compartments.
  • 100A BMS: Supports up to 100A continuous charge and discharge current.
  • Low-temperature protection: Charging pauses below 0°C / 32°F and recovers when the cells return to the approved temperature range.
  • IP65 enclosure: Helps protect against dust and water spray in correctly installed marine systems.
  • M8 terminals: Designed for secure cable-lug connections with suitable terminal protection.
  • Lead-acid replacement: Suitable for compatible Group 31 AGM and flooded lead-acid deep-cycle replacement projects.
  • Marine deep-cycle design: Intended for trolling motor and auxiliary marine power, not engine cranking.

Group 31 LiFePO4 Battery Size and Dimensions

This Group 31 LiFePO4 battery measures approximately 13 × 6.77 × 8.43 inches and weighs approximately 23.4 lb. Before replacing an existing battery, measure the tray, available height, hold-down points, terminal clearance and cable reach.

Group 31 describes the physical battery case category, not complete electrical compatibility. Motor voltage, maximum current, charger settings, BMS limits and required runtime must also match the battery specification.

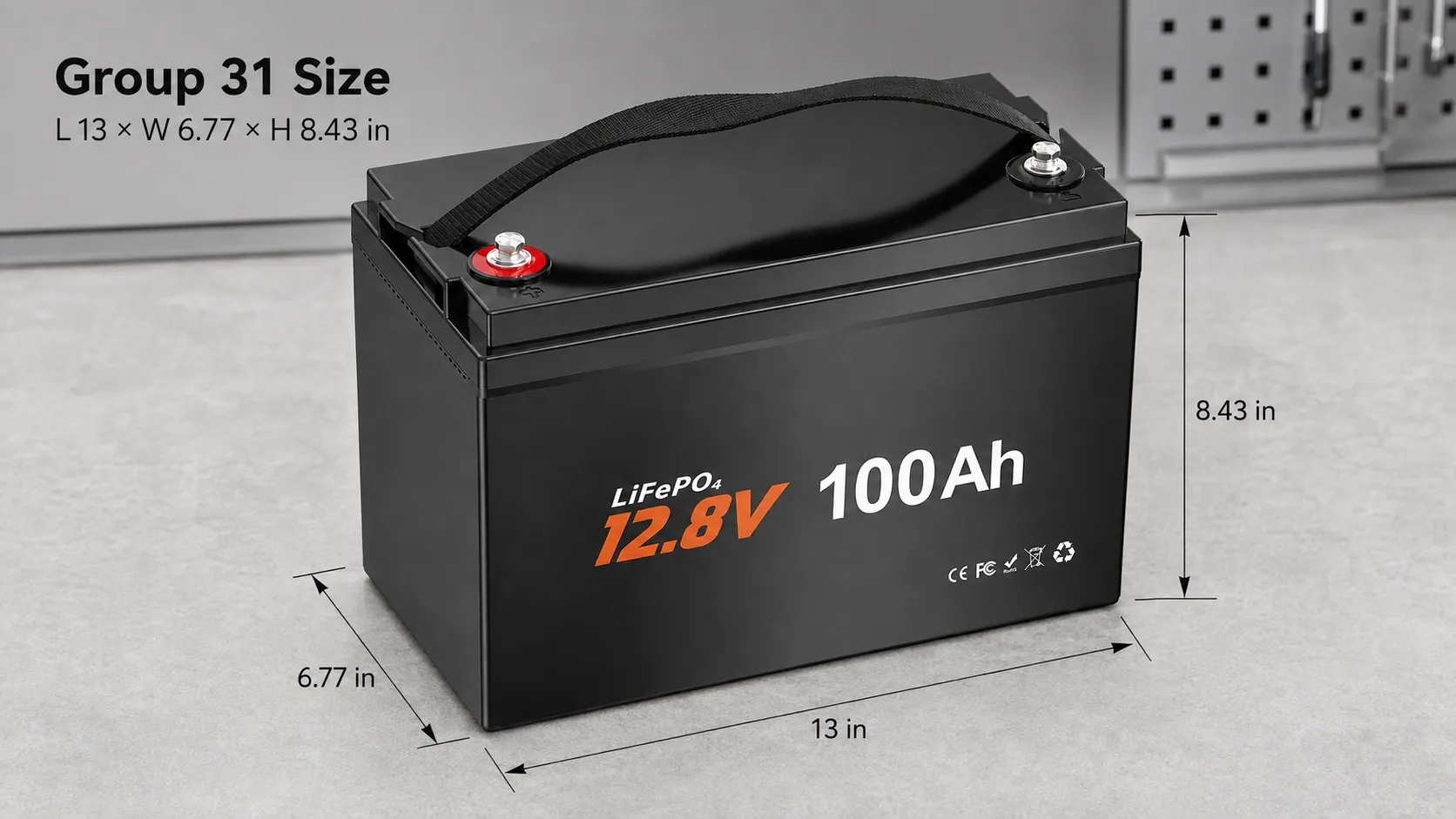

12V 100Ah Group 31 LiFePO4 trolling motor battery dimensions 13 x 6.77 x 8.43 inches
Group 31 battery dimensions help verify battery-tray space, terminal position, cable clearance and hold-down requirements before installation.

Not sure whether Group 31 is the correct size? See the Group 24 vs Group 27 vs Group 31 battery size guide .


12V 100Ah LiFePO4 Trolling Motor Battery for Fishing Boats

This battery is designed for compatible 12V trolling motors used on fishing boats, kayaks and small marine craft. Check the trolling motor operating voltage, normal current, maximum current and expected runtime before selecting the battery.

A safe marine installation should include a correctly rated fuse or circuit breaker close to the positive terminal, a battery disconnect switch, marine-grade cables, properly crimped lugs and insulated terminal covers.

  • Compatible with suitable 12V trolling motor systems
  • Up to 100A continuous discharge current
  • Stable LiFePO4 voltage during deep-cycle operation
  • Suitable for fishing boats and small marine power systems
  • Not intended for engine cranking unless separately tested and approved

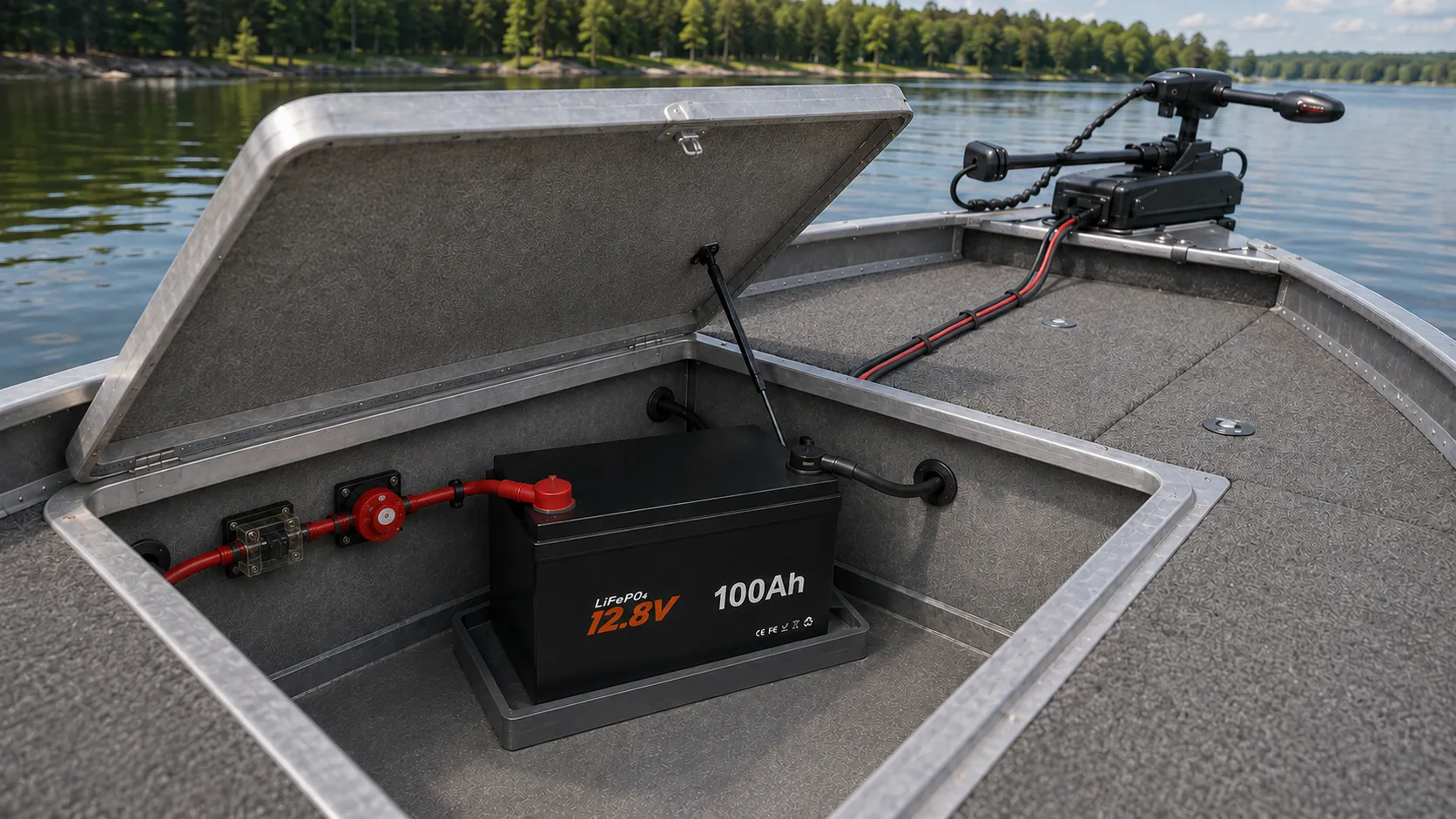

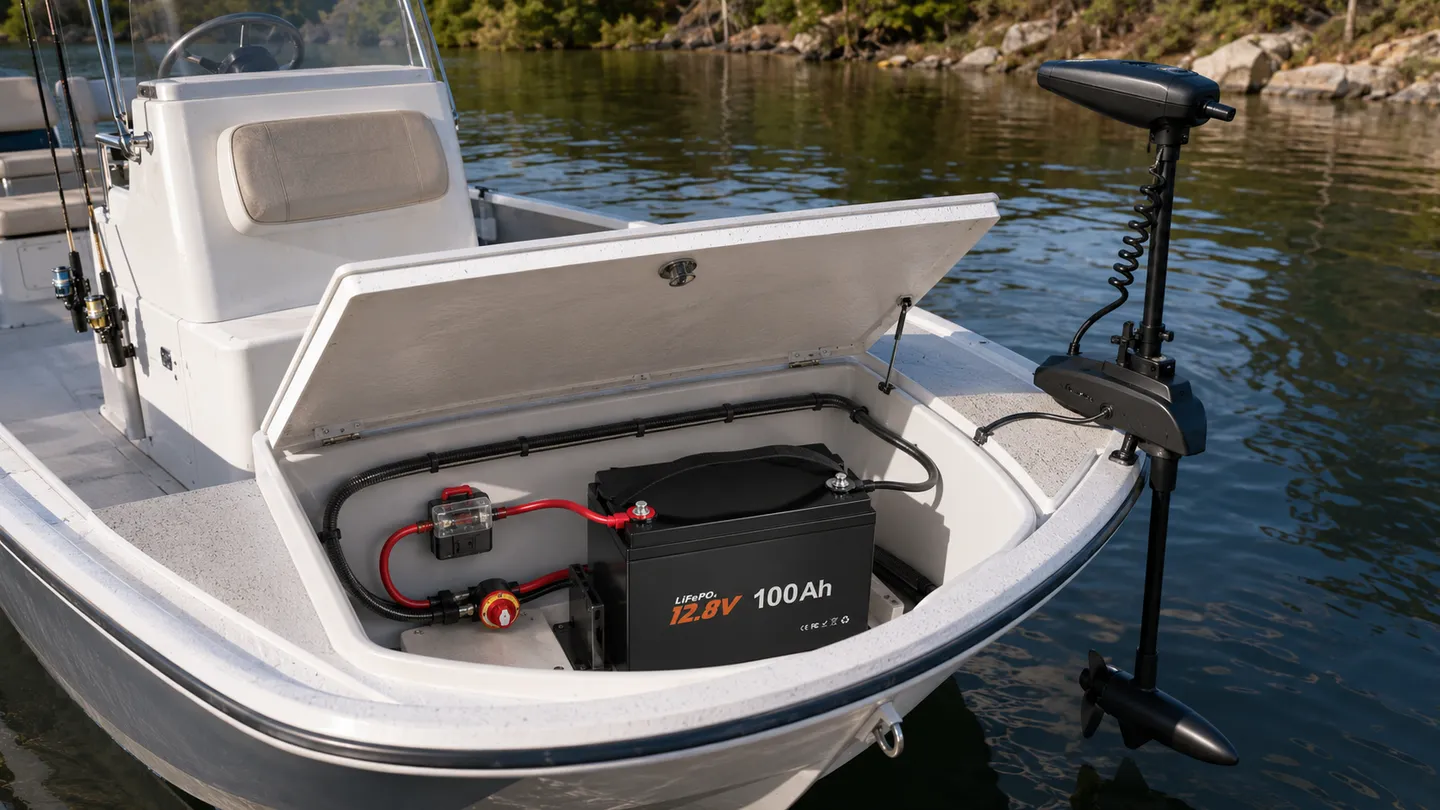

12V 100Ah Group 31 LiFePO4 battery installed for trolling motor fishing boat power
Protected 12V trolling motor battery installation with fuse protection, battery disconnect and secured marine-grade cabling.

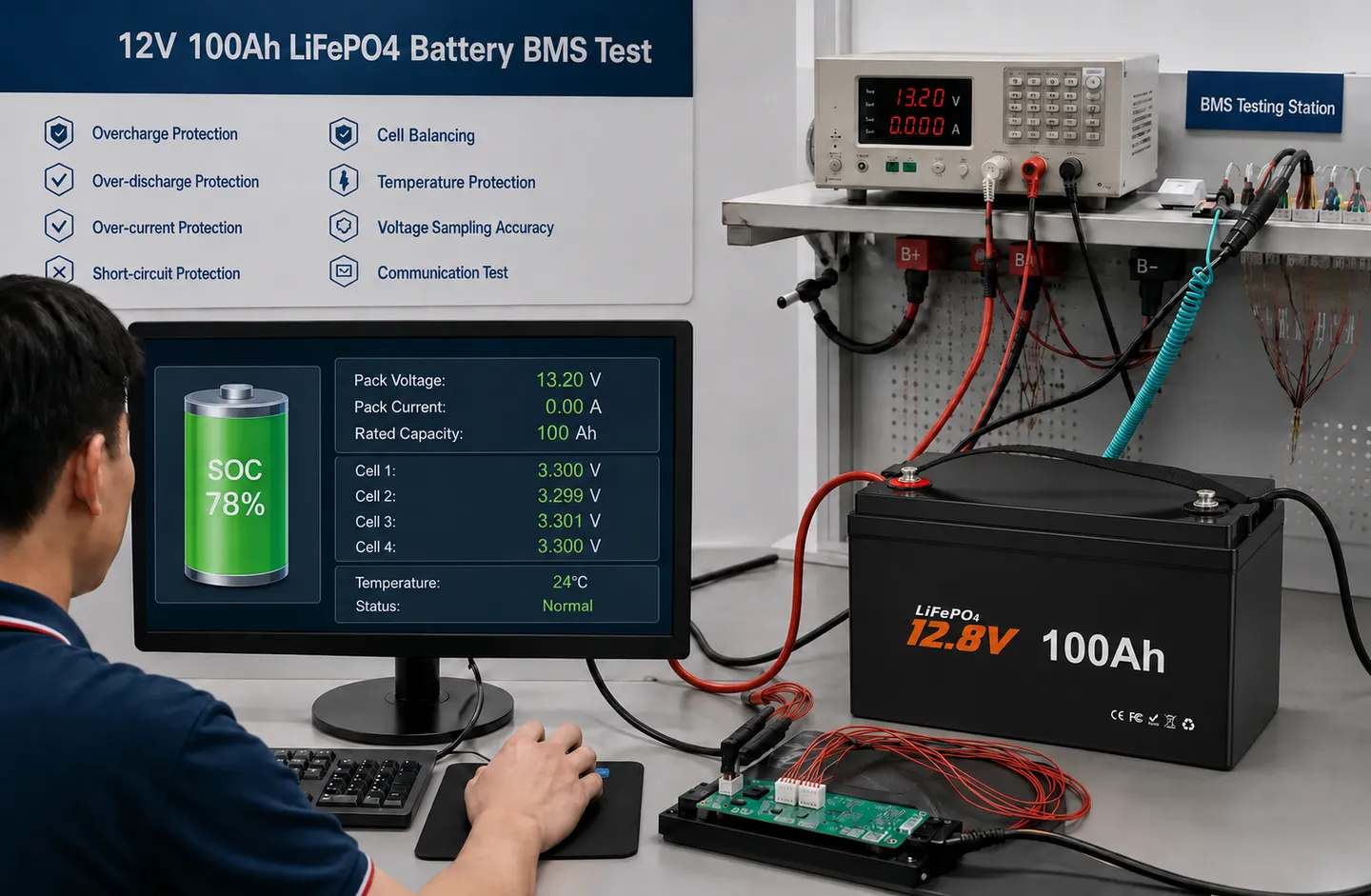

100A BMS Protection for Trolling Motor and Marine Loads

The integrated 100A battery management system monitors cell voltage, current and temperature during charging and discharging. It protects the battery when operating conditions move outside approved limits.

  • Overcharge protection
  • Over-discharge protection
  • Overcurrent protection
  • Short-circuit protection
  • High-temperature protection
  • Low-temperature protection
  • Cell-voltage monitoring
  • Cell balancing

The 100A continuous BMS rating does not automatically make the battery compatible with every trolling motor or electric propulsion system. Confirm normal operating current and maximum load before installation.


Low-Temperature Charging Protection for Marine Use

When cell temperature falls below 0°C / 32°F, the BMS pauses charging to protect the battery. Charging can resume after the cells reach approximately 5°C / 41°F.

This model includes low-temperature charging protection but does not include self-heating. For winter use, keep the battery in a dry, protected compartment and use LiFePO4-compatible charging equipment.

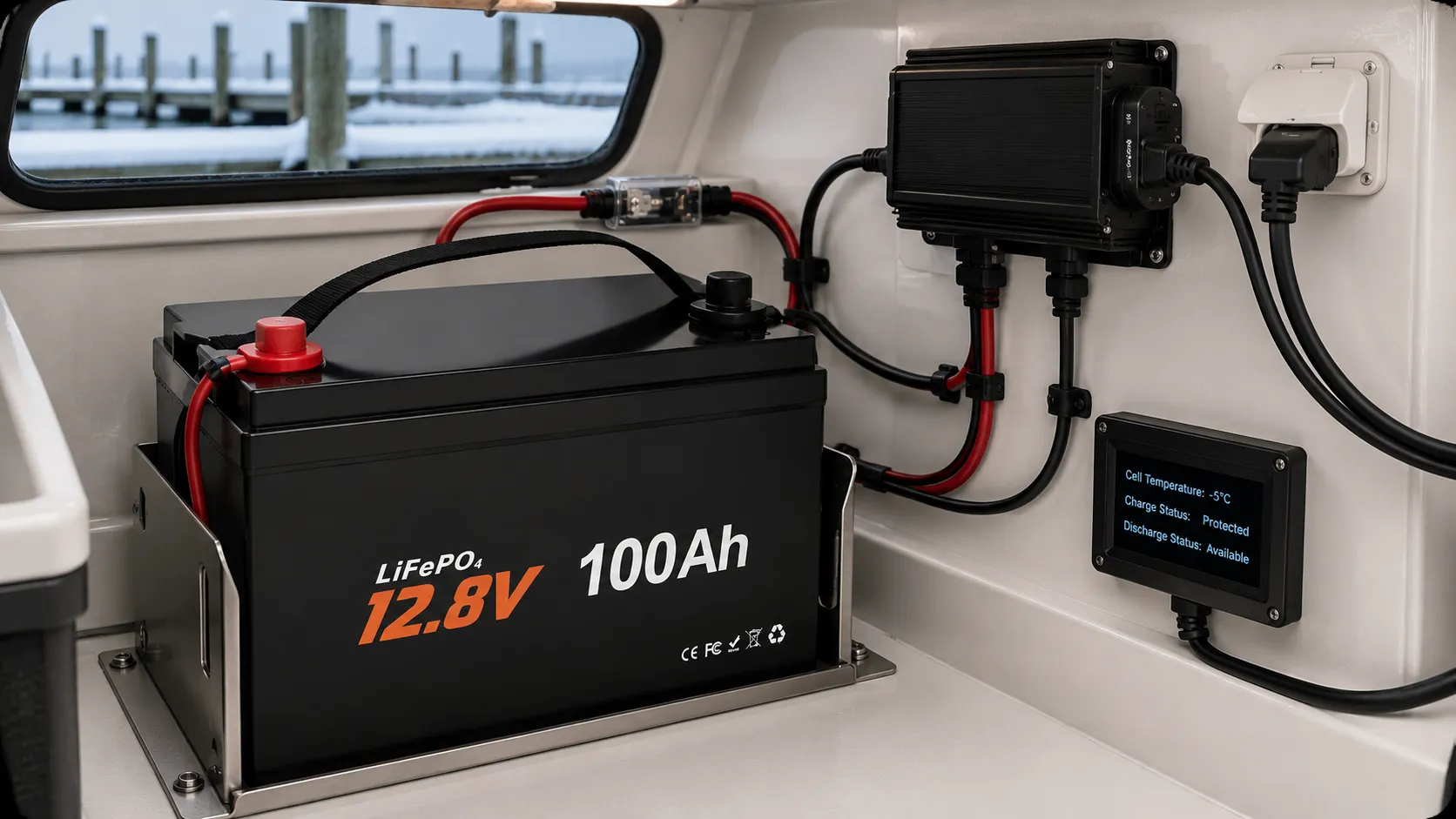

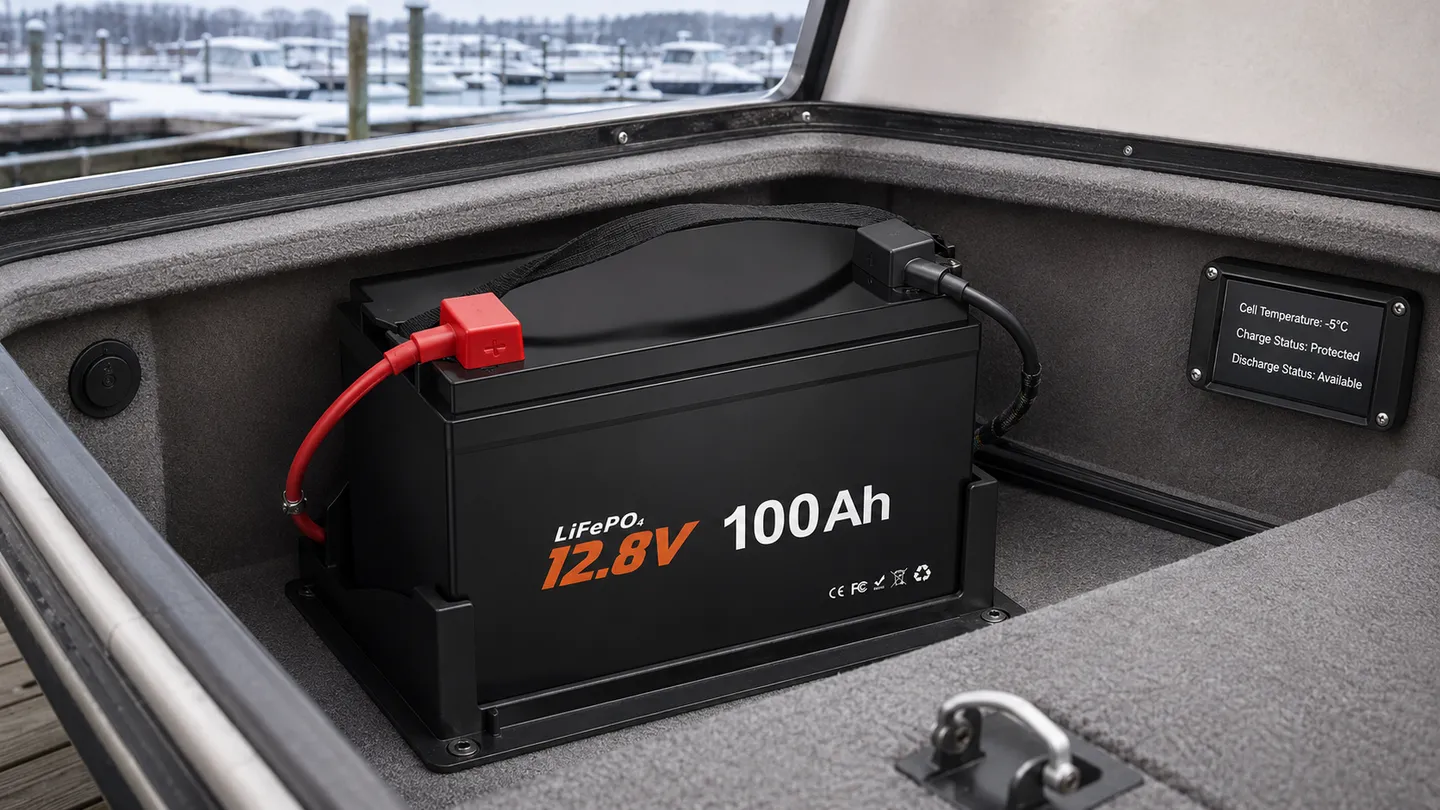

12V 100Ah Group 31 trolling motor battery low-temperature charging protection
Low-temperature protection pauses charging below 0°C / 32°F to help protect the LiFePO4 cells.

Group 31 AGM and Lead-Acid Battery Replacement

This Group 31 LiFePO4 battery can replace a compatible AGM or flooded lead-acid deep-cycle battery when the mechanical and electrical requirements match. Do not select a replacement using voltage and case size alone.

Before installation, confirm:

  • Nominal system voltage and required capacity
  • Battery tray dimensions and hold-down arrangement
  • Terminal position and cable reach
  • Continuous and peak-current requirements
  • Trolling motor voltage and maximum current
  • Charger voltage and charging profile
  • Cable size, fuse rating and disconnect requirements
  • Operating temperature and approved system configuration

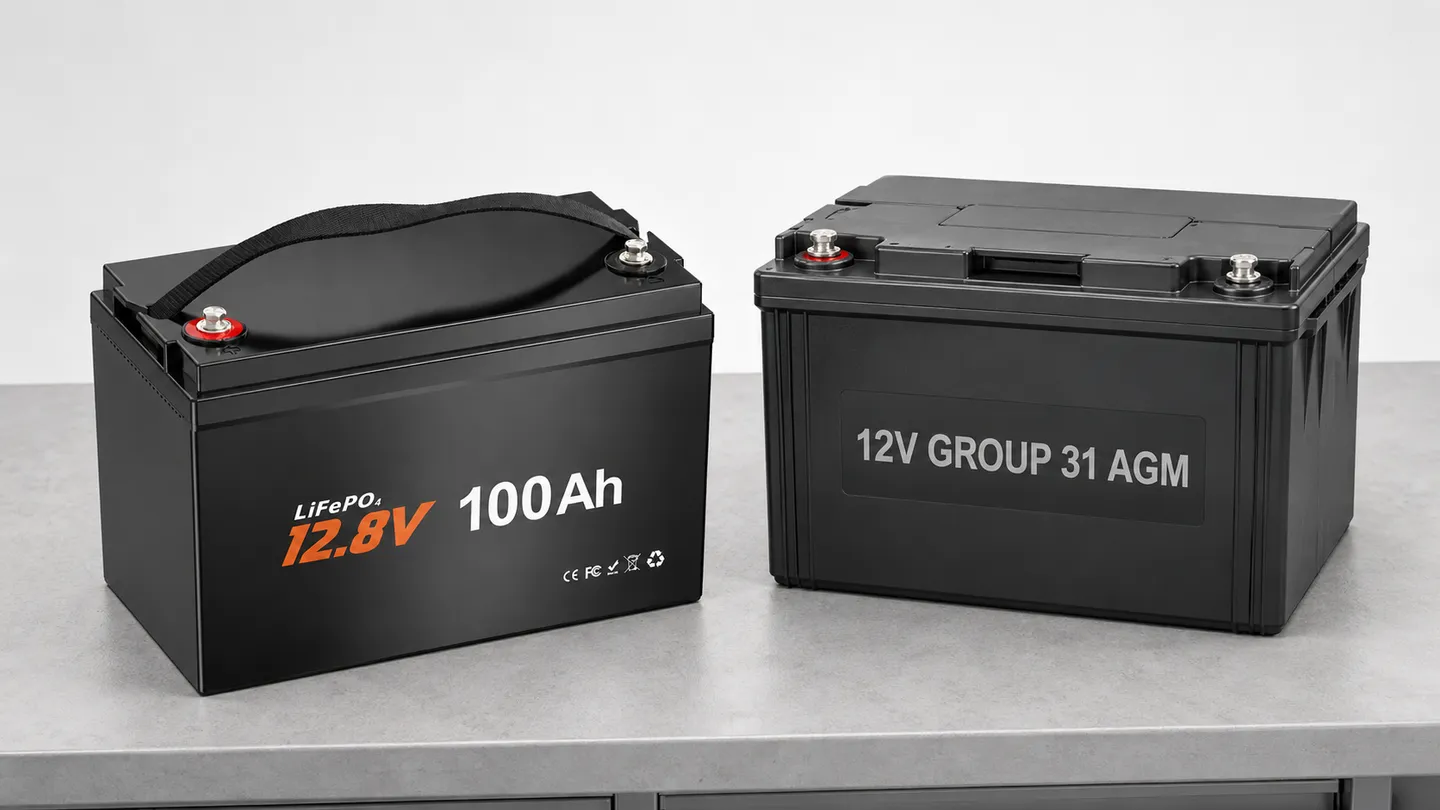

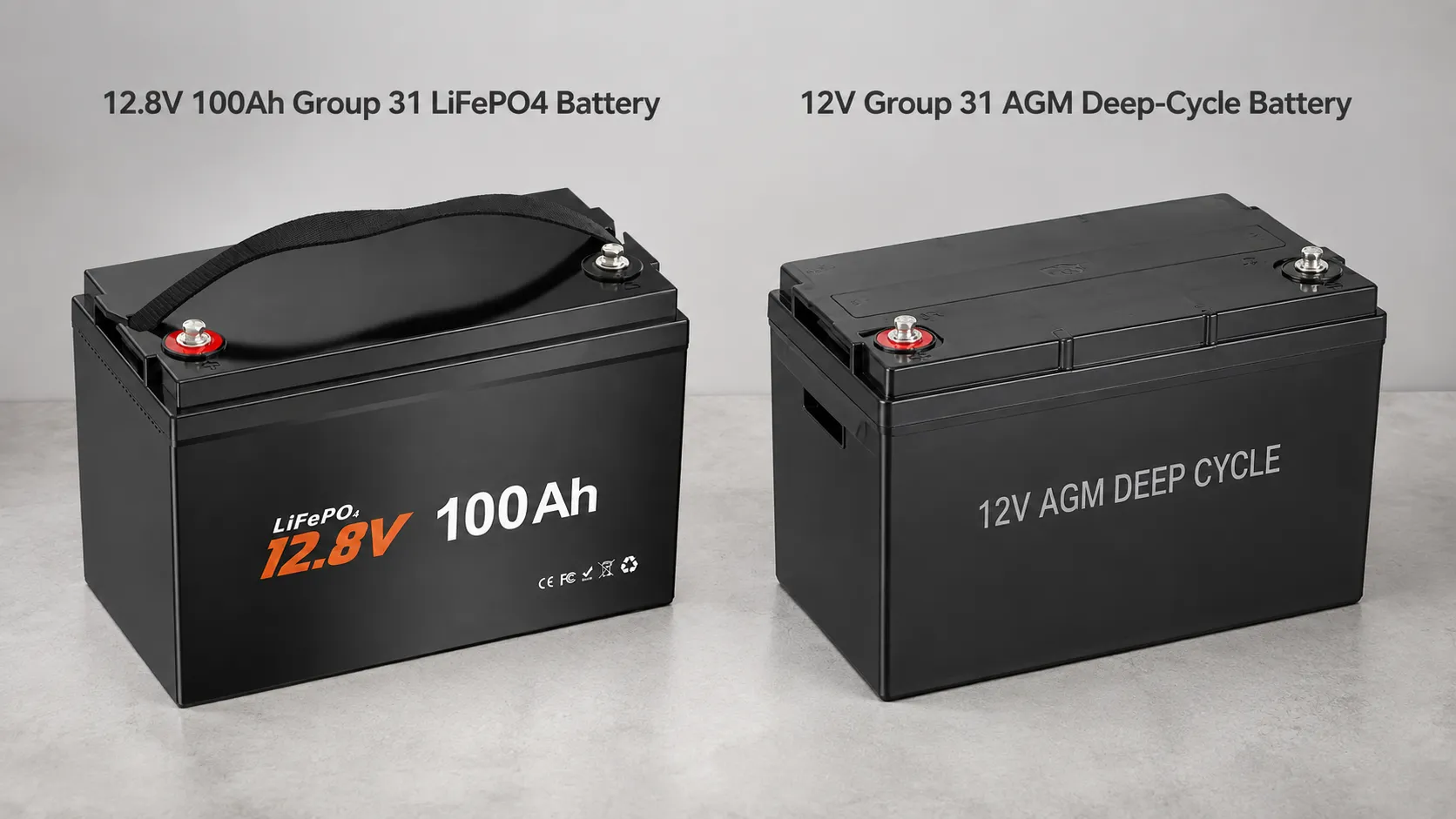

Group 31 LiFePO4 trolling motor battery vs AGM deep-cycle battery replacement comparison
Group 31 LiFePO4 and AGM batteries should be compared by dimensions, terminal layout, charging compatibility and current requirements.

Read our Lead-Acid to LiFePO4 Replacement Guide for charger compatibility, DC-to-DC charging, cable sizing, fuse protection and lead-acid replacement system checks.


How to Charge a 12V 100Ah LiFePO4 Trolling Motor Battery

Use a charger or charge controller with a LiFePO4-compatible CC/CV profile. Charging voltage and current should follow the battery datasheet and the requirements of the connected marine system.

Charging Parameter Specification
Charge Method CC/CV
Charge Voltage 14.4V ± 0.2V
Recommended Charge Current 20A
Maximum Continuous Charge Current 100A
Charge Temperature 0°C to 50°C / 32°F to 122°F

Suitable charging arrangements include:

  • LiFePO4-compatible AC charger
  • Solar panel through a suitable MPPT charge controller
  • Alternator through a compatible DC-to-DC charger
  • Generator through a suitable inverter-charger or lithium battery charger

Do not connect a solar panel, alternator, generator or AC power source directly to the battery without appropriate charge-control equipment.


12V 100Ah Group 31 LiFePO4 Trolling Motor Battery Specifications

Parameter Specification
Battery Chemistry LiFePO4
Nominal Voltage 12.8V
Rated Capacity 100Ah
Nominal Energy 1,280Wh
BMS 100A
Maximum Continuous Output Power 1,280W
Maximum Continuous Charge Current 100A
Maximum Continuous Discharge Current 100A
Peak Discharge Current Confirm according to approved production specification
Charge Method CC/CV
Charge Voltage 14.4V ± 0.2V
Recommended Charge Current 20A
Charge Temperature 0°C to 50°C / 32°F to 122°F
Discharge Temperature −20°C to 60°C / −4°F to 140°F
Storage Temperature −10°C to 50°C / 14°F to 122°F
Low-Temperature Charge Cut-Off Below 0°C / 32°F
Charging Recovery At or above 5°C / 41°F
Low-Temperature Discharge Cut-Off Below −20°C / −4°F
Terminal Type M8 bolts
Dimensions 13 × 6.77 × 8.43 in
Case Size Group 31
Weight Approximately 23.4 lb
Housing Material ABS
Protection Rating IP65
Bluetooth Not included
Self-Heating Not included

Technical Documents for the 12V 100Ah Group 31 Battery

Download the controlled product datasheet before selecting a charger, planning cable and fuse sizes, or installing the battery in a trolling motor or marine electrical system.

12V 100Ah Group 31 Battery Datasheet V1.1

Electrical specifications, charging limits, operating temperatures, dimensions, weight, terminal type and application notes.

Download Group 31 LiFePO4 Battery Datasheet

Confirm that the model number and document revision match the battery supplied with your order.


Series and Parallel Connection Requirements

Matching batteries may be connected in series or parallel only when the battery model and BMS are approved for the required arrangement.

  • Series connection: Increases system voltage while capacity remains 100Ah.
  • Parallel connection: Increases total capacity while nominal voltage remains 12.8V.
  • Approved configuration: Confirm the permitted series and parallel count in the order-specific datasheet or installation manual.

Use batteries of the same model, capacity, BMS version, age and state of charge. Parallel branches should use equal-length cables and suitable branch protection.


Marine, Trolling Motor and Deep-Cycle Applications

  • Compatible 12V trolling motors
  • Fishing boats and small marine craft
  • Fish finders, sonar and navigation electronics
  • Boat lighting, pumps and onboard DC loads
  • Compatible Group 31 lead-acid replacement projects
  • Portable and off-grid 12V power systems

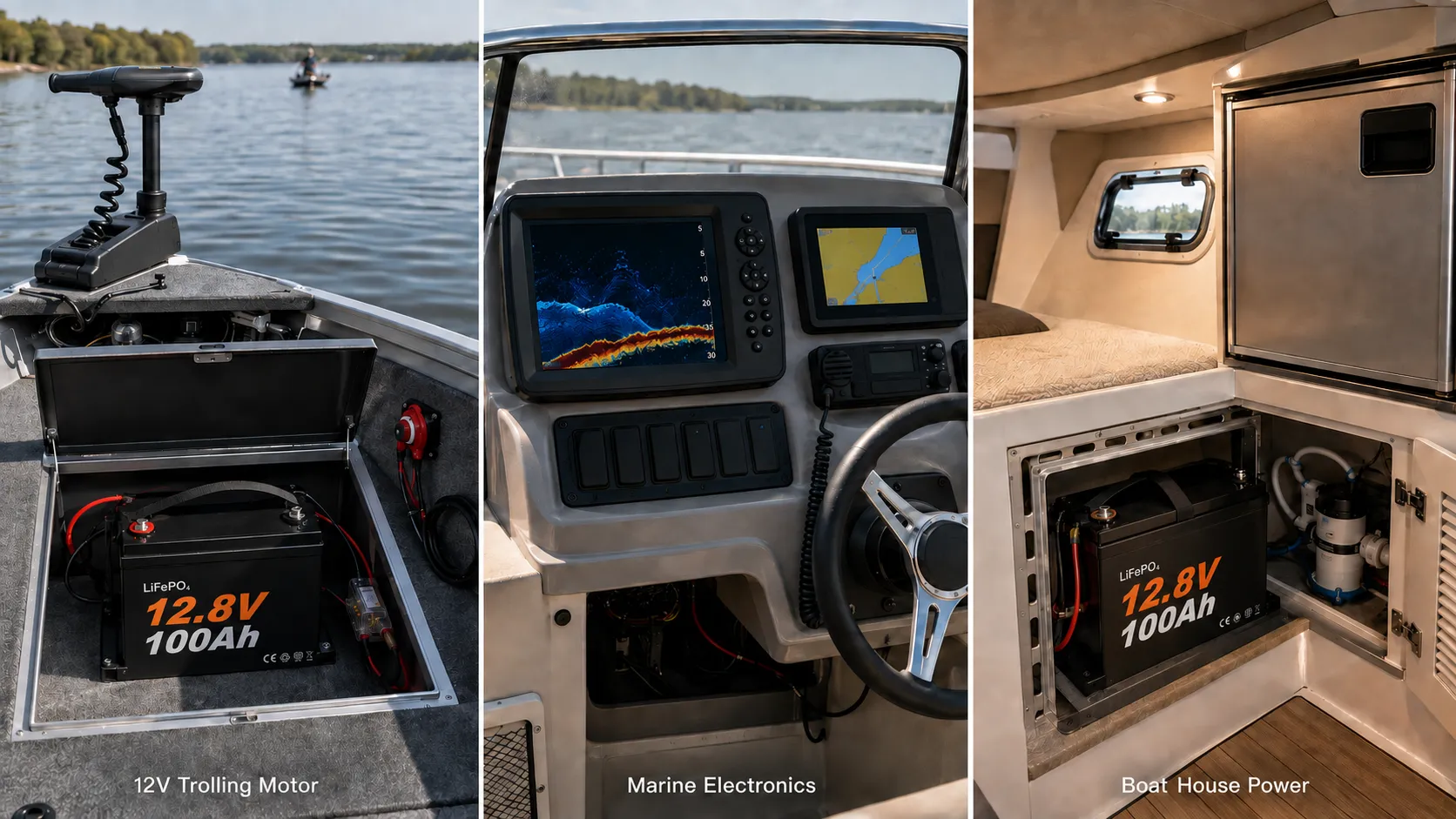

12V 100Ah Group 31 LiFePO4 trolling motor battery for fishing boat and marine electronics
Group 31 LiFePO4 battery applications include compatible trolling motors, marine electronics and onboard deep-cycle DC loads.

Explore our Marine LiFePO4 Battery Solutions for trolling motors, onboard electronics, house-power systems and custom marine projects.


12V 100Ah Group 31 Trolling Motor Battery FAQ

Is this battery suitable for a 12V trolling motor?

It is suitable for compatible 12V trolling motors when the motor's normal current, maximum current and required runtime remain within the battery's approved operating limits.

Can it replace a Group 31 lead-acid battery?

It can replace a compatible Group 31 deep-cycle battery when the tray, terminal position, voltage, current requirement and charging equipment match.

Can this battery start a boat engine?

No. This is a deep-cycle battery, not an engine-starting battery. Starting applications require a battery with separately tested starting-current ratings.

Can I use an existing lead-acid charger?

Only if the charger's voltage, current and charging profile are compatible with the LiFePO4 battery specification.

Does this model include Bluetooth?

No. This version does not include Bluetooth monitoring.

Does this Group 31 battery include self-heating?

No. The battery includes low-temperature charging protection but does not include self-heating.

How long will a 100Ah lithium battery run a trolling motor?

Runtime depends on trolling motor current draw, speed setting, boat conditions and other connected loads. Divide usable battery capacity by the approximate average current draw to estimate operating time.

Can Group 31 LiFePO4 batteries be connected in series or parallel?

Only when the specific battery model and BMS are approved for the planned series or parallel configuration. Follow the limits in the controlled datasheet or installation manual.

Need Help Matching a Group 31 Battery to Your Trolling Motor?

Send the trolling motor model, required voltage, maximum current, expected runtime and battery-compartment dimensions. The application can then be reviewed against the battery's BMS, size and charging requirements.
