12V 100Ah Group 31 LiFePO4 Battery for Trolling Motors
$169.00
This 12V 230Ah LiFePO4 RV battery provides 2,944Wh of deep-cycle energy for RV house-power, camper van, marine and compatible off-grid systems. The integrated 200A BMS supports up to 2,560W of continuous output while providing protection against over-voltage, under-voltage, over-current, short-circuit and abnormal temperature conditions.
Designed for lead-acid replacement and new lithium battery installations, this 12.8V 230Ah LiFePO4 battery combines high usable capacity with a single-battery configuration. Before installation, confirm charger settings, inverter load, cable size, fuse rating, battery-compartment dimensions and operating temperature.
12.8V | 230Ah | 2,944Wh | 200A BMS | 2,560W Continuous Output | Low-Temperature Protection
| Feature | Product Detail |
|---|---|
| 230Ah LiFePO4 Capacity | Provides 2,944Wh of stored energy for compatible RV, marine and deep-cycle power systems. |
| Single-Battery Configuration | Provides 230Ah capacity in one battery, reducing battery-to-battery connections compared with multi-battery banks of similar capacity. |
| 200A BMS | Supports up to 200A continuous discharge current and 2,560W continuous output for compatible DC and inverter loads. |

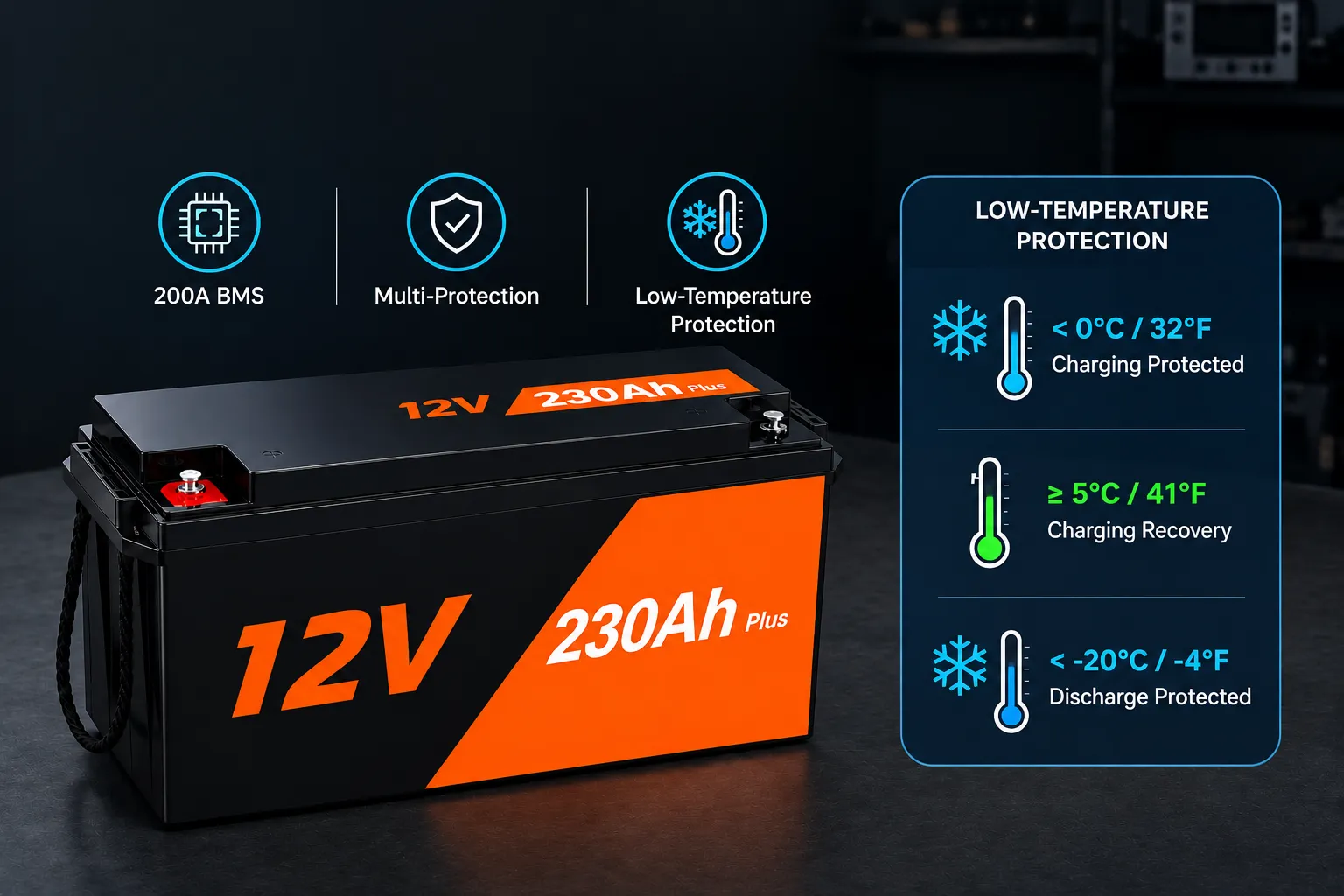

| Low-Temperature Protection | Charging is protected below 0°C / 32°F and can recover at 5°C / 41°F or above. Discharge is protected below -20°C / -4°F. |
| Deep-Cycle Operation | Designed for repeated charge and discharge operation in compatible RV house-power, marine and off-grid applications. |
| OEM & Private-Label Options | Selected projects can support custom BMS settings, communication interfaces, terminals, labels, connectors and packaging. |
A 230Ah lithium battery provides substantial energy capacity for RV house-power systems without requiring several smaller batteries to reach a similar amp-hour rating. In a correctly designed system, it can supply compatible lighting, refrigerators, water pumps, electronics and inverter-powered equipment.
Battery selection should be based on continuous and peak current, required operating time, inverter rating, charging sources, cable size and available battery-compartment dimensions rather than amp-hour capacity alone.
This 12V 230Ah LiFePO4 battery can be evaluated as a replacement for a compatible 12V lead-acid or AGM house-battery bank. A lead-acid to lithium conversion should not be based only on nominal voltage and amp-hour capacity.
Before replacing a lead-acid battery bank, confirm:
LiFePO4 batteries can provide more usable capacity, lower routine maintenance and longer cycle life than many comparable lead-acid battery banks. Actual service life and system performance depend on load, charging settings, depth of discharge, temperature and installation conditions.
The battery can be evaluated for compatible RV, camper van, marine house-power and off-grid systems. A complete installation may include an inverter, AC battery charger, solar charge controller, DC-to-DC charger, battery monitor, main fuse, battery disconnect switch and DC distribution equipment.
Compatibility should be confirmed from electrical specifications rather than equipment brand alone. Charging voltage, current limits, inverter demand, communication protocol where applicable, cable size and protection devices should all be reviewed before commissioning.
The integrated 200A BMS supports up to 2,560W of continuous output while monitoring battery voltage, current and temperature. Protection functions help manage abnormal operating conditions including over-voltage, under-voltage, over-current, short circuit and excessive temperature.
Low-temperature charging protection is different from self-heating. This battery does not automatically warm its cells before charging, so the battery and charging environment must remain within the confirmed operating-temperature limits.
| Parameter | Specification |
|---|---|
| Cell Chemistry | LiFePO4 |
| Warranty | 5 Years |
| Cycle Life | 4000 Cycles at 100% DOD; 6000 Cycles at 80% DOD; 15,000 Cycles at 60% DOD |
| Nominal Voltage | 12.8V |
| Rated Capacity | 230Ah |
| Energy | 2,944Wh |
| Maximum Expansion | 4P4S |
| Internal Resistance | ≤40mΩ |
| Certifications | FCC, CE, RoHS, UN38.3 |
| Bluetooth | No |
| Self-Heating | No |
| BMS | 200A |
| Maximum Continuous Output | 2,560W |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Maximum Discharge Current — 5 Seconds | 600A |
| Maximum Discharge Current — 1 Second | 1000A |
| Charge Method | CC/CV |
| Charge Voltage | 14.4V ± 0.2V |
| Recommended Charge Current | 46A |
| Charge Temperature | 0°C to 50°C / 32°F to 122°F |
| Discharge Temperature | -20°C to 60°C / -4°F to 140°F |
| Storage Temperature | -10°C to 50°C / 14°F to 122°F |
| Low-Temperature Protection | Yes |
| Automatic Charge Off | <0°C / 32°F |
| Automatic Charging Recovery | ≥5°C / 41°F |
| Automatic Discharge Off | <-20°C / -4°F |
| Terminals | M8 Bolts |
| Approximate Weight | 45.22 lb |
| Dimensions | 19 × 6.7 × 9.5 in |
| Housing Material | ABS |
| Protection Class | IP65 |
We support battery brands, RV manufacturers, marine companies, distributors and system integrators with product evaluation, sample development, engineering review and volume production for qualified LiFePO4 battery projects.
Available OEM and private-label options can include:
Yes, when its capacity, discharge capability, physical dimensions and charging requirements match the RV inverter, appliances, charging sources and available installation space. It is designed for deep-cycle house-power use rather than engine starting.
It can replace a compatible 12V lead-acid or AGM house-battery bank after the charger, inverter, alternator or DC-to-DC charger, cables, fuses, terminals, installation dimensions and operating-temperature requirements have been checked.
Only if the charging voltage, charging current and charge profile are compatible with this LiFePO4 battery specification. Equalization and other unsuitable lead-acid charging modes should not be used unless specifically approved.
Charging is protected when battery temperature falls below 0°C / 32°F and can recover when temperature reaches 5°C / 41°F or above. Discharge is protected below -20°C / -4°F. This model does not include self-heating.
No. This configuration does not include Bluetooth monitoring. Communication options such as CAN or RS485 may be available for selected OEM configurations and should be confirmed for the specific project.
CAN or RS485 communication may be available for selected configurations. The communication protocol, firmware version and cable pinout must be confirmed against the connected inverter or system controller before installation.
The specification lists a maximum expansion of 4P4S. Series or parallel battery banks should use matching batteries with the same model, specification, state of charge and compatible production configuration. The proposed system configuration should be confirmed before installation.
Send us your application, required runtime, continuous and peak load, inverter rating, charging sources, available installation dimensions and communication requirements. Our team can review the proposed 12V 230Ah LiFePO4 battery configuration for RV, marine, off-grid or OEM applications.
Many LiFePO4 batteries can replace compatible lead-acid deep-cycle batteries in RVs, boats, golf carts and industrial equipment. Before installation, confirm the system voltage, battery dimensions, terminal layout, charger profile, maximum load, cable size, fuse rating and operating temperature.
Most LiFePO4 batteries are compatible with standard 12V, 24V, 36V or 48V inverters when the system voltage and power requirements match. Many modern chargers also include a LiFePO4 charging profile. For lead-acid replacement projects, confirm the charger voltage, inverter rating and maximum load before installation. A compatible charger or DC-to-DC charger may be required if the existing charging equipment does not support LiFePO4 batteries.
Yes. OEM and custom battery support can include voltage, capacity, BMS settings, enclosures, terminals, connectors, communication protocols, labels and packaging. Send us the application, electrical requirements, installation dimensions and expected order quantity for review.
MOQ depends on the battery model, specification and customization requirements. Standard models may be available for sample testing, while custom enclosures, private labels and OEM production normally require a confirmed order quantity. Contact us with the model and required quantity for details.
Available certifications and documents depend on the battery model and destination market. Supporting documents may include UN38.3, MSDS, CE, RoHS and product test reports. Confirm the required documents and target market before placing an order.
Lead time depends on the battery model, order quantity, customization and testing requirements. Export shipping options are arranged according to the battery specification, destination and order volume. Send us the required quantity, delivery location and target schedule for a project-specific quotation.
