12V 100Ah Group 31 LiFePO4 Battery for Trolling Motors
$169.00
Built for RVs, camper vans, boats and compact off-grid systems, this 12V 200Ah Mini LiFePO4 Battery stores 2560Wh of energy in a space-saving case. Bluetooth monitoring provides convenient access to battery status, while the integrated Smart BMS manages everyday charging and discharging protection.
The compact enclosure is useful when installation space is limited but a full 200Ah battery capacity is still required. Wholesale, OEM and private-label configurations are available for RV builders, battery distributors and power-system integrators.
12.8V | 200Ah | 2560Wh | 200A Smart BMS | 2560W Output | Bluetooth 5.0 | Low-Temperature Protection | IP65

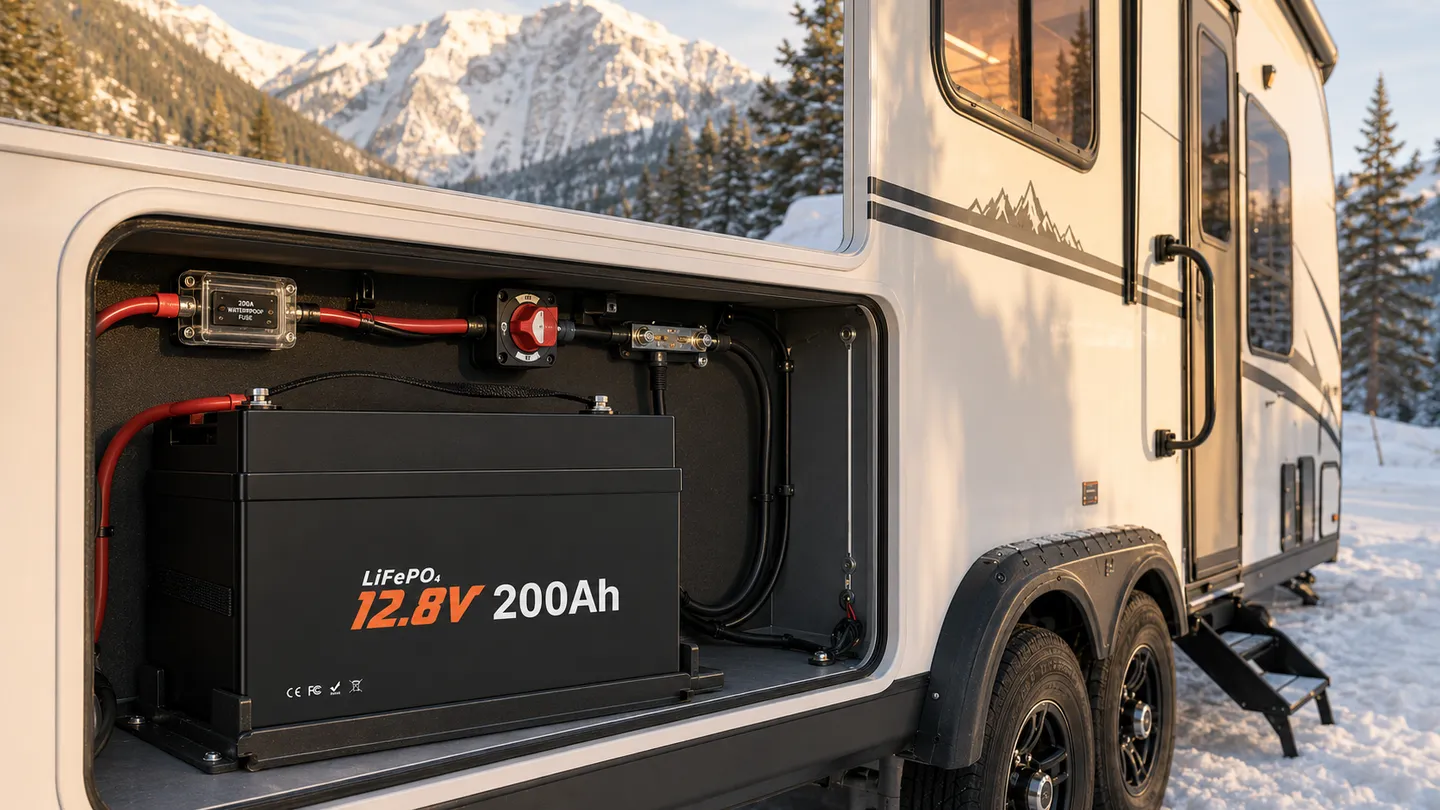

A conventional 200Ah battery may be difficult to fit into a restricted RV or camper battery compartment. This compact 12V lithium battery keeps the rated 200Ah capacity while reducing the space required for installation.
| Parameter | Specification |
|---|---|
| Battery Chemistry | LiFePO4 |
| Nominal Voltage | 12.8V |
| Rated Capacity | 200Ah |
| Nominal Energy | 2560Wh |
| Battery Management | 200A Smart BMS |
| Maximum Continuous Output Power | 2560W |
| Bluetooth | Bluetooth 5.0 app monitoring |
| Continuous Charge Current | 200A (1C) |
| Continuous Discharge Current | 200A (1C) |
| Peak Discharge Current | 1000A for 1 second |
| Recommended Charge Voltage | 14.4V ± 0.2V, CC/CV |
| Recommended Charge Current | 40A (0.2C) |
| Low-Temperature Charge Protection | Automatic charge cut-off below 0°C; recovery at 5°C |
| Series / Parallel Configuration | Up to 4P4S with identical batteries |
| Cycle Life | 6,000+ cycles at 100% DOD* |
| Charge Temperature | 0°C to 50°C (32°F to 122°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -10°C to 50°C (14°F to 122°F) |
| Internal Resistance | ≤40mΩ |

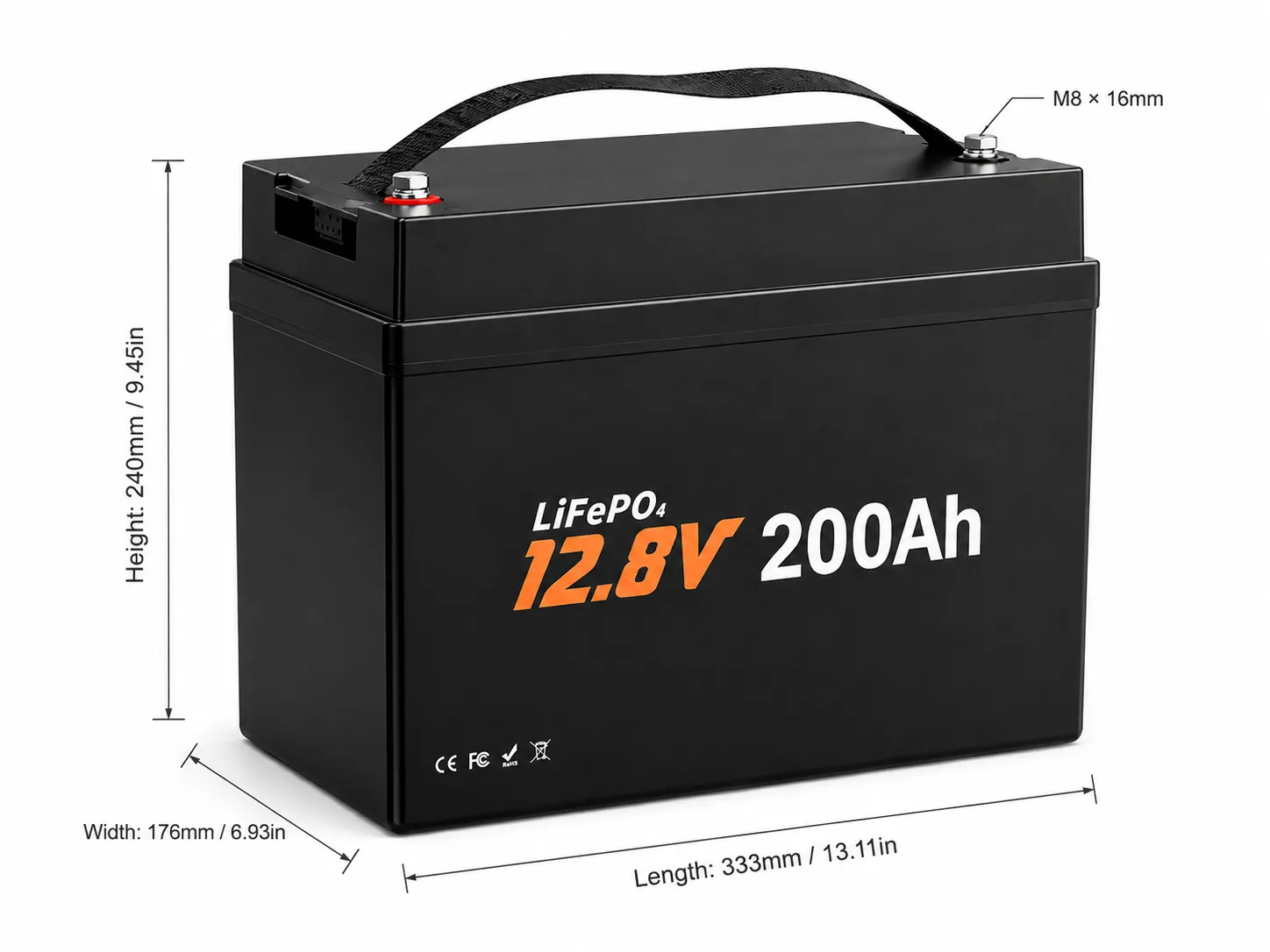

| Dimensions | 13.11 × 6.93 × 9.45 in (333 × 176 × 240 mm) |
| Net Weight | Approx. 44.5 lb (20.2 kg) |
| Terminal Type | M8 × 16 mm |
| Housing Material | ABS |
| Ingress Protection | IP65 |
| Certifications | Available according to the confirmed model and destination-market requirements |
*Cycle life depends on depth of discharge, charging method, operating temperature and test conditions. Refer to the current product datasheet for the applicable test standard.

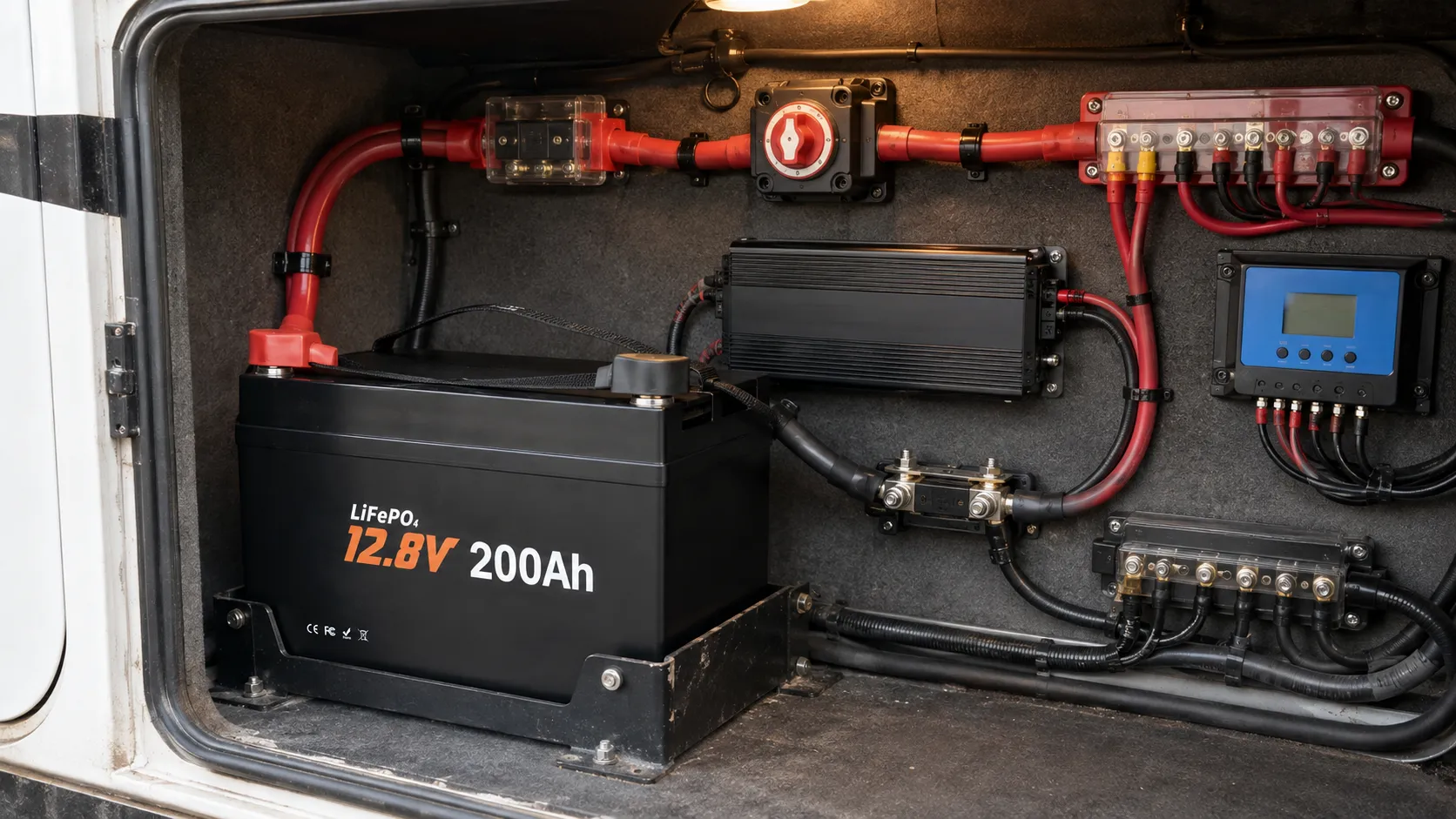

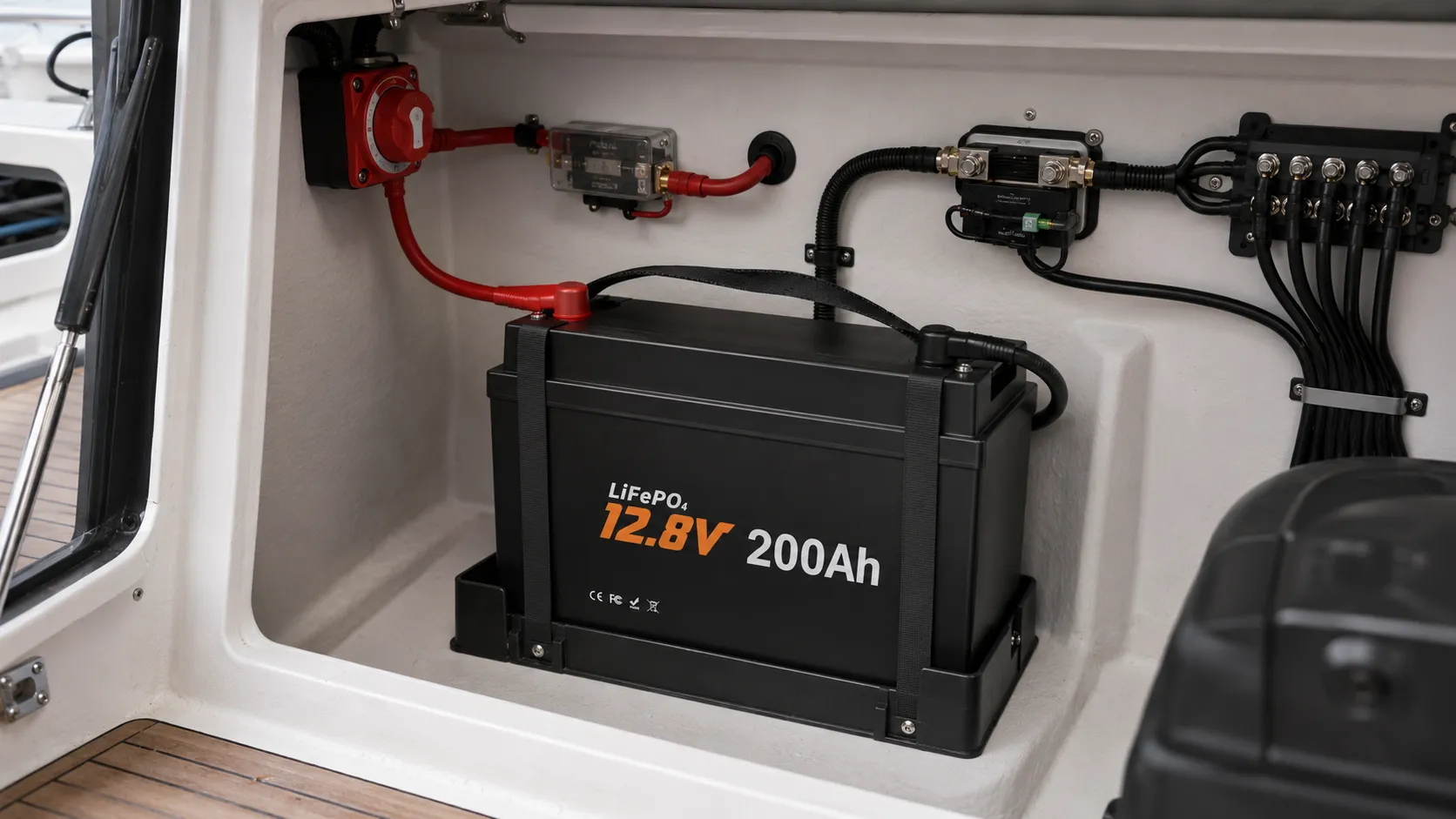

The 12V 200Ah Mini LiFePO4 Battery is designed for house-power and auxiliary electrical systems where available installation space must be used carefully. Typical applications include:
Battery selection should be based on usable installation space, expected load, inverter power, charging sources and the required continuous and surge current.

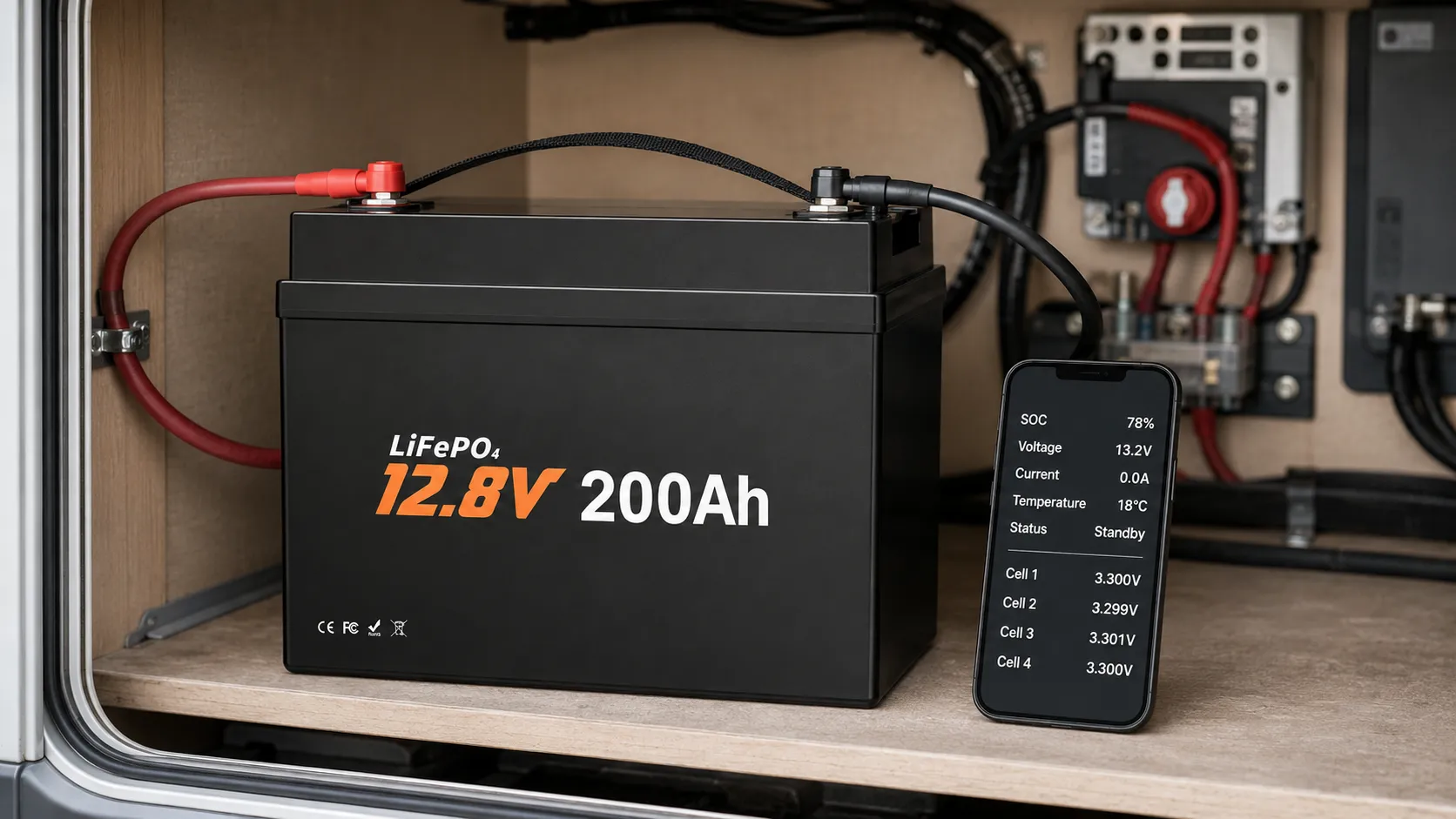

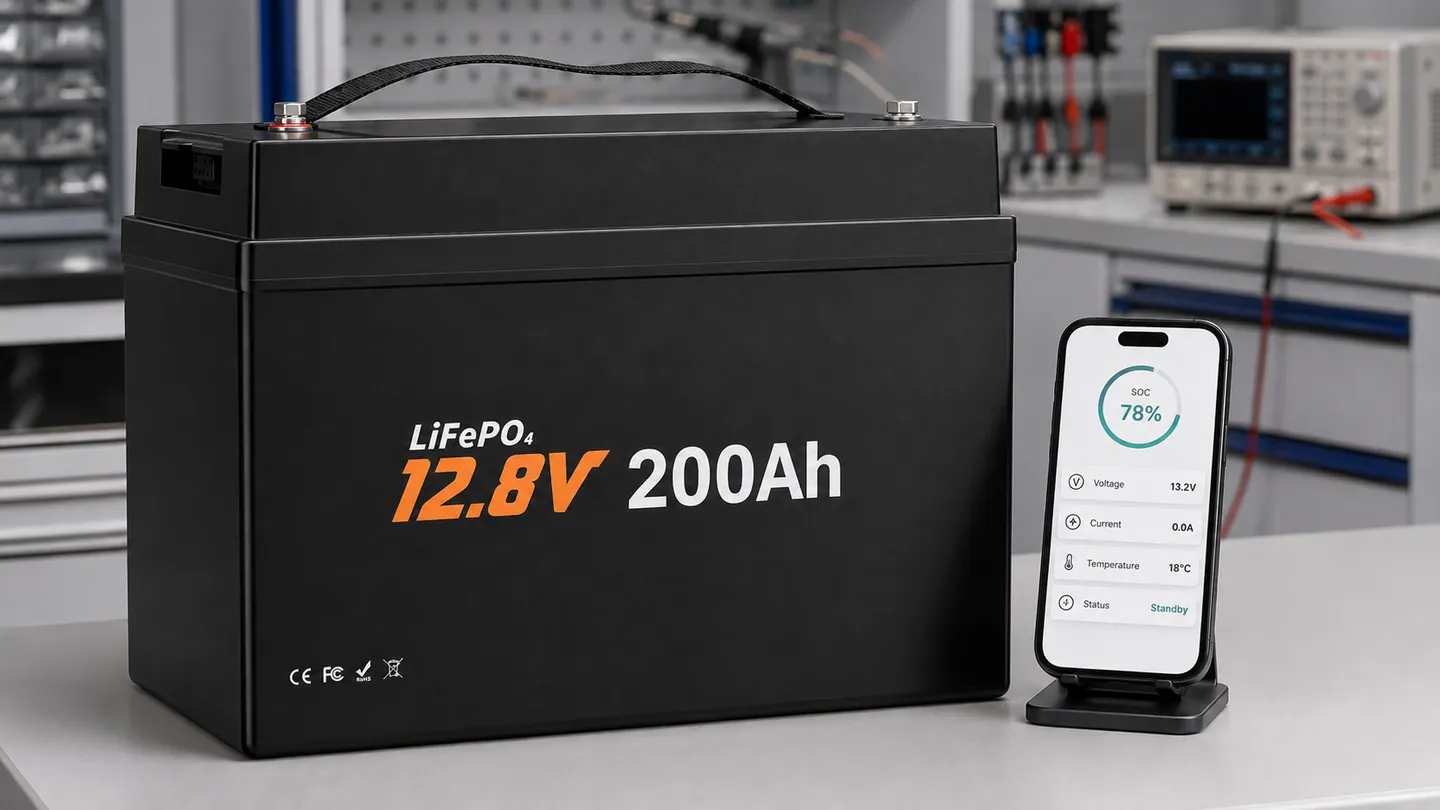

Bluetooth monitoring allows users and installers to check available battery information from a compatible mobile app. Depending on the final BMS configuration, monitored data can include state of charge, pack voltage, current, temperature, operating status and protection records.
This is useful during system commissioning, routine inspection and troubleshooting because the battery can be checked without opening or dismantling the installation.

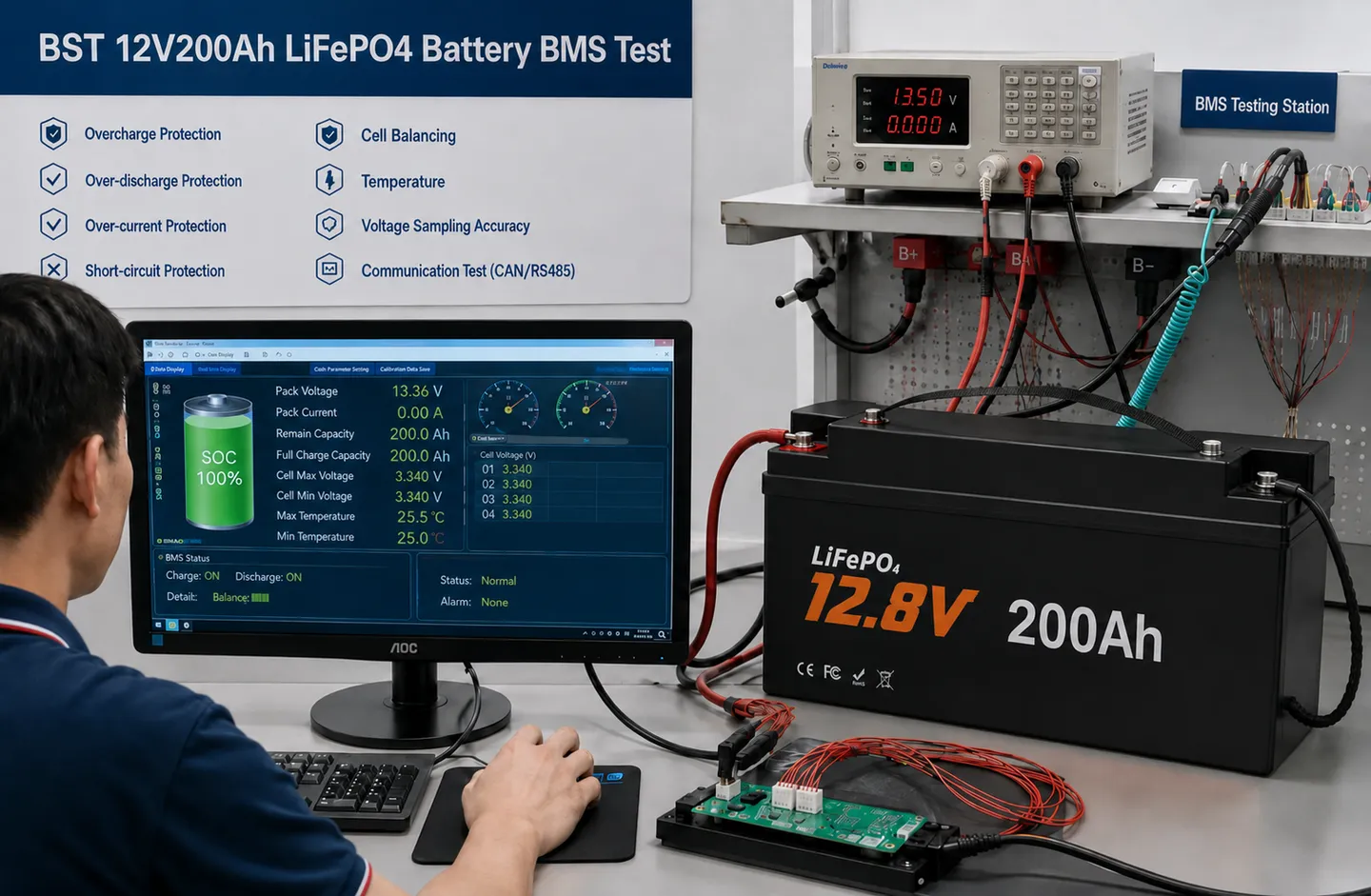

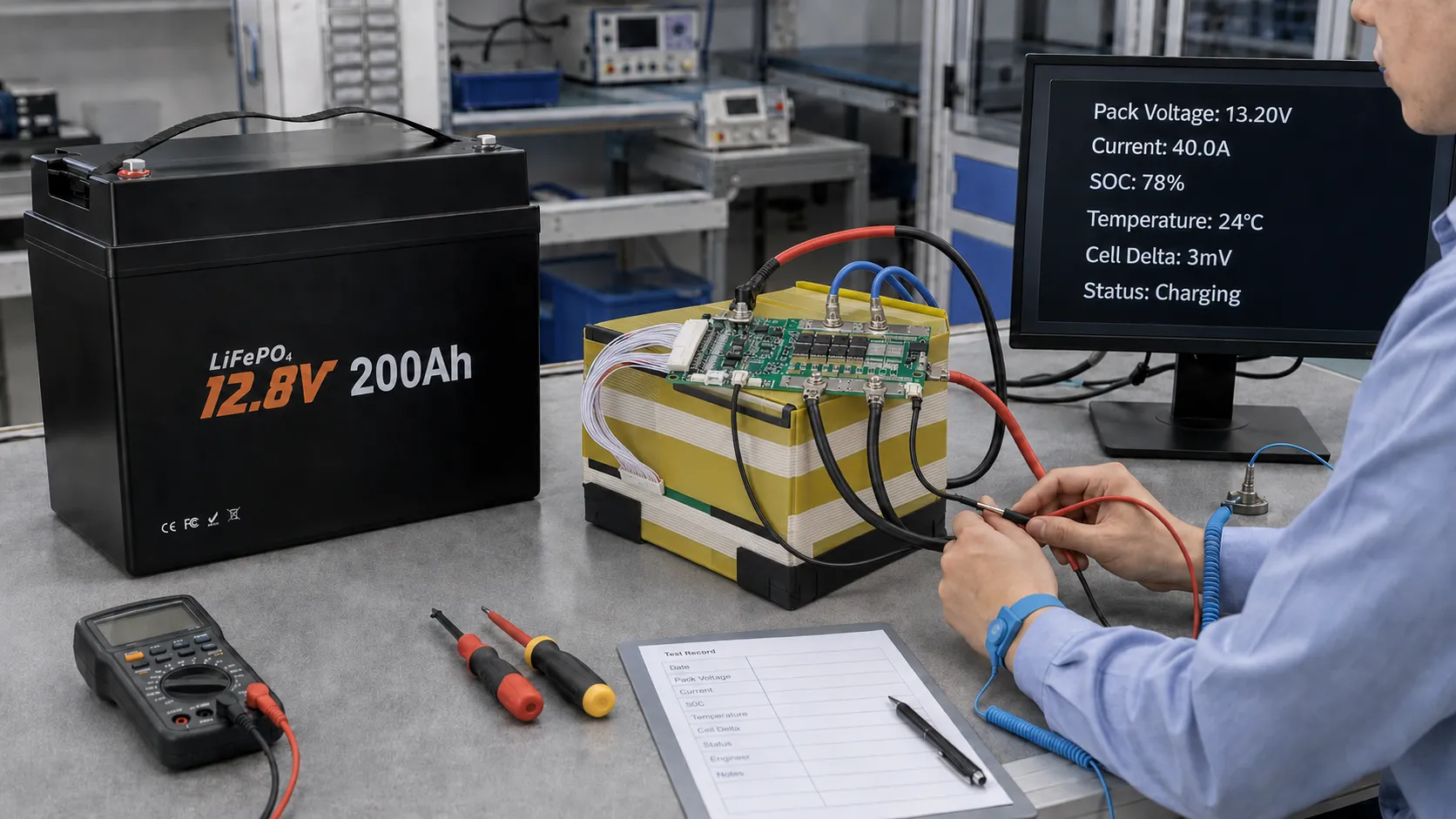

The integrated 200A Smart BMS supports up to 2560W of continuous output and manages charging and discharging while protecting the battery against common electrical and temperature-related operating conditions.

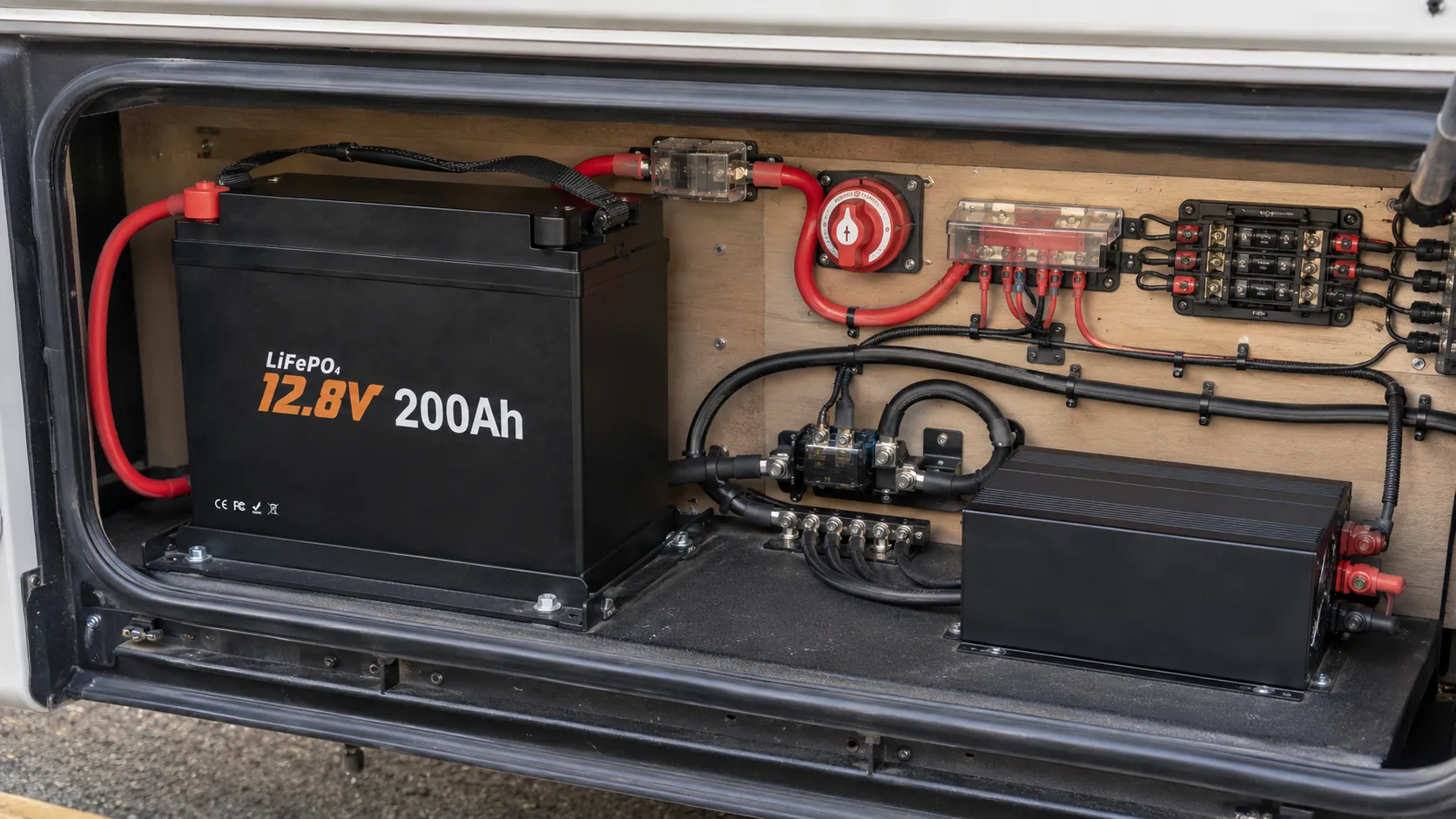

Use a charger, solar charge controller or inverter-charger with a charging profile suitable for LiFePO4 batteries. For alternator charging, a correctly sized DC-to-DC charger is normally required between the vehicle alternator and the house battery.
Before installation, confirm:

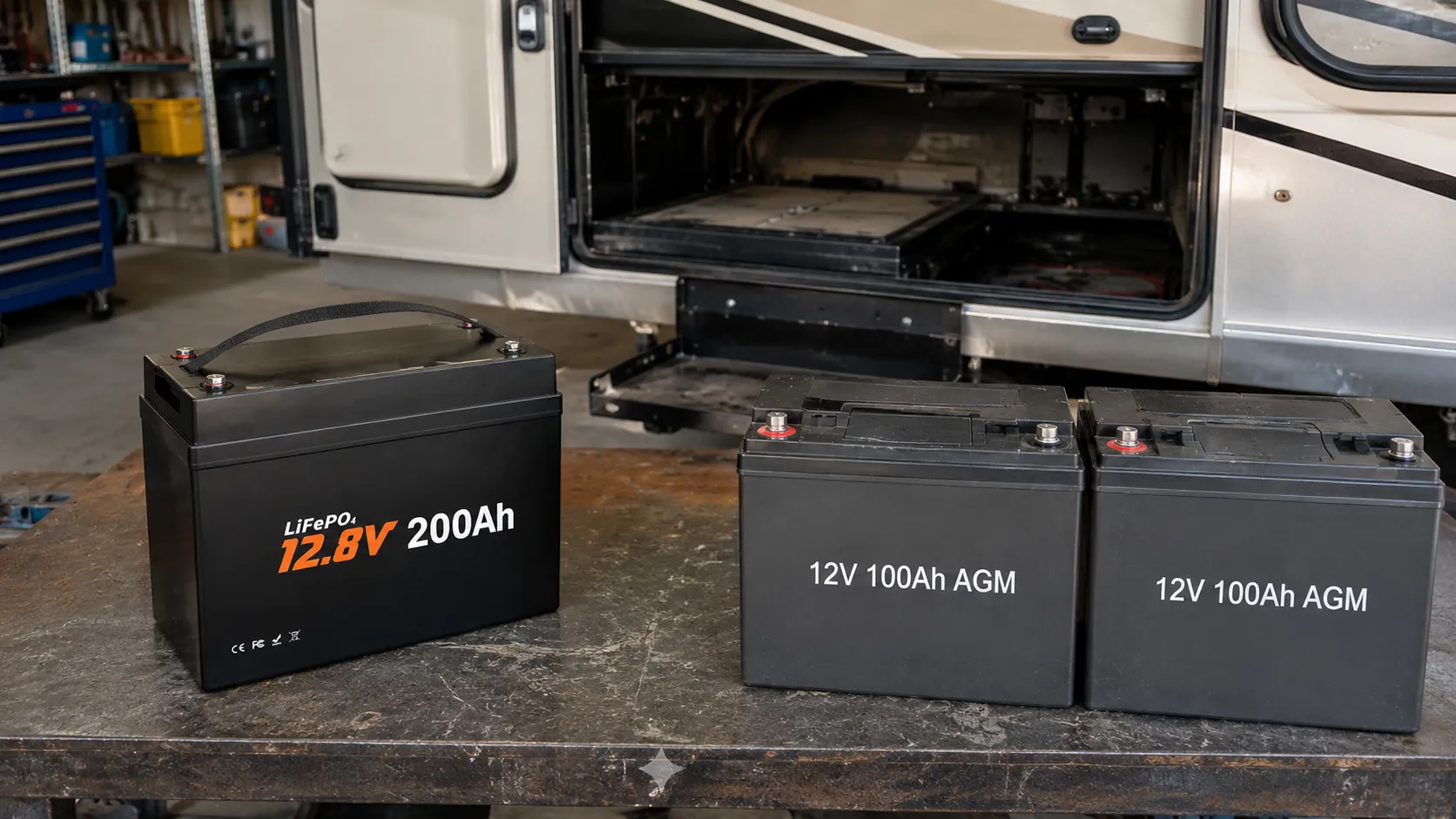

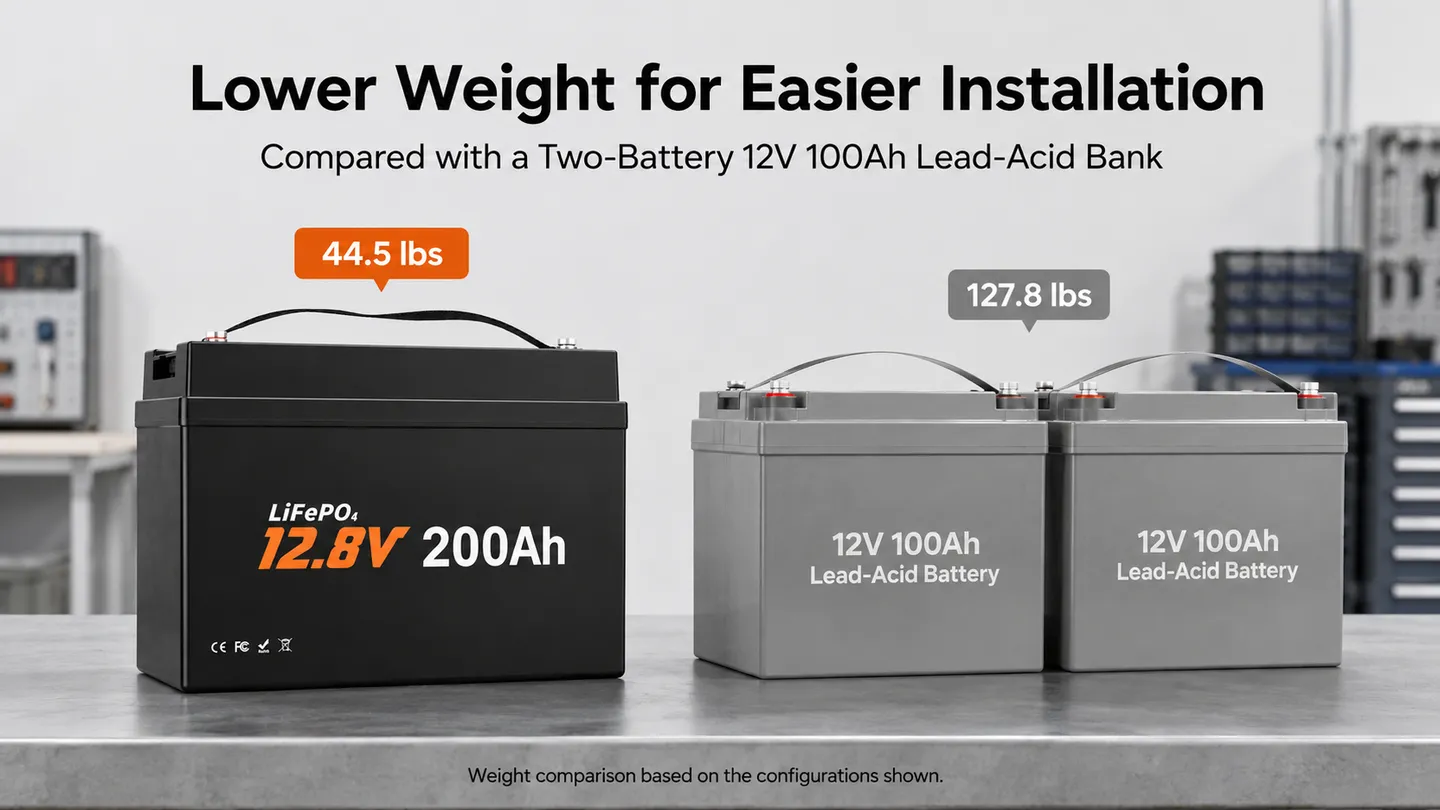

This compact 12V 200Ah lithium battery can be considered for lead-acid replacement projects after the charging system, available space and required current have been checked. A conversion involves more than matching nominal voltage and capacity.
The charger settings, alternator-charging method, cables, fuse protection, terminal arrangement and mounting system must also be suitable for LiFePO4 battery operation.

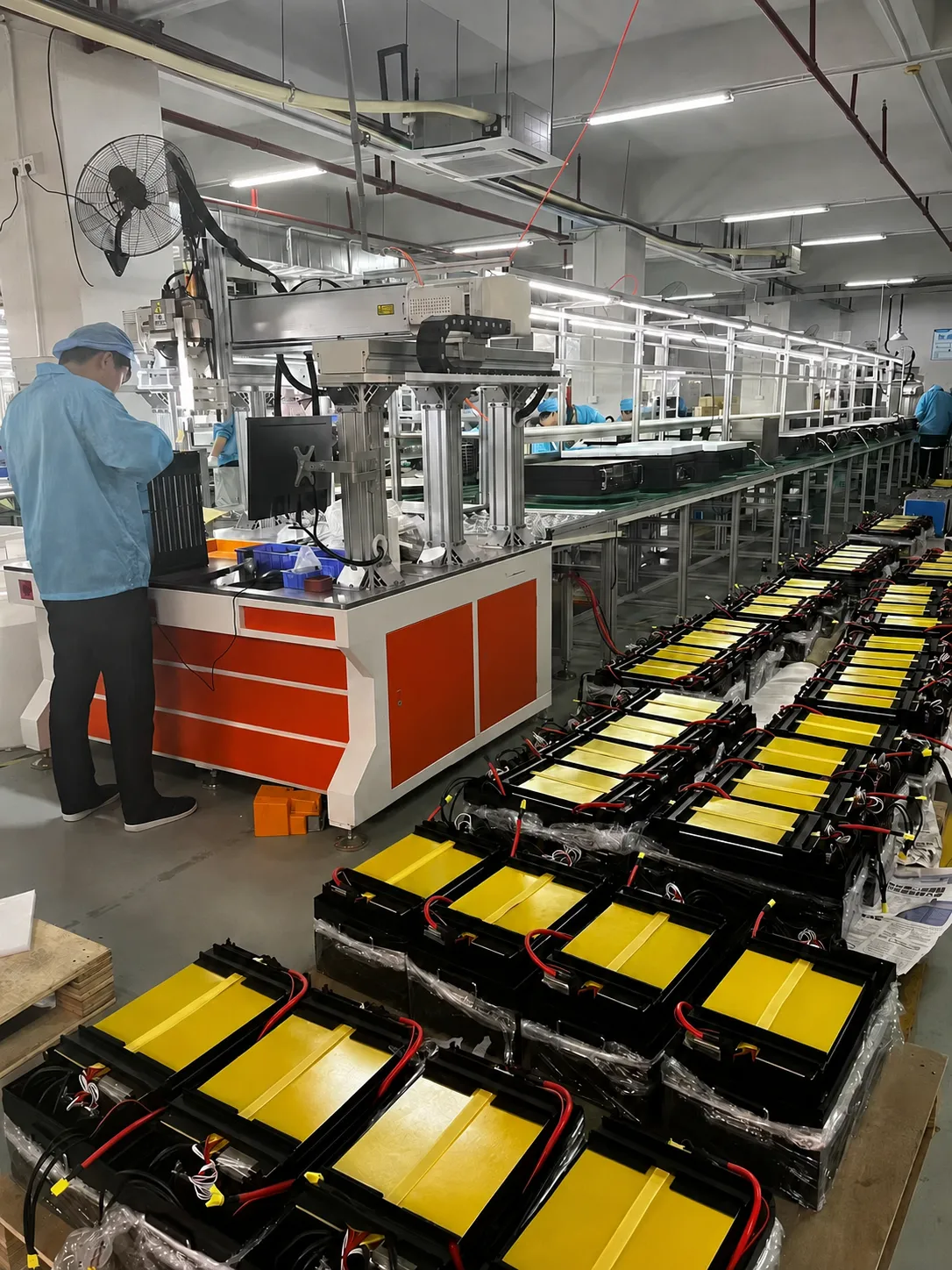

Support is available for RV manufacturers, camper conversion companies, marine integrators, lithium battery distributors and equipment builders requiring a compact 12V 200Ah battery configuration.
Available services may include:
Yes, provided the available space, charging system, inverter demand, cables and circuit protection match the battery specification. Its compact case is intended for installations where a conventional 200Ah battery may be difficult to fit.
Yes. Bluetooth 5.0 monitoring provides access to state of charge, pack voltage, current, temperature, cycle data and protection status through a compatible mobile app.

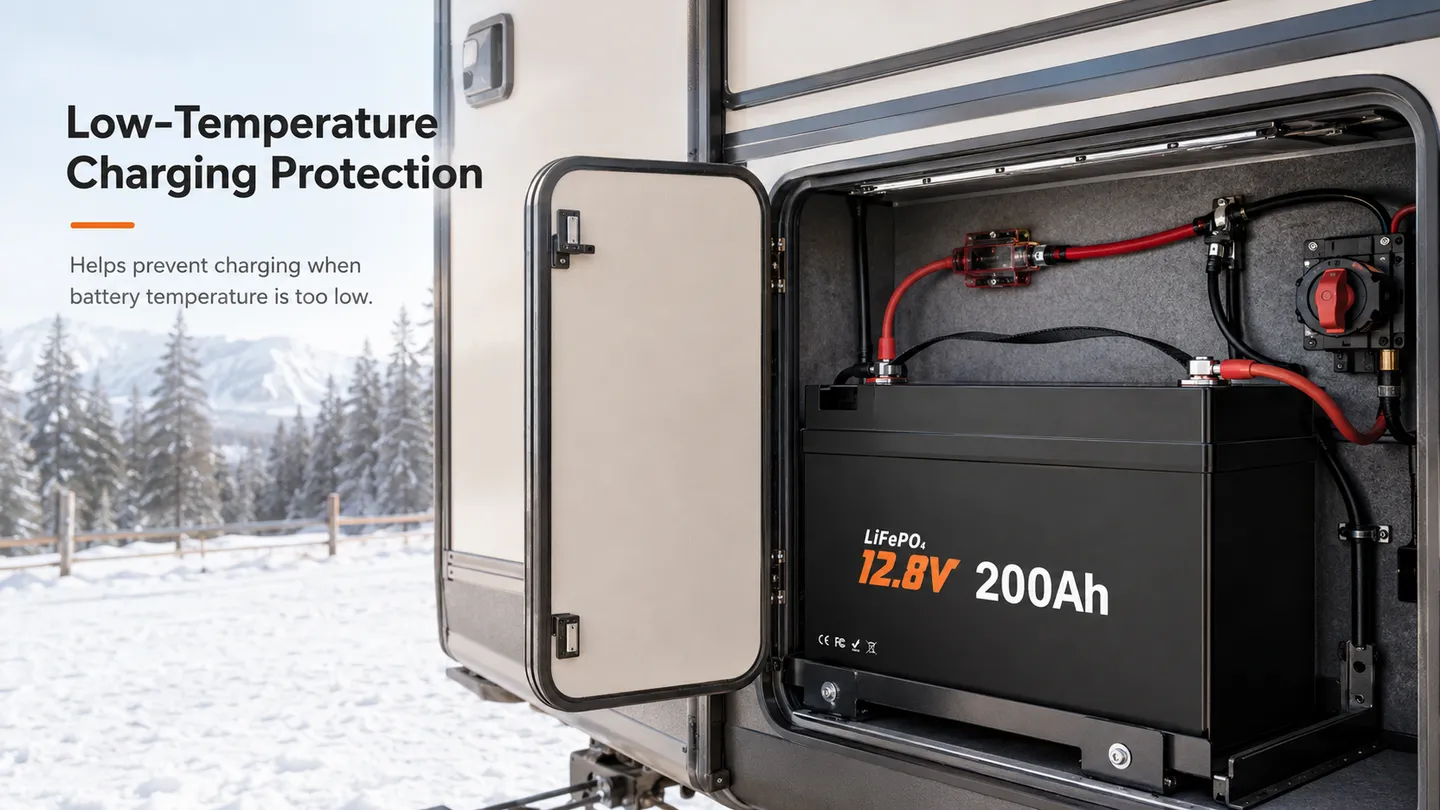

No. This configuration does not contain an internal heater. The BMS stops charging below 0°C, resumes charging at 5°C and stops discharging at -20°C.
Identical batteries support configurations up to four in series and four in parallel when installed according to the product manual. Do not combine batteries of different models, capacities, ages or states of charge.
Use a LiFePO4-compatible CC/CV charger. The specified charge voltage is 14.4V ± 0.2V and the recommended charge current is 40A. Alternator charging should use a correctly sized LiFePO4 DC-to-DC charger.
The referenced cycle-life specification is 6,000+ cycles at 100% depth of discharge under the stated test conditions. Actual service life depends on charging, depth of discharge and temperature. Warranty terms are confirmed in the quotation for the ordered configuration and destination market.
Send the required quantity, application, inverter power, charging method and available installation dimensions. The battery configuration can then be reviewed before specifications, sample options, lead time and OEM pricing are provided.
Many LiFePO4 batteries can replace compatible lead-acid deep-cycle batteries in RVs, boats, golf carts and industrial equipment. Before installation, confirm the system voltage, battery dimensions, terminal layout, charger profile, maximum load, cable size, fuse rating and operating temperature.
Most LiFePO4 batteries are compatible with standard 12V, 24V, 36V or 48V inverters when the system voltage and power requirements match. Many modern chargers also include a LiFePO4 charging profile. For lead-acid replacement projects, confirm the charger voltage, inverter rating and maximum load before installation. A compatible charger or DC-to-DC charger may be required if the existing charging equipment does not support LiFePO4 batteries.
Yes. OEM and custom battery support can include voltage, capacity, BMS settings, enclosures, terminals, connectors, communication protocols, labels and packaging. Send us the application, electrical requirements, installation dimensions and expected order quantity for review.
MOQ depends on the battery model, specification and customization requirements. Standard models may be available for sample testing, while custom enclosures, private labels and OEM production normally require a confirmed order quantity. Contact us with the model and required quantity for details.
Available certifications and documents depend on the battery model and destination market. Supporting documents may include UN38.3, MSDS, CE, RoHS and product test reports. Confirm the required documents and target market before placing an order.
Lead time depends on the battery model, order quantity, customization and testing requirements. Export shipping options are arranged according to the battery specification, destination and order volume. Send us the required quantity, delivery location and target schedule for a project-specific quotation.
