12V 100Ah Group 31 LiFePO4 Battery for Trolling Motors
$169.00
This 12V 320Ah Mini LiFePO4 battery stores 4,096Wh in a compact enclosure. Its 200A Smart BMS and Bluetooth monitoring make it suitable for compatible RV, marine, off-grid and mobile power systems where installation space is limited.
12.8V | 320Ah | 4,096Wh | 200A Smart BMS | Bluetooth | IP65-Rated Enclosure
Request OEM Pricing WhatsApp Now

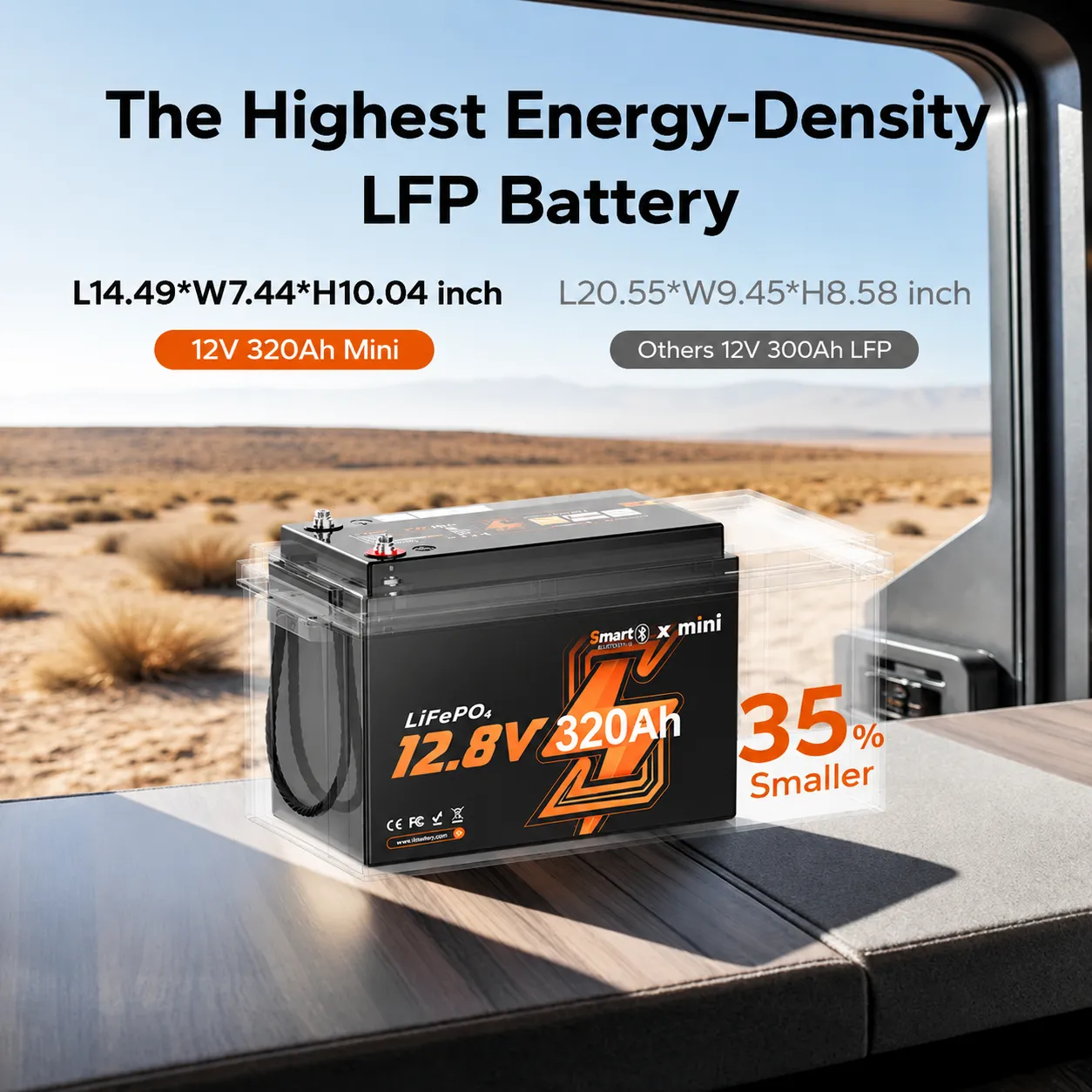

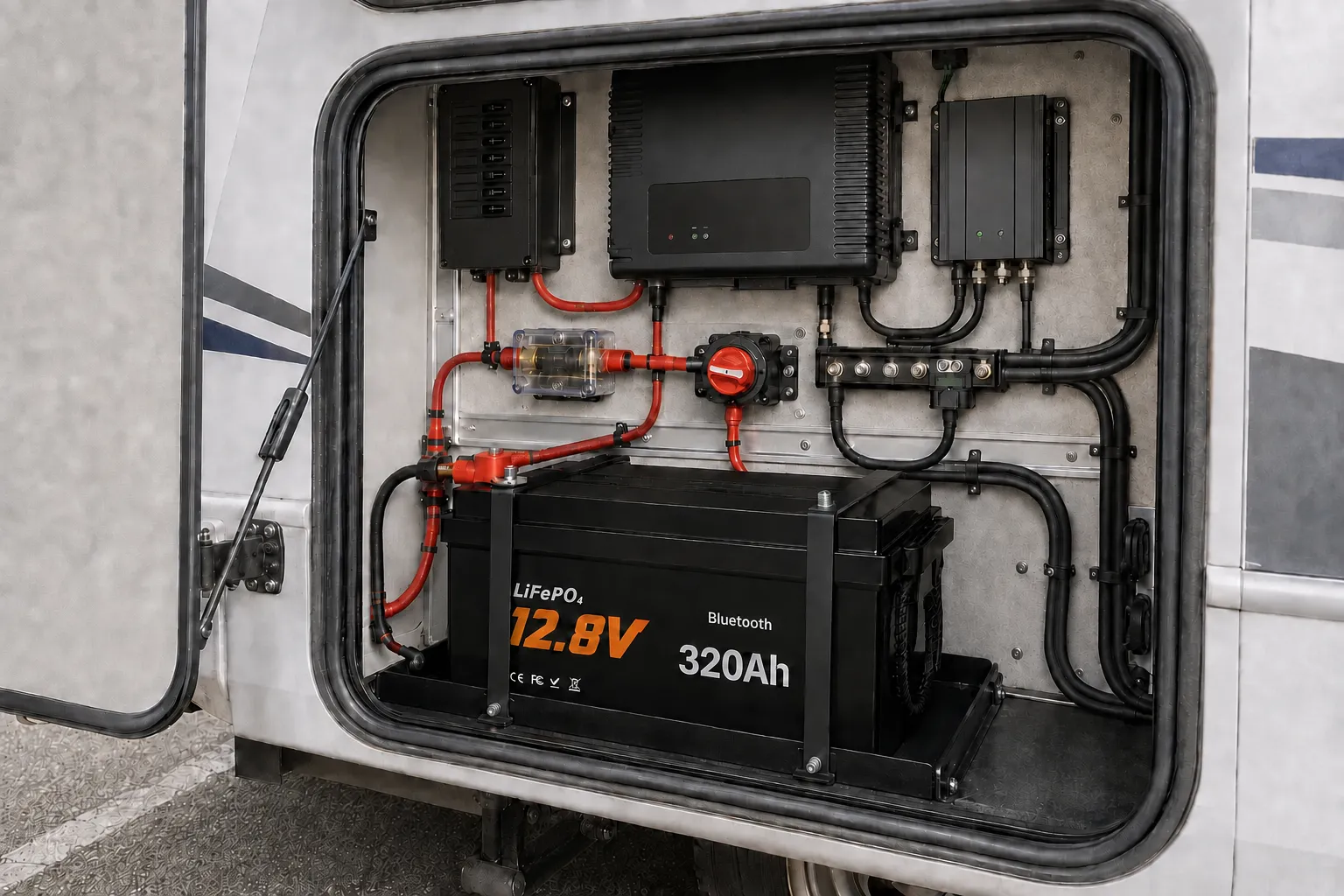

The 12V 320Ah Mini LiFePO4 deep cycle battery provides 4.096kWh of rated energy in a compact format. One high-capacity battery can replace a bank of smaller batteries when the voltage, current and charging requirements are compatible, reducing external cables and connection points.
Typical applications include:
Confirm the installation dimensions, inverter load, charging equipment, cable size, circuit protection and operating temperature before ordering.
| Feature | Specification |
|---|---|
| Rated Energy | 4,096Wh / 4.096kWh |
| Smart BMS | 200A continuous discharge |
| Bluetooth Monitoring | SOC, voltage, current and temperature |

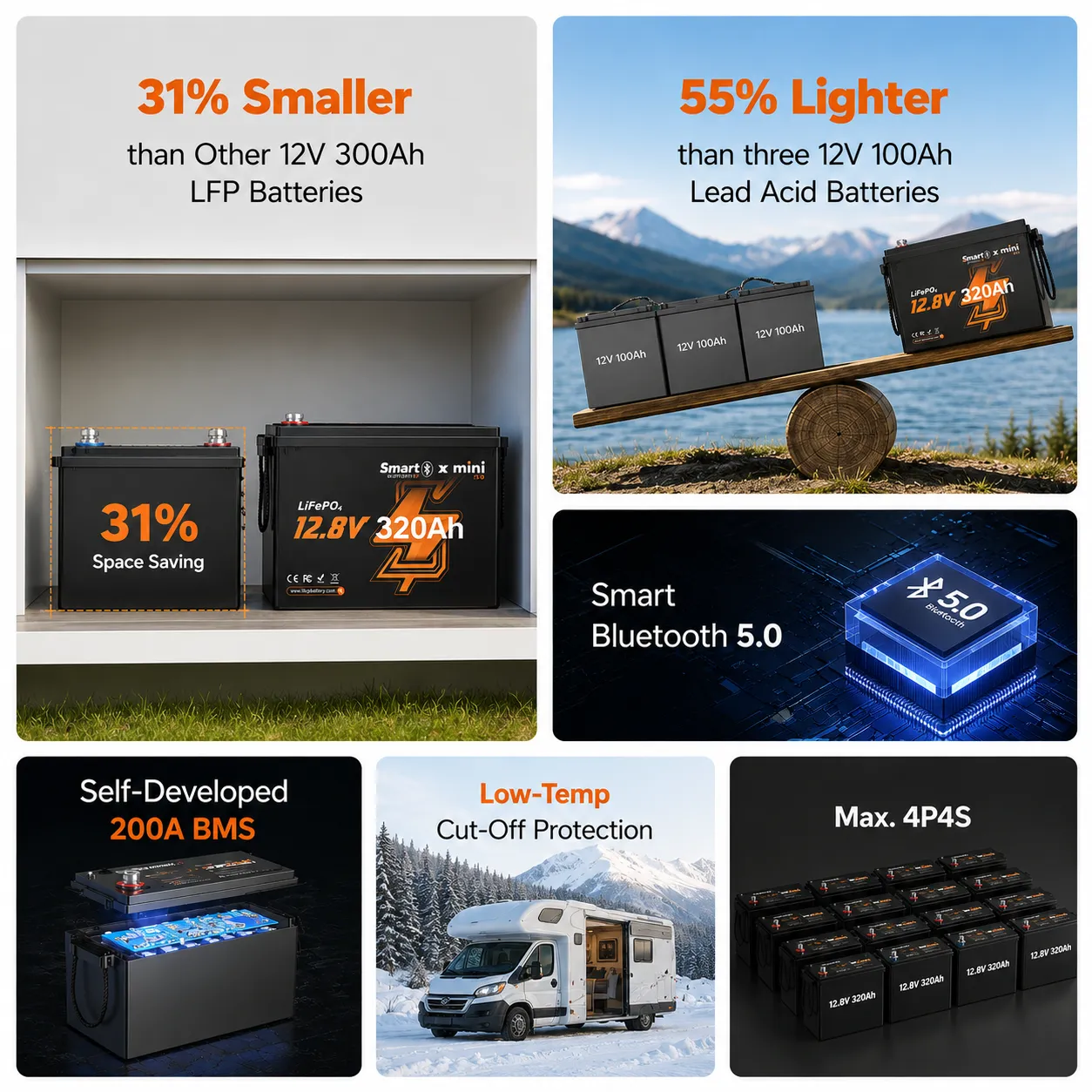

| Compact Format | High capacity with fewer external battery connections |
| Communication | CAN and RS485 available for selected OEM projects |
| Cycle Life | Up to 6,000 cycles under specified test conditions |
| Enclosure | IP65 rated |

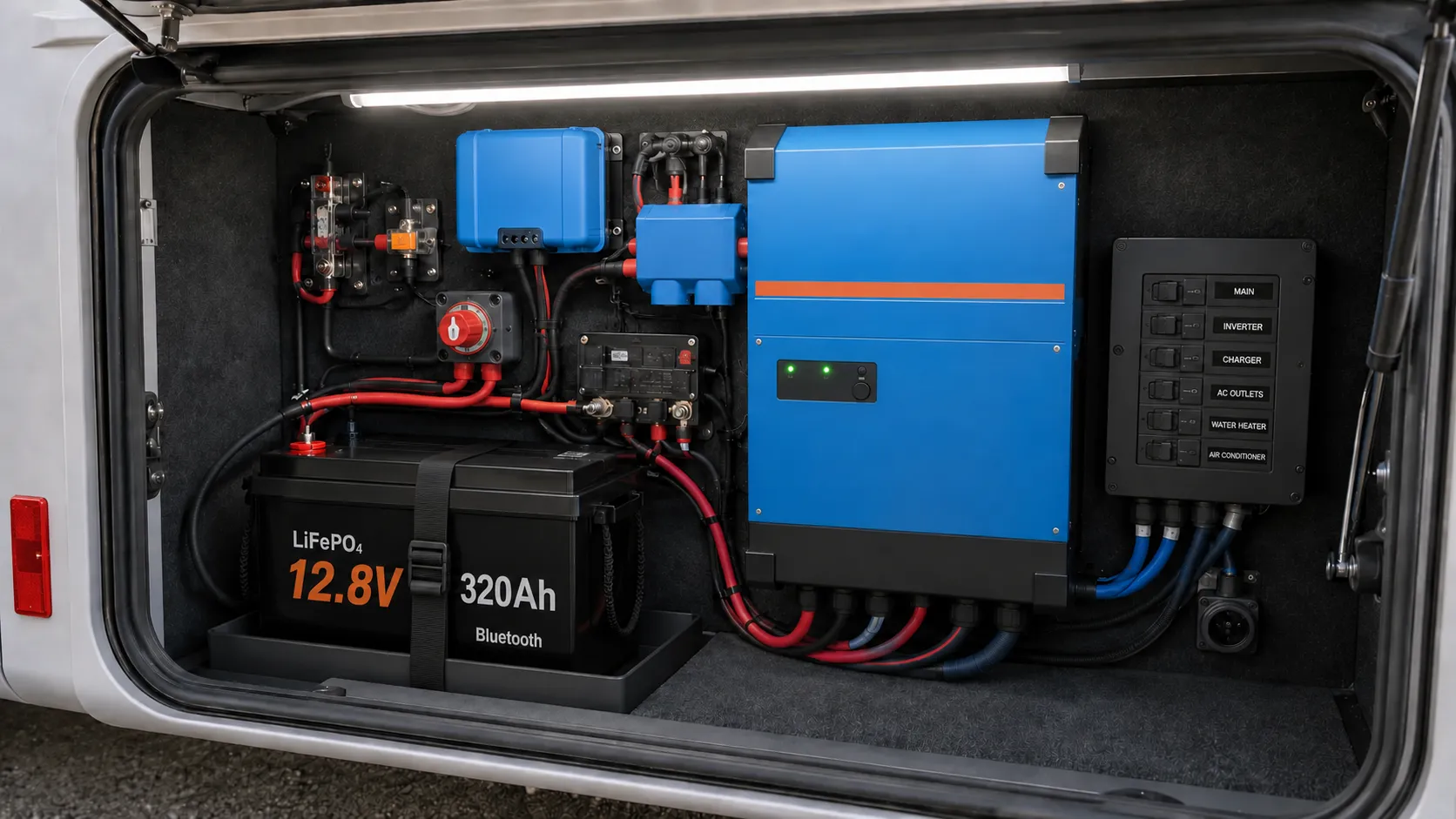

The 200A Smart BMS supports up to 2,560W of continuous DC output at the nominal battery voltage. This makes the battery suitable for compatible RV inverters, marine house-power systems and onboard electrical equipment.
System integration support can include:
CAN communication can be configured for selected Victron-based RV and marine systems. The inverter, GX device, communication protocol, cable pinout and wiring requirements must be confirmed before production.

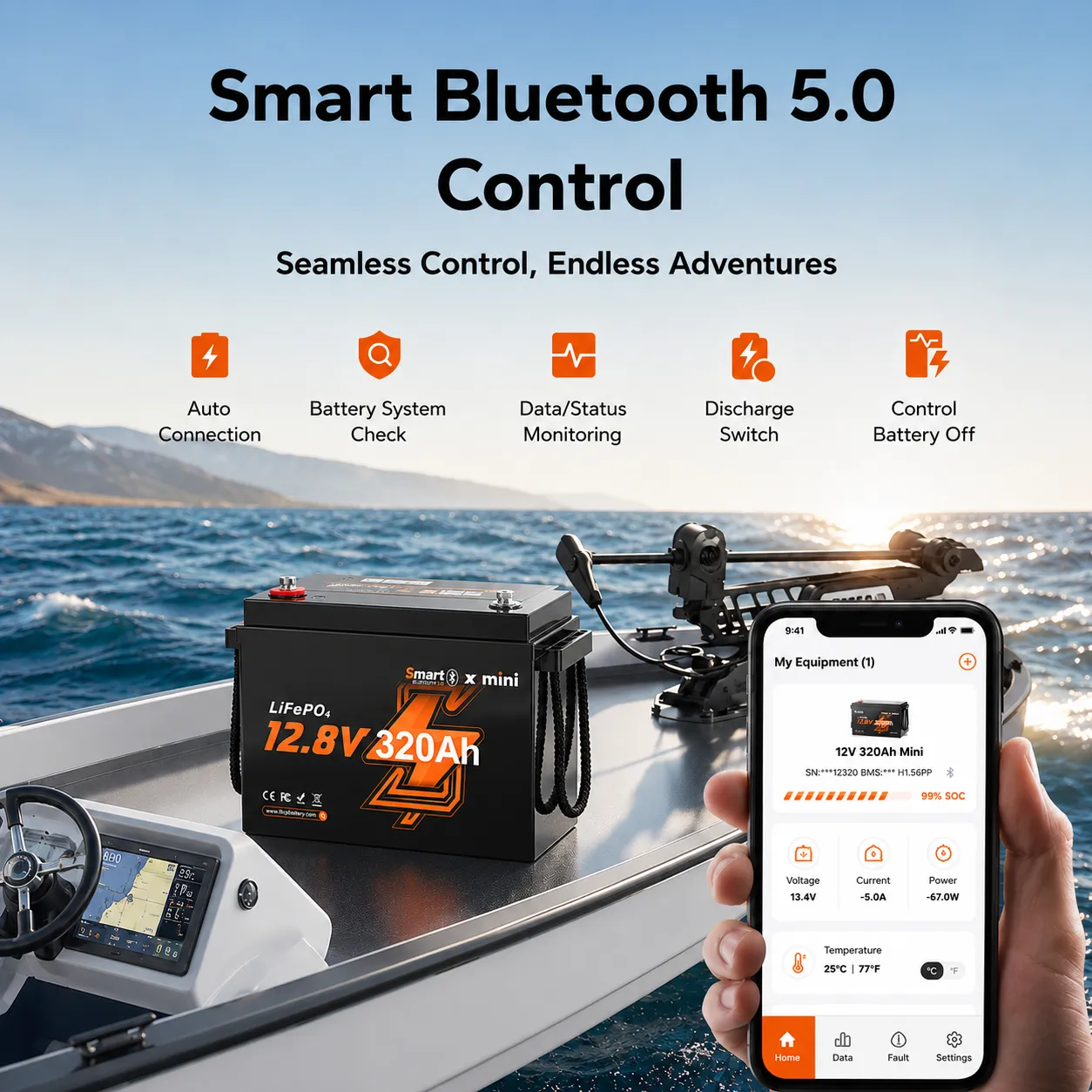

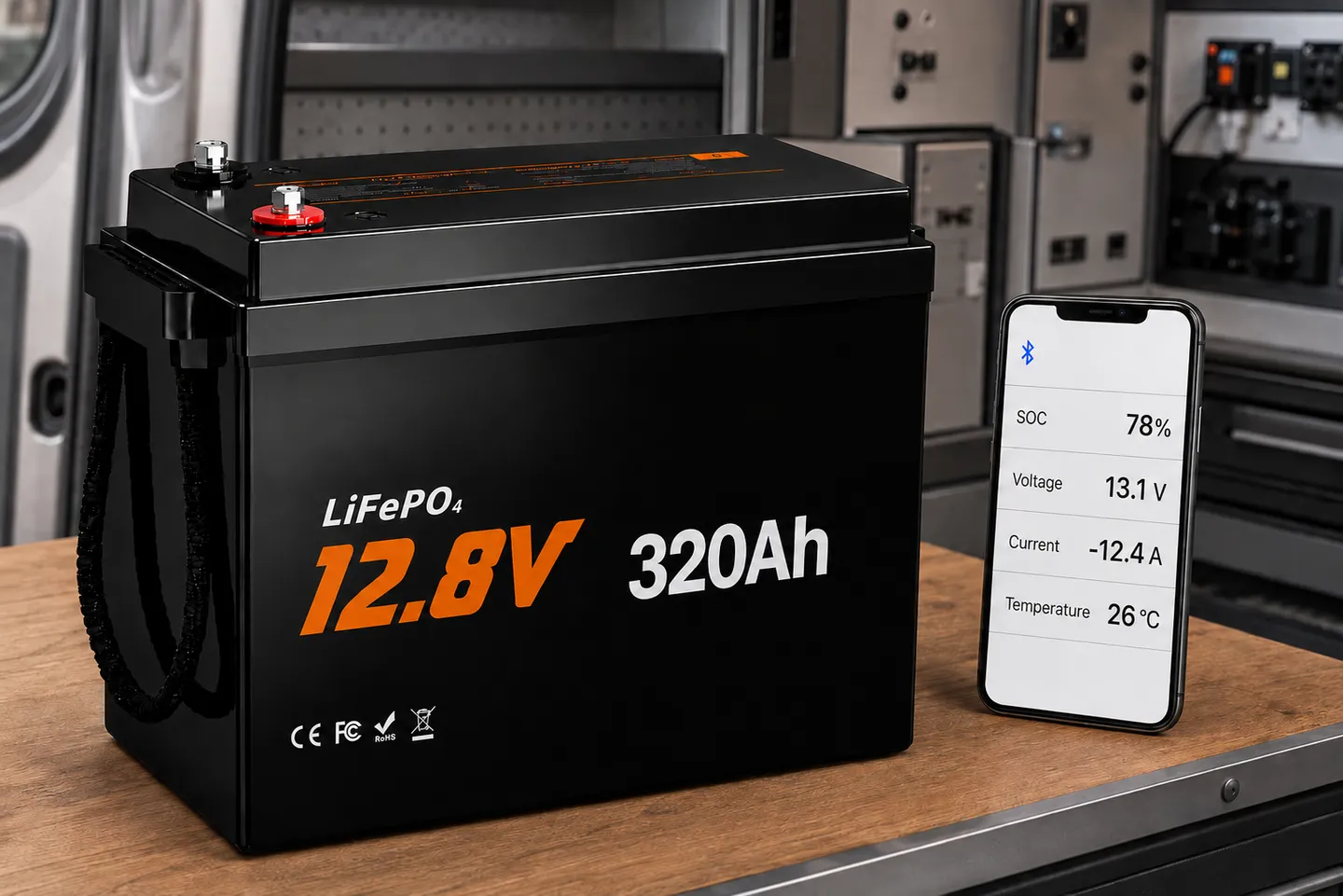

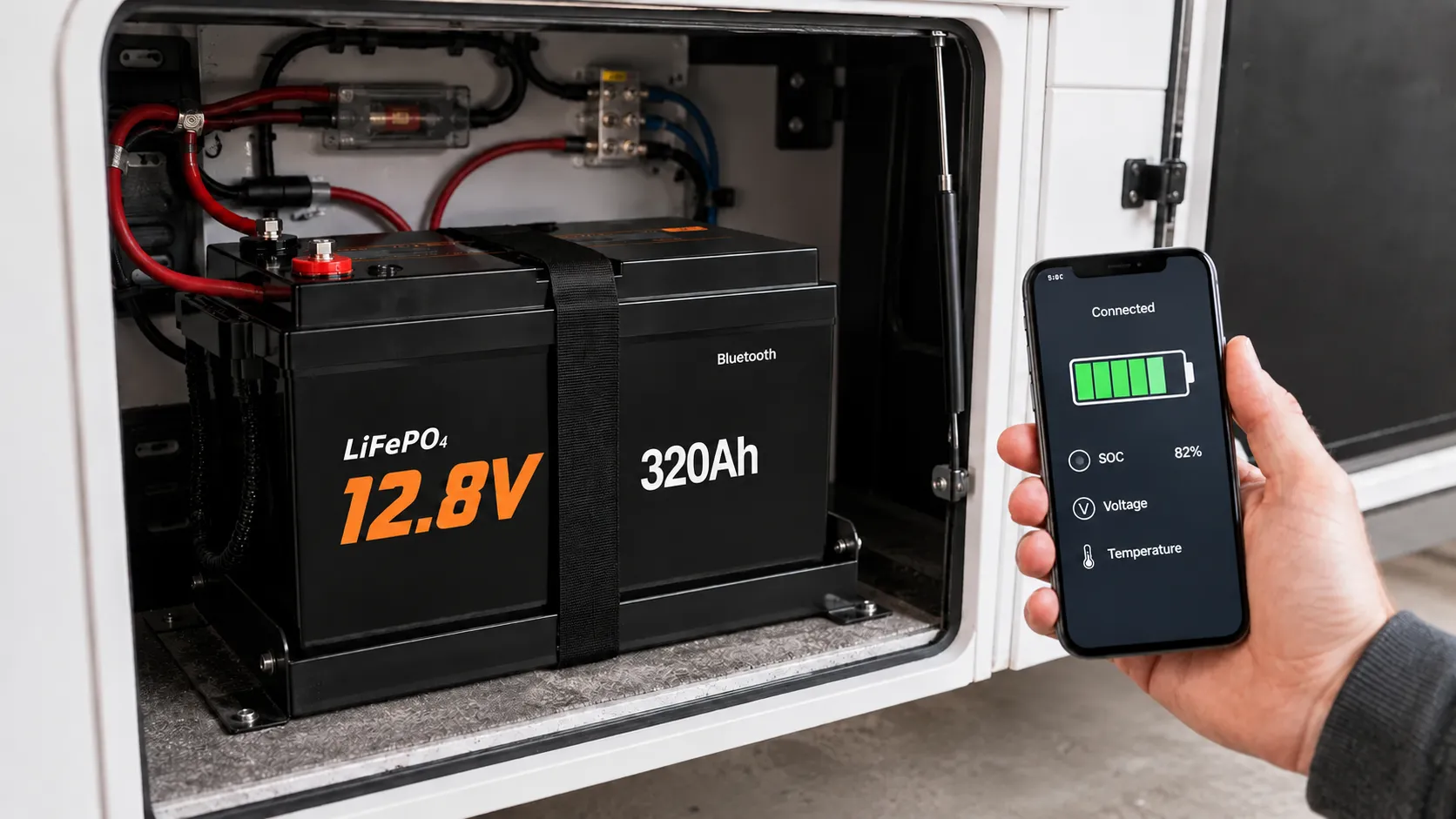

Bluetooth monitoring allows compatible mobile devices to display key battery information without requiring a separate wired display.
Available monitoring information includes:

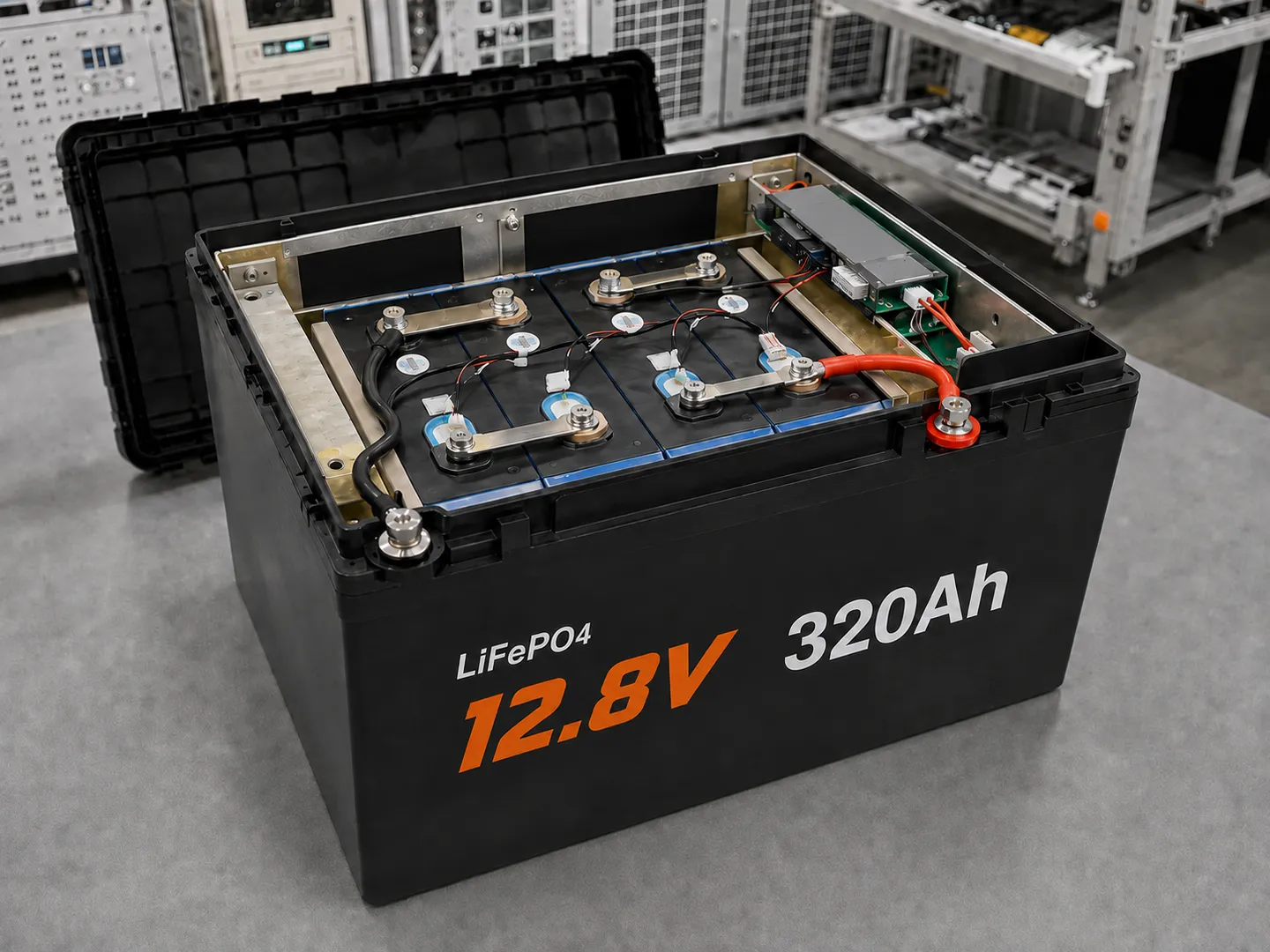

The Smart BMS provides protection against overcharge, over-discharge, overcurrent, short circuit and abnormal temperature conditions.
| Parameter | Specification |
|---|---|
| Chemistry | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 320Ah |
| Rated Energy | 4,096Wh / 4.096kWh |
| BMS | 200A Smart BMS |
| Maximum Continuous Output | 2,560W |
| Monitoring | Bluetooth |
| Communication | CAN / RS485 optional |
| Cycle Life | Up to 6,000 cycles under specified test conditions |
| Enclosure Rating | IP65 |
| Dimensions | 15.12 × 7.64 × 9.76 in |
| Series / Parallel | Confirm the required configuration before ordering |
| Applications | RV, marine, off-grid and backup power |
Charging current, peak discharge current, weight, terminal type, operating-temperature limits and series or parallel configuration should be confirmed on the final product datasheet.

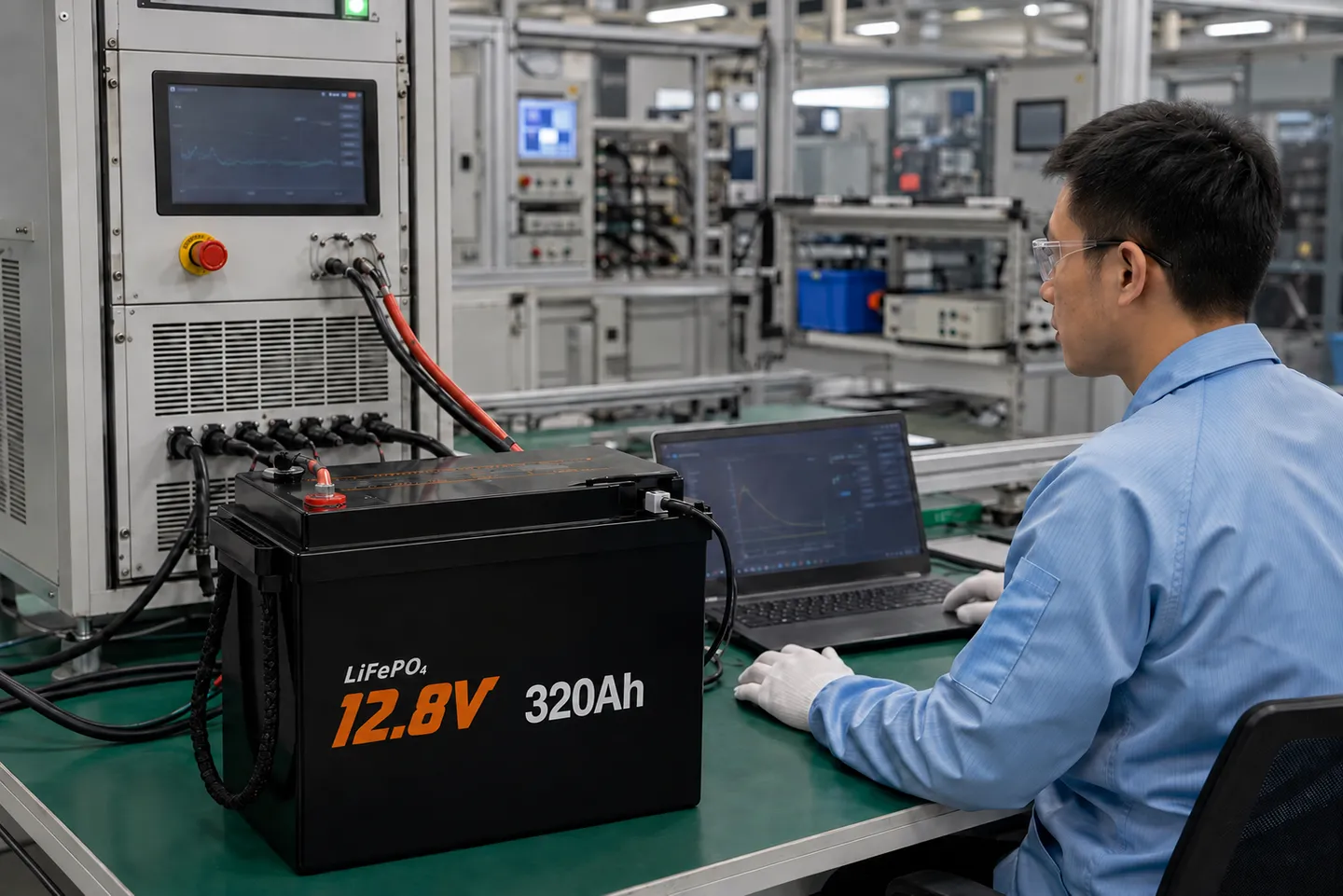

With more than 20 years of battery manufacturing experience, we support RV builders, marine companies, equipment manufacturers, distributors and private-label battery brands from specification review through sample testing and volume production.
OEM LiFePO4 battery options include:
Yes. Its 4,096Wh capacity can reduce the number of batteries, external cables and connection points required when the system voltage and current requirements are compatible. Check the inverter, charger, maximum load and available installation space before conversion.
The 200A BMS supports up to 2,560W of continuous DC output at 12.8V. A 3,000W inverter may exceed this level when operating near full load. Confirm the inverter’s continuous input current, surge requirement and expected AC load before installation.
CAN communication can be configured for selected Victron-based systems. Confirm the inverter, GX device, communication protocol, cable pinout and wiring requirements before ordering.
Yes. BMS settings, communication protocols, terminals, connectors, enclosure details, labels and packaging can be configured for qualified OEM battery projects.
Send us your application, inverter power, charging sources, installation dimensions, communication requirements and estimated order quantity. Our engineering team will review the battery configuration and system requirements.
Many LiFePO4 batteries can replace compatible lead-acid deep-cycle batteries in RVs, boats, golf carts and industrial equipment. Before installation, confirm the system voltage, battery dimensions, terminal layout, charger profile, maximum load, cable size, fuse rating and operating temperature.
Most LiFePO4 batteries are compatible with standard 12V, 24V, 36V or 48V inverters when the system voltage and power requirements match. Many modern chargers also include a LiFePO4 charging profile. For lead-acid replacement projects, confirm the charger voltage, inverter rating and maximum load before installation. A compatible charger or DC-to-DC charger may be required if the existing charging equipment does not support LiFePO4 batteries.
Yes. OEM and custom battery support can include voltage, capacity, BMS settings, enclosures, terminals, connectors, communication protocols, labels and packaging. Send us the application, electrical requirements, installation dimensions and expected order quantity for review.
MOQ depends on the battery model, specification and customization requirements. Standard models may be available for sample testing, while custom enclosures, private labels and OEM production normally require a confirmed order quantity. Contact us with the model and required quantity for details.
Available certifications and documents depend on the battery model and destination market. Supporting documents may include UN38.3, MSDS, CE, RoHS and product test reports. Confirm the required documents and target market before placing an order.
Lead time depends on the battery model, order quantity, customization and testing requirements. Export shipping options are arranged according to the battery specification, destination and order volume. Send us the required quantity, delivery location and target schedule for a project-specific quotation.
