12V 165Ah Group 31 LiFePO4 Battery with Bluetooth & 165A Smart BMS

  • Bluetooth
  • Smart BMS
  • Group 31
$199.00
Size:

About this product

More Energy in a Group 31 Battery Case

This 12V 165Ah Group 31 LiFePO4 battery stores 2,112Wh for RV house-power systems, camper vans and compatible Group 31 lead-acid replacement applications. Its deep-cycle design supports auxiliary electrical loads, while the 165A Smart BMS provides up to 2,112W of continuous output. Bluetooth monitoring gives installers and users access to state of charge, voltage, current, power and temperature without opening the battery compartment.

Low-temperature protection helps protect the cells during cold-weather charging and discharging. This is a deep-cycle battery, not an engine-starting battery, and it does not include self-heating.

165Ah Capacity | 2,112Wh Energy | 165A Smart BMS | Bluetooth 5.0 | Group 31 Size | IP65

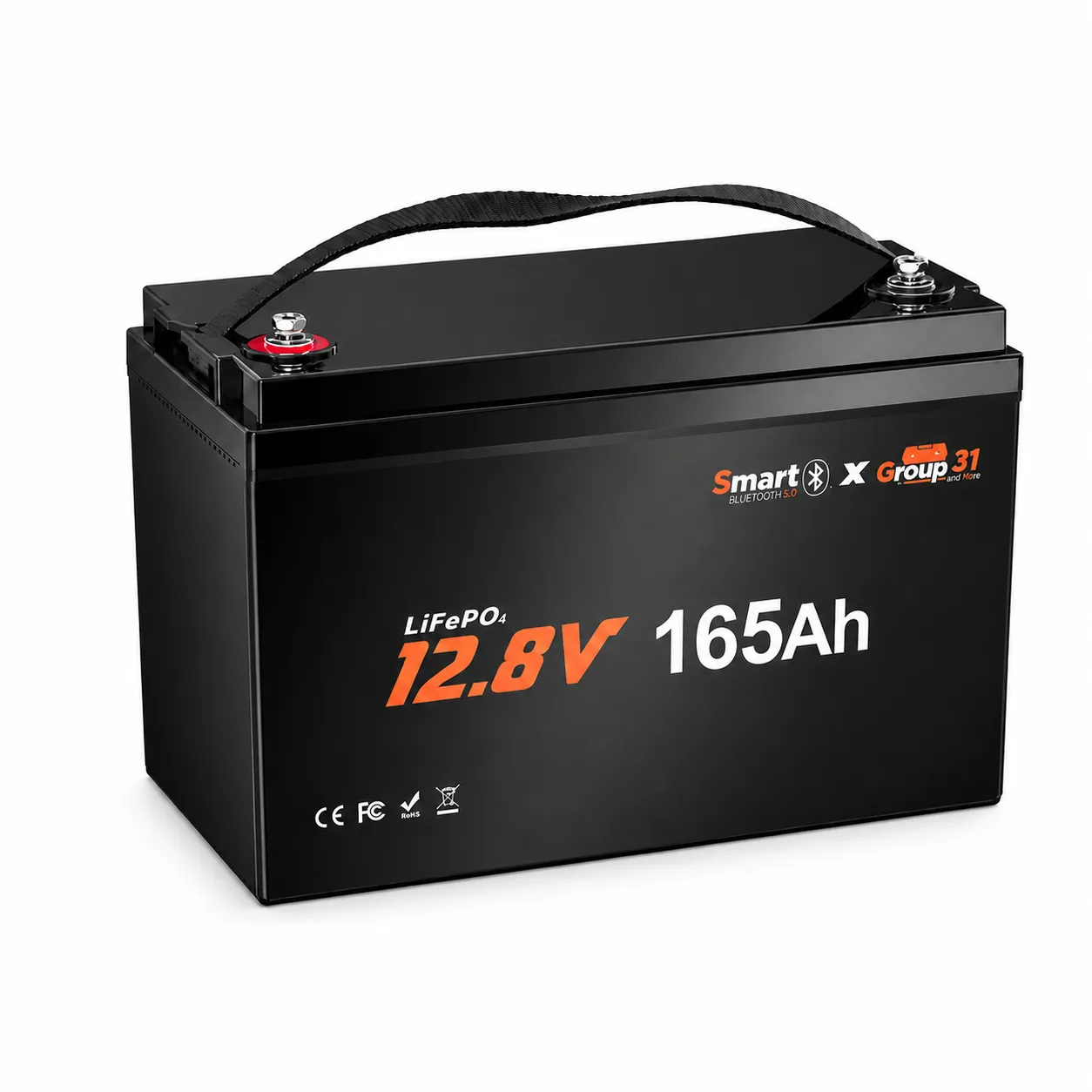

12V 165Ah Group 31 LiFePO4 battery with Bluetooth and 165A Smart BMS
12V 165Ah Group 31 LiFePO4 deep-cycle battery with Bluetooth monitoring.

Key Features

2,112Wh in Group 31 Size

More usable energy for longer runtime without moving to an oversized battery case.

165A Smart BMS

Manages charging and discharging while protecting against overvoltage, undervoltage, overcurrent, short circuit and temperature extremes.

Bluetooth 5.0 Monitoring

Check battery status and operating data from a compatible mobile app without opening the battery compartment.

Expandable to 4S4P

Build larger banks up to 51.2V 660Ah when identical batteries are installed with matched cables, branch protection and compatible charging equipment.

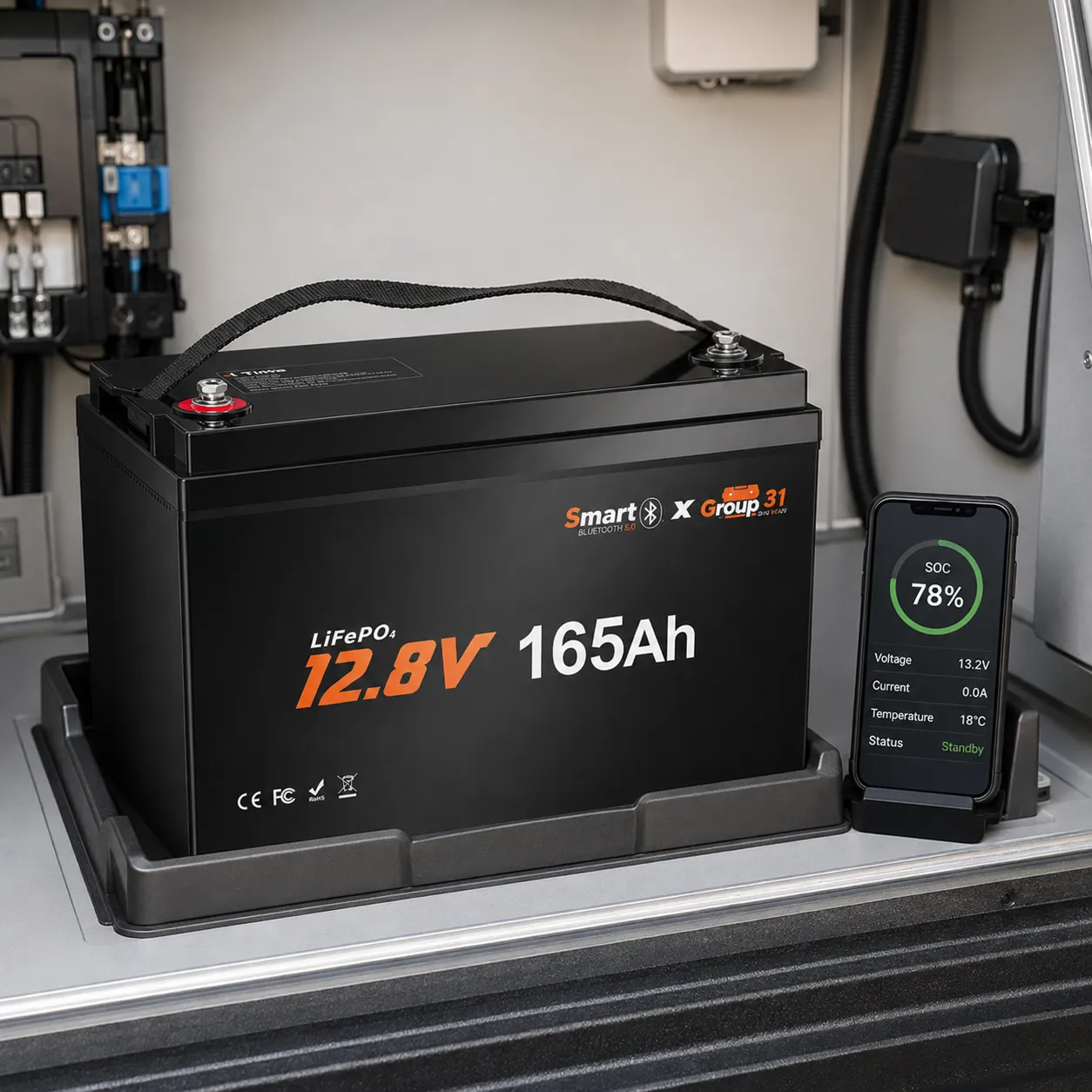

Bluetooth Battery Monitoring

View state of charge, voltage, current, power, temperature and cycle information from a compatible mobile app. Bluetooth access supports house-bank checks, RV battery-compartment monitoring and troubleshooting of charging or load conditions without opening the installation compartment.

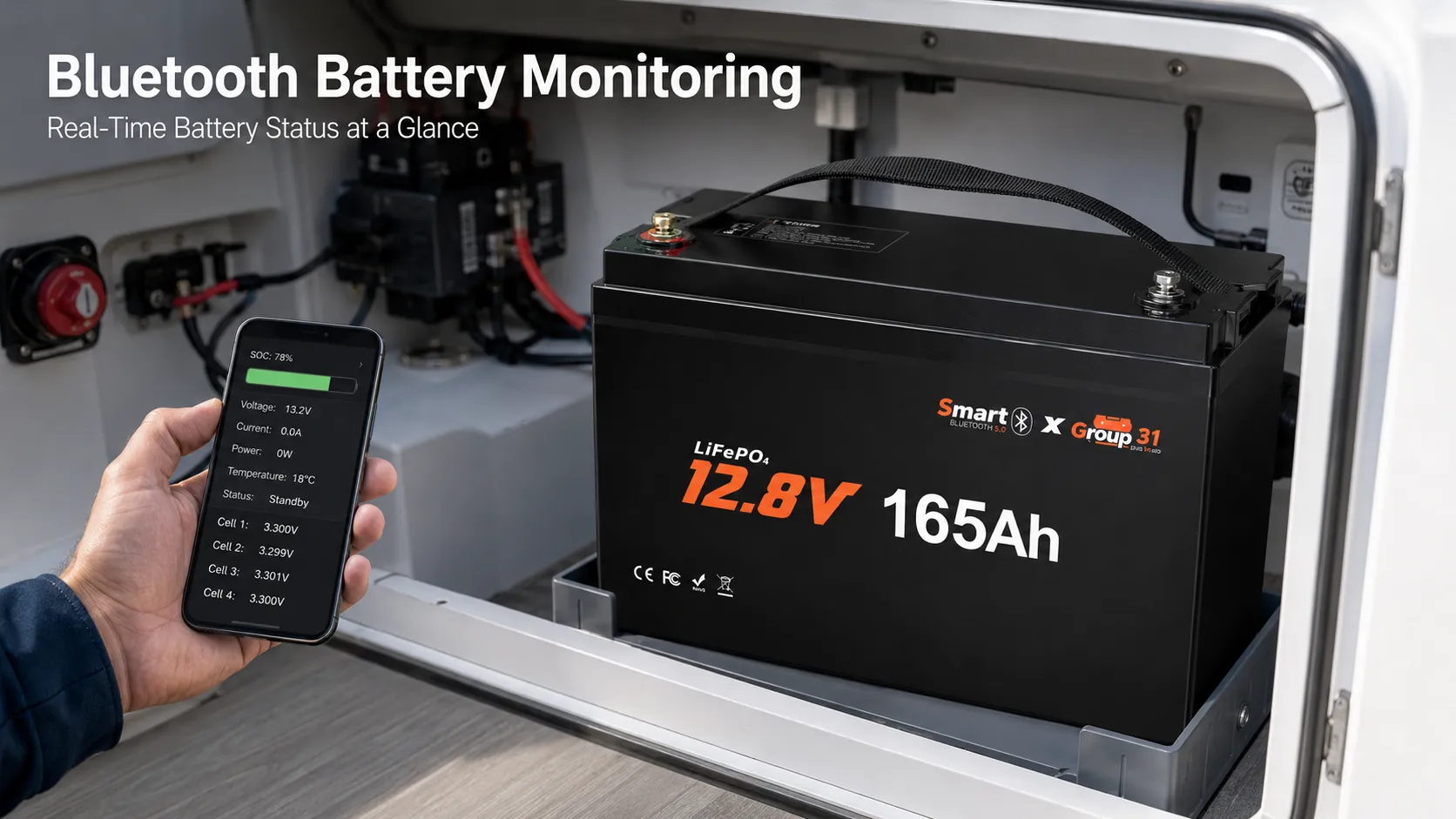

Bluetooth app monitoring for a 12V 165Ah Group 31 LiFePO4 battery
Bluetooth monitoring provides quick access to battery status and operating data.

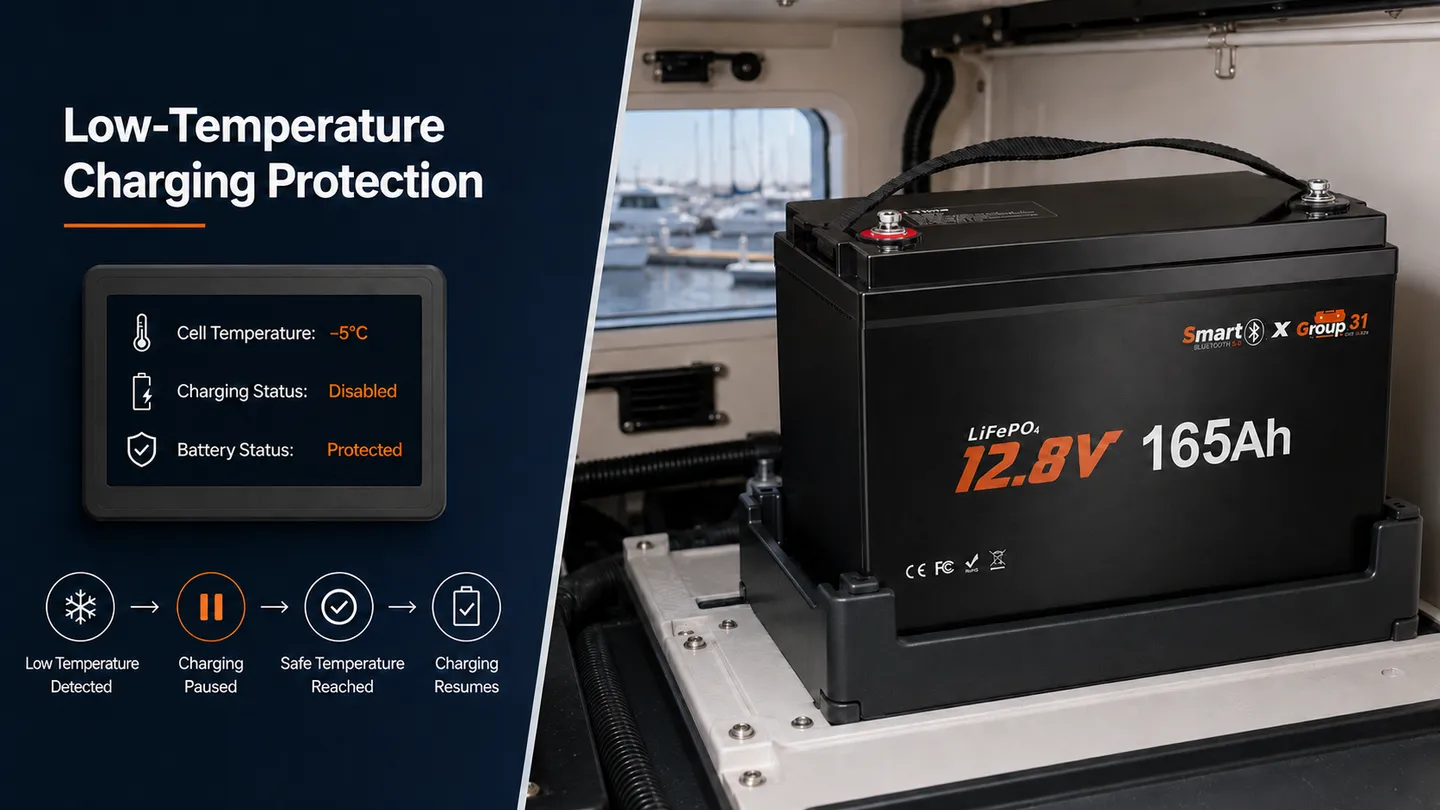

165A Smart BMS and Low-Temperature Protection

The integrated 165A Smart BMS provides up to 2,112W of continuous output and protects the battery during abnormal electrical or temperature conditions. Charging stops below 32°F (0°C) and resumes at or above 41°F (5°C). Discharging stops below −4°F (−20°C). This model does not warm the cells; use a self-heating version when regular charging below freezing is required.

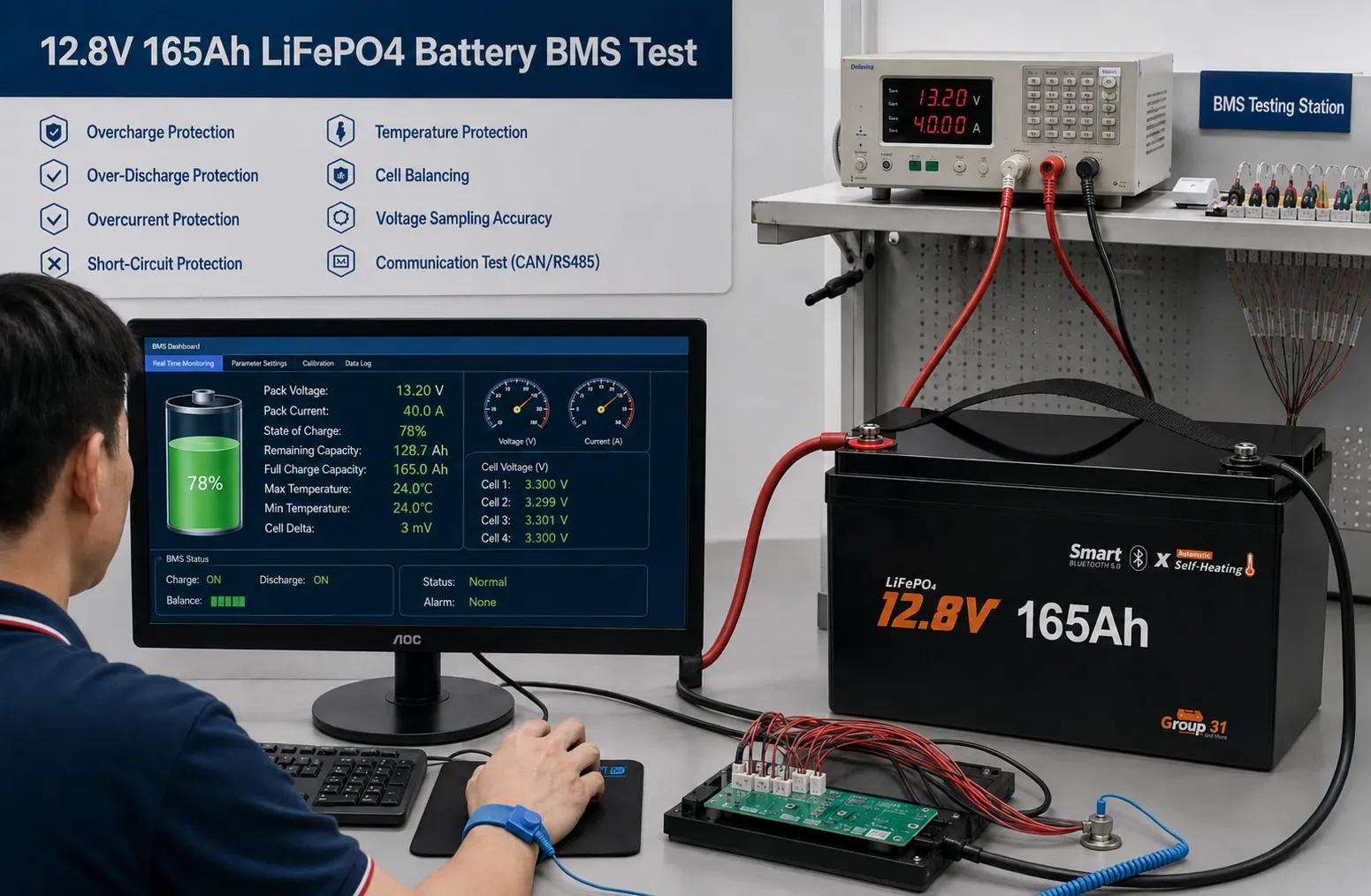

165A Smart BMS and low-temperature protection for a 12V 165Ah Group 31 LiFePO4 battery
165A Smart BMS protection with low-temperature charging and discharging cut-off.

Technical Specifications

Parameter Specification
Cell Chemistry Lithium Iron Phosphate (LiFePO4)
Nominal Voltage 12.8V
Rated Capacity 165Ah
Energy 2,112Wh
BMS 165A Smart BMS
Maximum Continuous Output 2,112W
Maximum Continuous Charge / Discharge 165A / 165A
Peak Discharge 825A for 1 second
Monitoring Bluetooth 5.0 mobile app
Cycle Life 4,000 cycles at 100% DOD; 6,000 at 80% DOD
Maximum Configuration Up to 4S4P (51.2V 660Ah), subject to the confirmed BMS configuration and product manual
Charge Method / Voltage CC/CV, 14.4V ± 0.2V
Recommended Charge Current 33A
Charge Temperature 32°F to 122°F (0°C to 50°C)
Discharge Temperature −4°F to 140°F (−20°C to 60°C)
Low-Temperature Charge Cut-Off Below 32°F (0°C)
Low-Temperature Charge Recovery At or above 41°F (5°C)
Low-Temperature Discharge Cut-Off Below −4°F (−20°C)
Self-Heating Not included
Dimensions 13 × 6.77 × 8.5 in (Group 31)
Approximate Weight 32.15 lb
Terminals / Housing M8 / ABS
Ingress Protection IP65
Compliance Documentation Certification and compliance documents are available subject to the supplied model and destination market.

Confirm dimensions, protection thresholds, compliance documentation and cycle-life test conditions against the final production datasheet for the ordered model.

Applications and Installation

Before replacing an AGM or flooded Group 31 deep-cycle battery, confirm the existing battery dimensions, compartment clearance, terminal position, cable routing, tray and hold-down arrangement. Group 31 identifies a case-size category but does not guarantee identical fitment or electrical compatibility.

Also verify the charger profile, continuous and peak electrical loads, fuse rating and cable ampacity. Use this model only in compatible Group 31 lead-acid replacement applications that meet the final product and installation requirements.

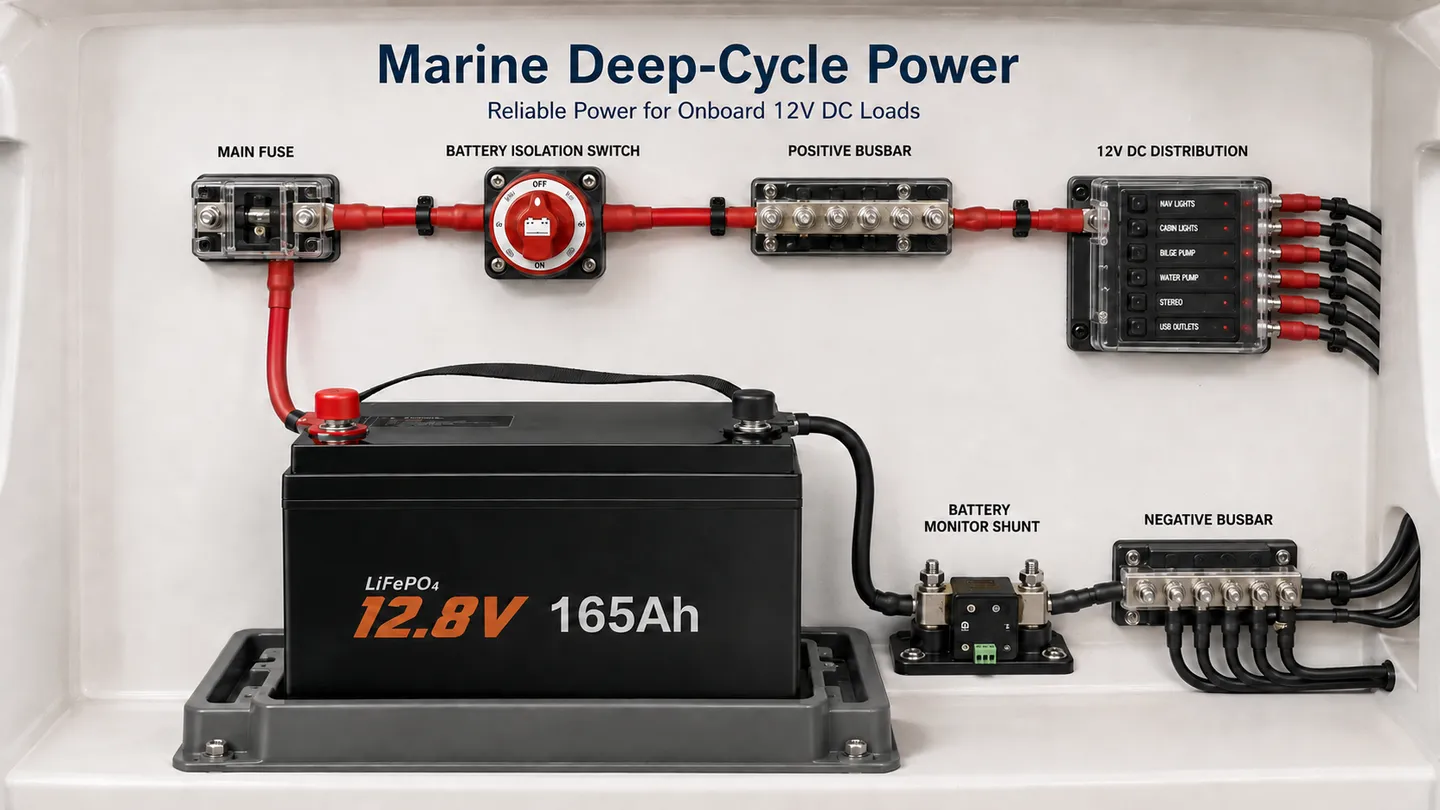

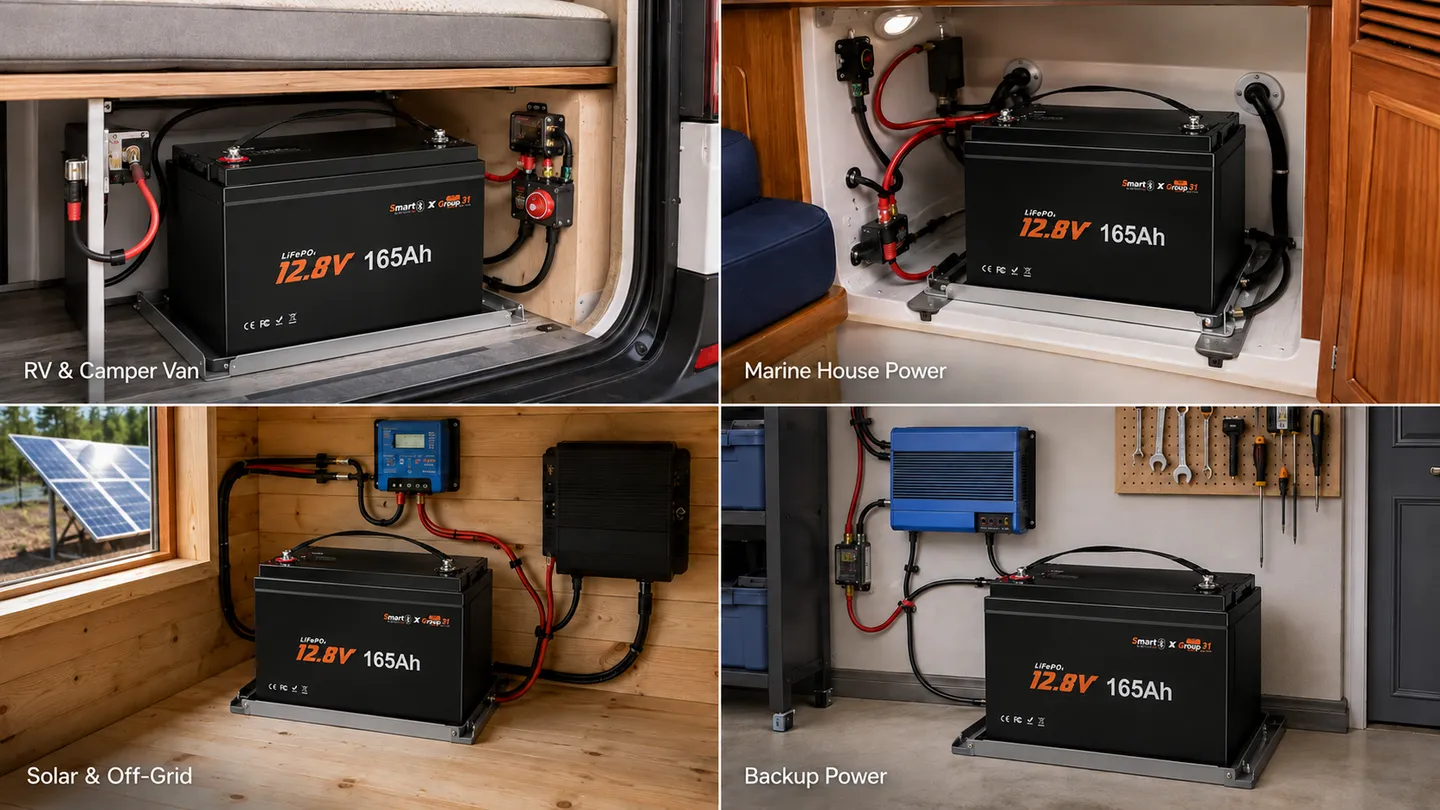

Suitable primary applications include RV house-power systems, camper vans and compatible Group 31 AGM or lead-acid deep-cycle replacements. It can also support solar-assisted 12V auxiliary systems and compatible marine house-power applications when the electrical load and charging equipment remain within the approved specifications. This model is not intended for engine starting.

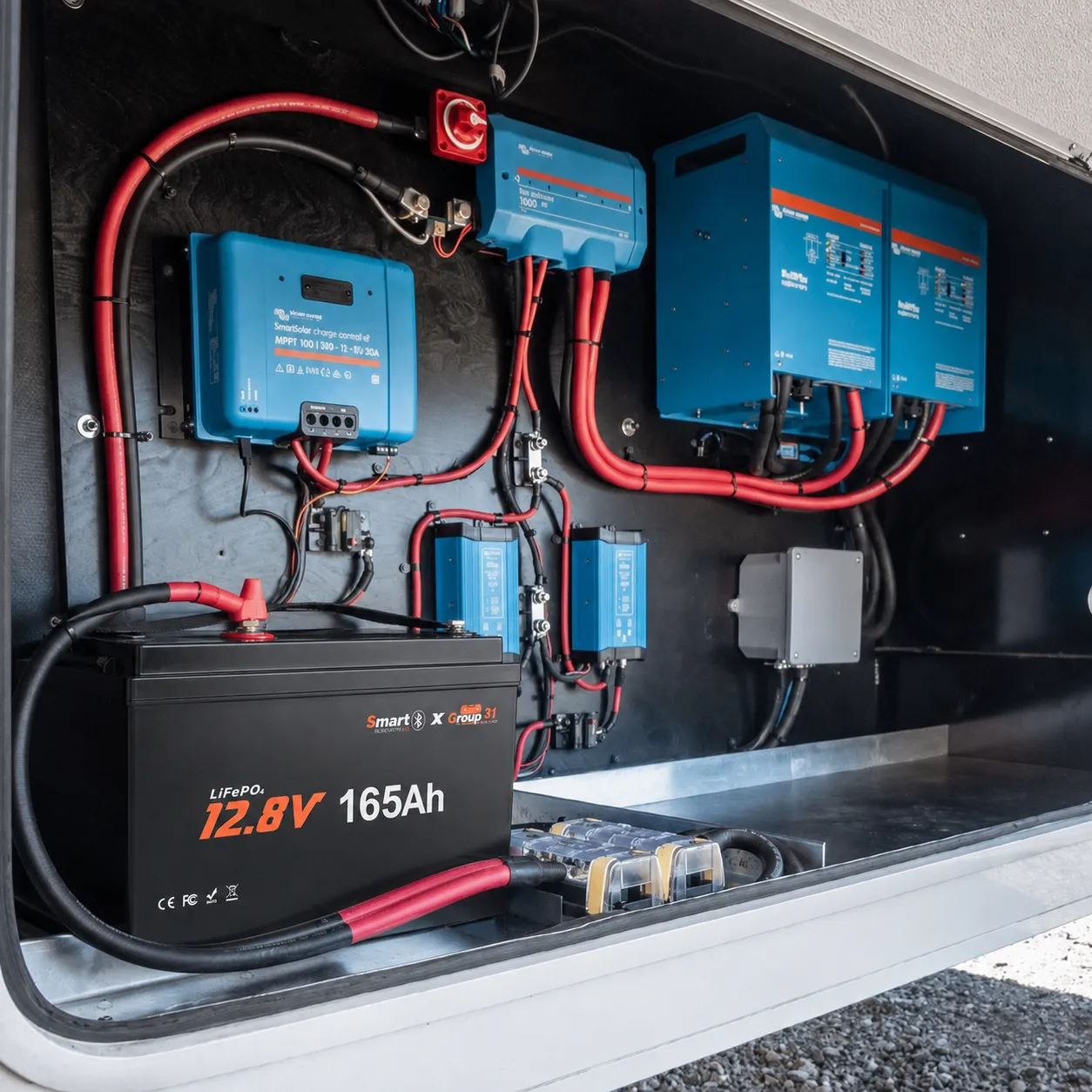

12V 165Ah Group 31 LiFePO4 battery installed in an RV or marine power system
Secure Group 31 battery installation with short, correctly sized cables and circuit protection.

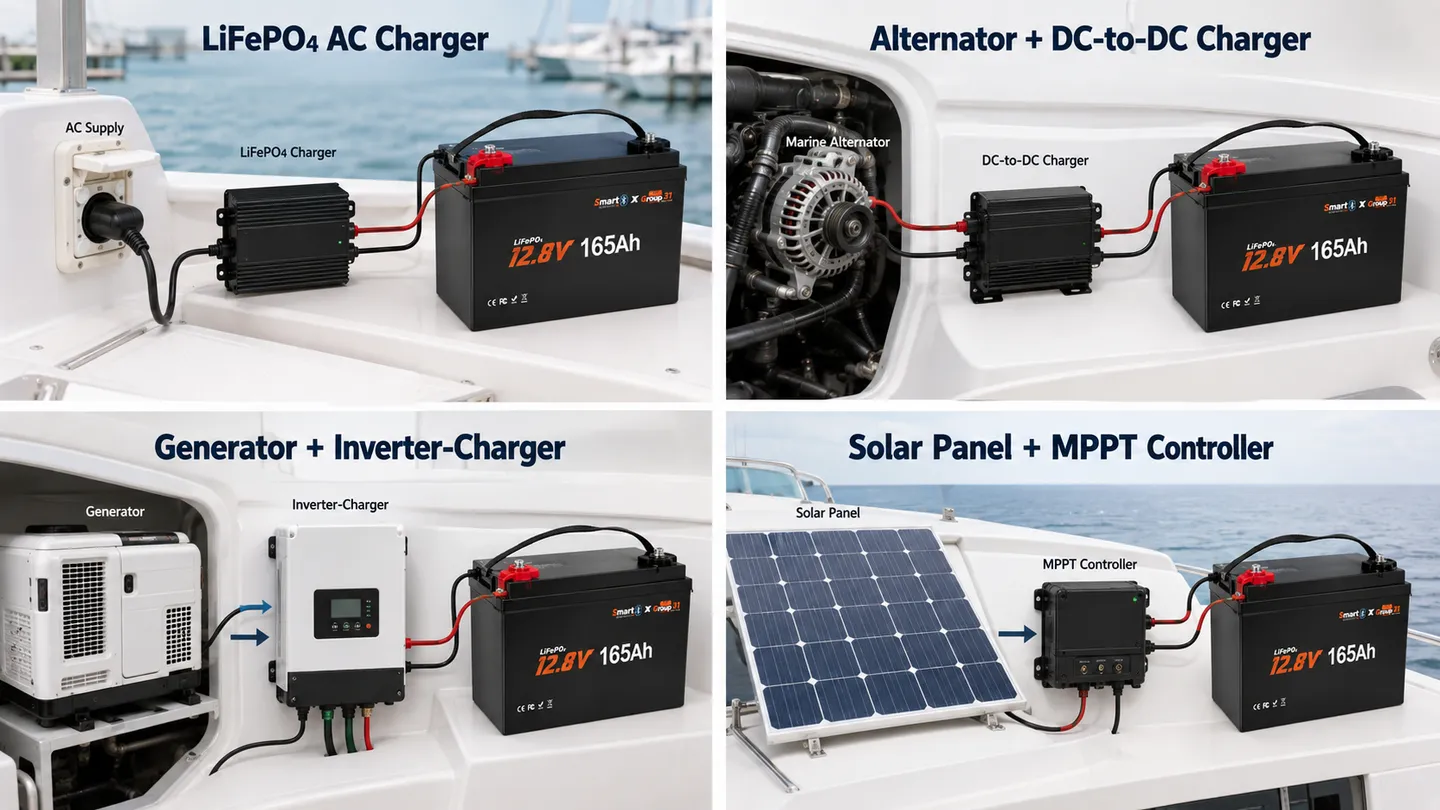

Charging and System Design

  • Use a LiFePO4-compatible RV converter, AC charger, solar charge controller or DC-to-DC charger with the approved charging profile.
  • The specified charging voltage is 14.4V ± 0.2V, with 33A as the recommended charging current.
  • Do not charge below 32°F (0°C); the low-temperature charge cut-off protects the cells but does not heat them.
  • Before series or parallel connection, use batteries of the same model, capacity, age and state of charge.
  • Confirm inverter surge demand, continuous load, cable ampacity and fuse rating before installation.
  • An existing lead-acid charger or converter should only be retained after its voltage and charging profile have been confirmed as compatible.

Questions About This 12V 165Ah Battery

Can this replace a Group 31 lead-acid deep-cycle battery?

It can be used in compatible Group 31 lead-acid replacement applications after the battery compartment, terminal position, cable routing, tray, hold-down, charger profile, electrical load, fuse and cable sizing have been confirmed. Group size alone does not guarantee compatibility.

Is this an engine-starting battery?

No. This model is designed for deep-cycle applications rather than engine starting. It is intended for house-power and compatible auxiliary electrical loads; do not use it to crank an engine.

Does it have self-heating?

No. Low-temperature charge cut-off prevents charging below freezing, but the battery does not warm itself.

Can I use my existing RV charger or converter?

Only when its charging voltage, current and profile are compatible with the battery specification. Use a LiFePO4-compatible charger or converter when the existing equipment cannot be confirmed as suitable.

What can I check through Bluetooth?

The compatible app can display state of charge, voltage, current, power, temperature, cycle information and operating status. These readings can support routine house-bank checks and troubleshooting of RV charging or load conditions.

Can I connect several batteries together?

Yes. The reference configuration supports up to 4S4P, providing a maximum nominal bank of 51.2V 660Ah when compatible identical batteries are used. Follow the product manual and use matched batteries, cables and appropriate branch protection.

Wholesale and OEM Support

Lead-Acid Replacement

Replaces a 12V Group 31 AGM or flooded deep-cycle battery in compatible RV house-power, camper-van and marine house systems. Confirm compartment dimensions, terminals, charger profile and maximum current before conversion, and see the lead-acid to LiFePO4 replacement guide and the Group 31 AGM vs LiFePO4 comparison.

Request Specifications or OEM Pricing

Send your required quantity, application, inverter power, charging method and available installation dimensions. We will review the configuration and provide the current datasheet, sample options, lead time and OEM/ODM quotation.

WE ARE MANUFACTURER
20+ Years Building Batteries in Shenzhen
We manufacture and test LiFePO4 battery cells and packs in-house. Our 300+ employee factory supports OEM and ODM projects, with UL, CE, UN38.3, IEC 62619, RoHS and MSDS documentation available for selected models.
