A Yamaha golf cart lithium battery conversion should be based on the vehicle’s original electrical system, not the model name alone. Yamaha golf carts have been produced across different generations, voltages, controllers, motors, chargers and battery-compartment layouts.
We supply 38.4V and 51.2V LiFePO4 battery systems for compatible Yamaha golf carts, dealer conversion projects, commercial fleets and OEM applications. Available options may include high-current BMS protection, Bluetooth monitoring, matched chargers, custom cables, terminals, mounting components and private-label packaging.
Yamaha G-Series, Drive and Drive2 vehicles may use different electrical configurations depending on model, year and market. References to G2, G9, G16, G19, G22, Drive or Drive2 describe potential applications only; they do not confirm that one battery fits every vehicle carrying that model name.
Before replacing a Yamaha lead-acid battery bank with one LiFePO4 battery, confirm the model and year, original system voltage, controller label, motor information, continuous and peak current, charger output, usable compartment dimensions, terminal position, cable routing and accessory-voltage requirements.
For broader guidance on voltage, capacity, BMS current and installation, see our LiFePO4 golf cart battery solutions.

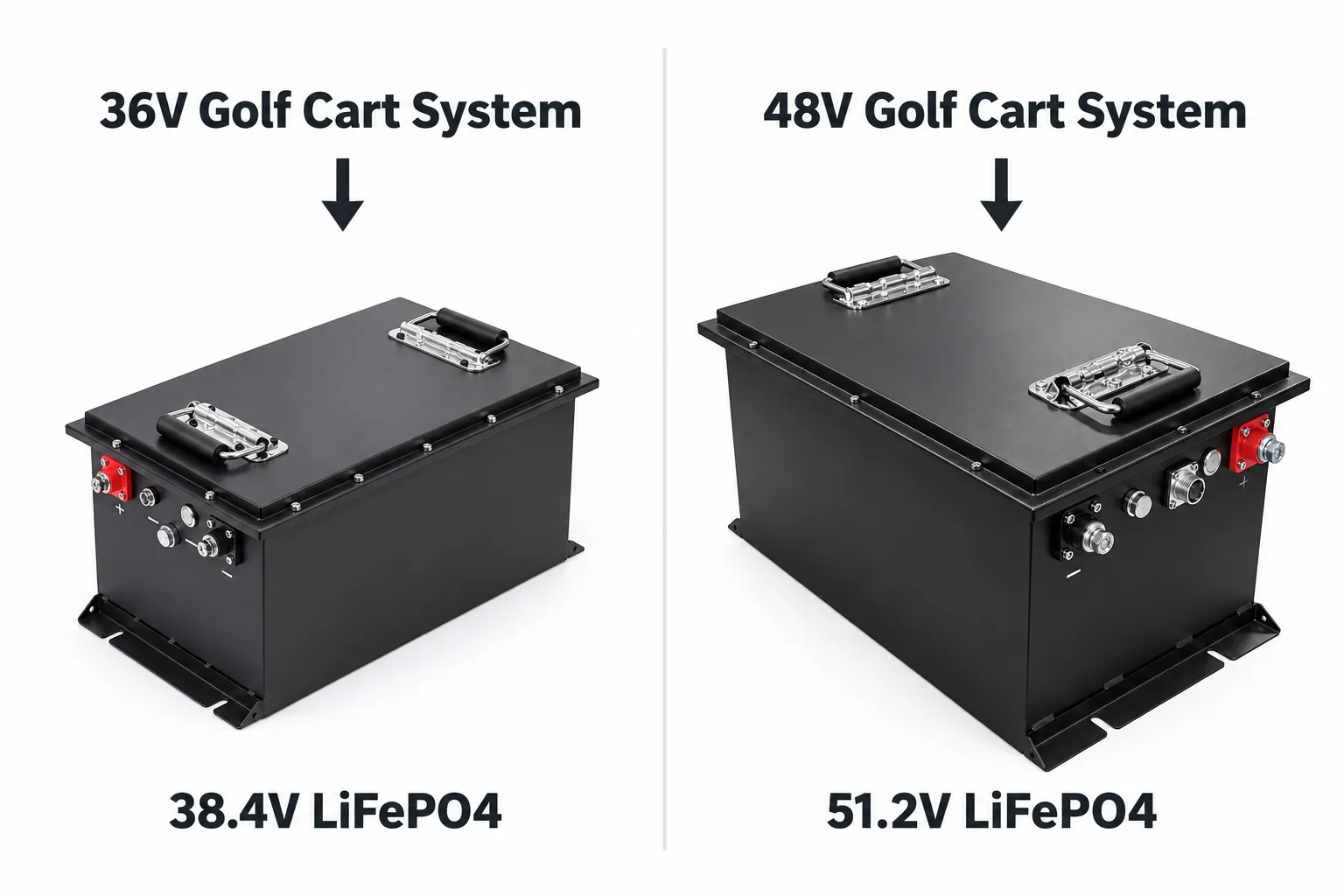

Match the replacement battery platform to the cart’s verified drive-system voltage. Replacing a compatible lead-acid bank with lithium is different from converting an entire 36V vehicle to a 48V drive system. Changing system voltage may also require a compatible controller, motor, solenoid, charger, wiring and accessory converter.
| Existing vehicle system | LiFePO4 platform to evaluate | Required checks |
|---|---|---|
| Compatible 36V Yamaha golf cart | 38.4V LiFePO4 battery system | Controller current, peak load, charger profile, compartment size, cables and circuit protection |
| Compatible 48V Yamaha golf cart | 51.2V LiFePO4 battery system | Controller voltage range, peak current, charging system, mounting and wiring protection |
| Unknown or modified vehicle | Technical review required | Model, year, controller, motor, existing battery bank, charger and compartment measurements |
Compare our 36V LiFePO4 batteries and 48V LiFePO4 batteries before requesting a vehicle-specific review.

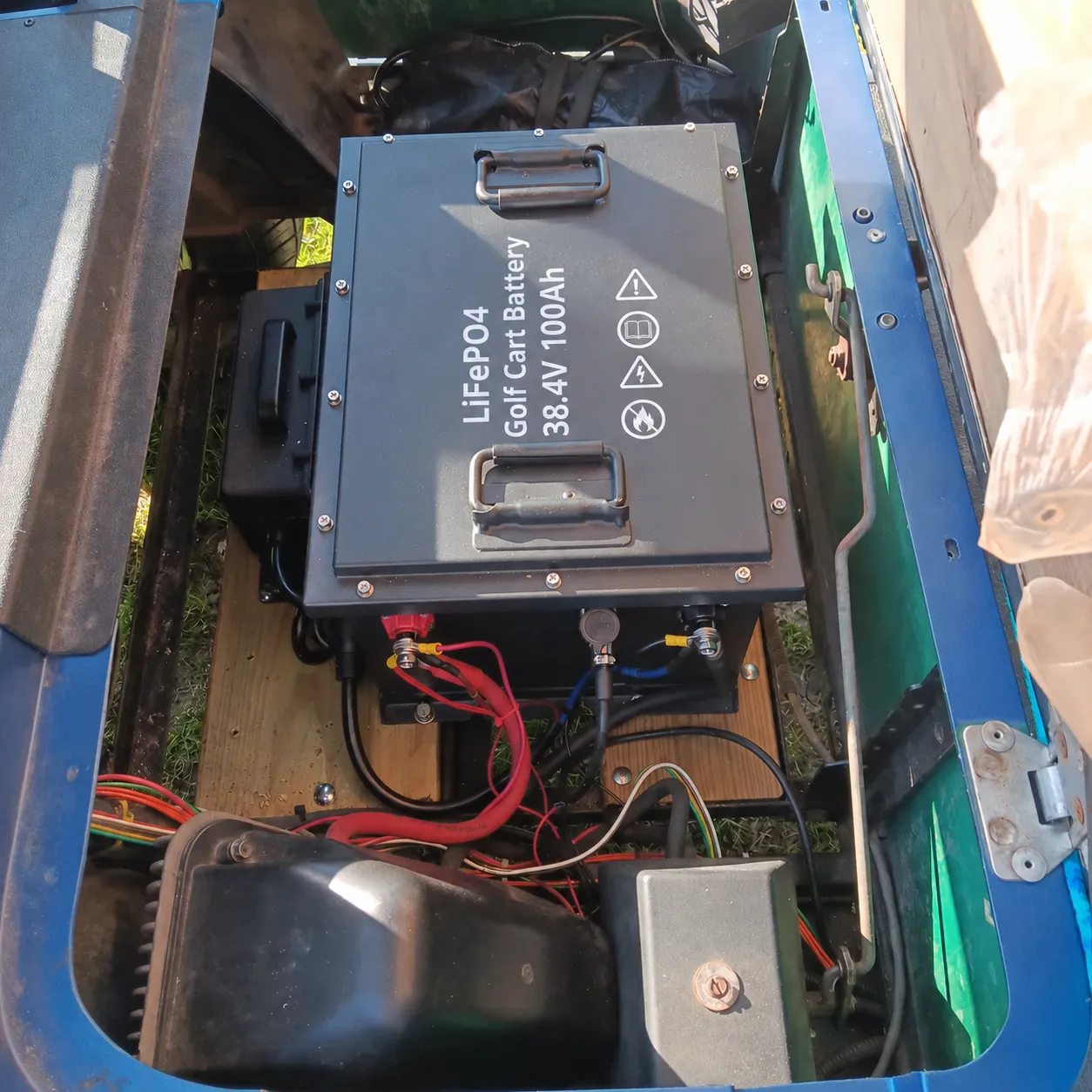

A compatible 36V Yamaha golf cart may be evaluated for a 38.4V LiFePO4 battery. Selection should account for controller demand, acceleration, hill climbing, passenger or cargo load, route conditions and required operating time.
A 38.4V 100Ah battery provides 3,840Wh of nominal stored energy in a single-battery format. Final suitability depends on the approved BMS current limits, charger, compartment dimensions, terminal clearance, mounting method and main circuit protection.
View the 36V 100Ah LiFePO4 golf cart battery.

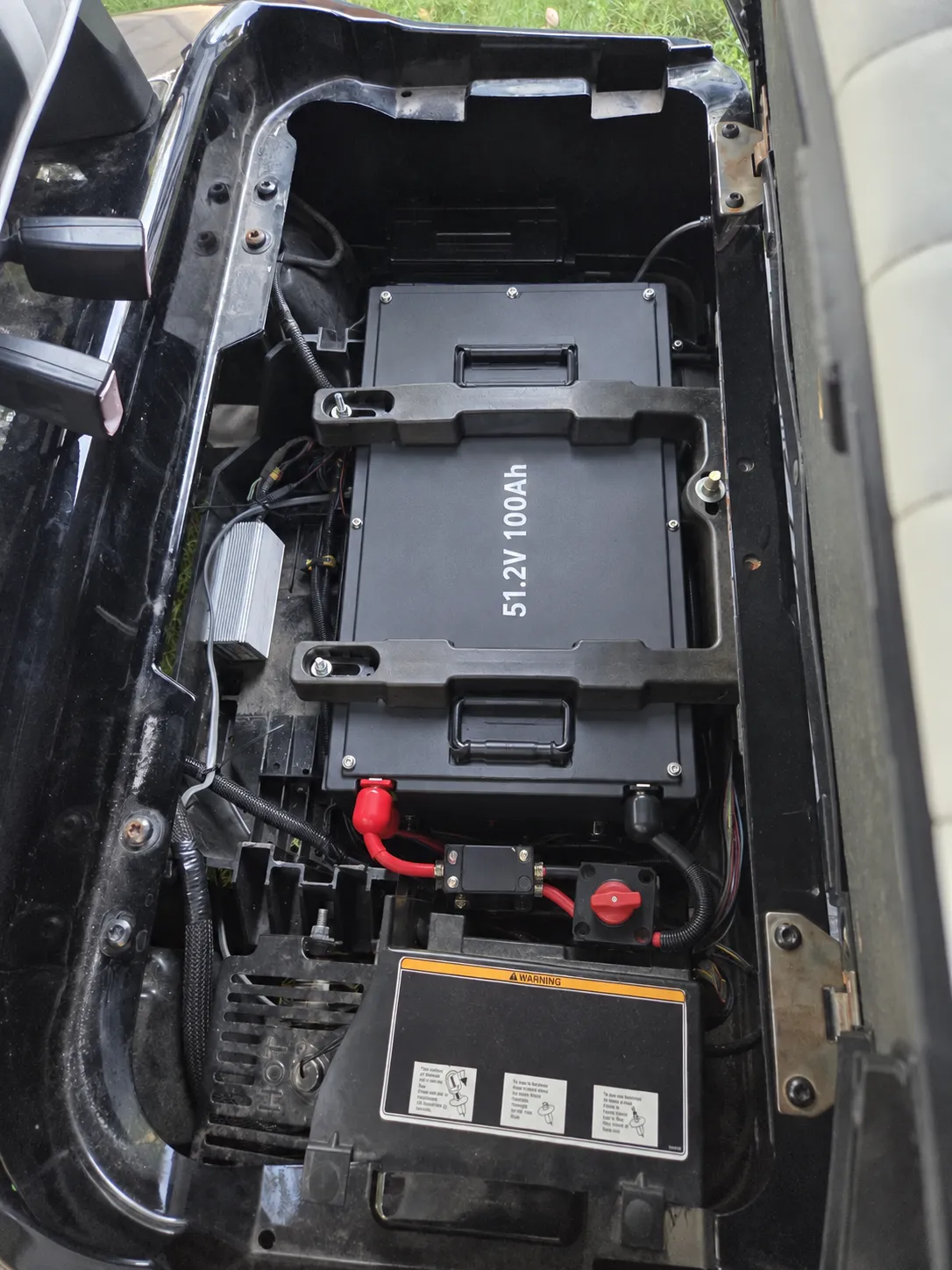

Compatible 48V Yamaha Drive, Drive2 and other verified 48V vehicles may be evaluated for a 51.2V LiFePO4 battery system. Different generations should not be treated as identical installations because controller, charger, cable layout, battery tray and accessory systems may vary.

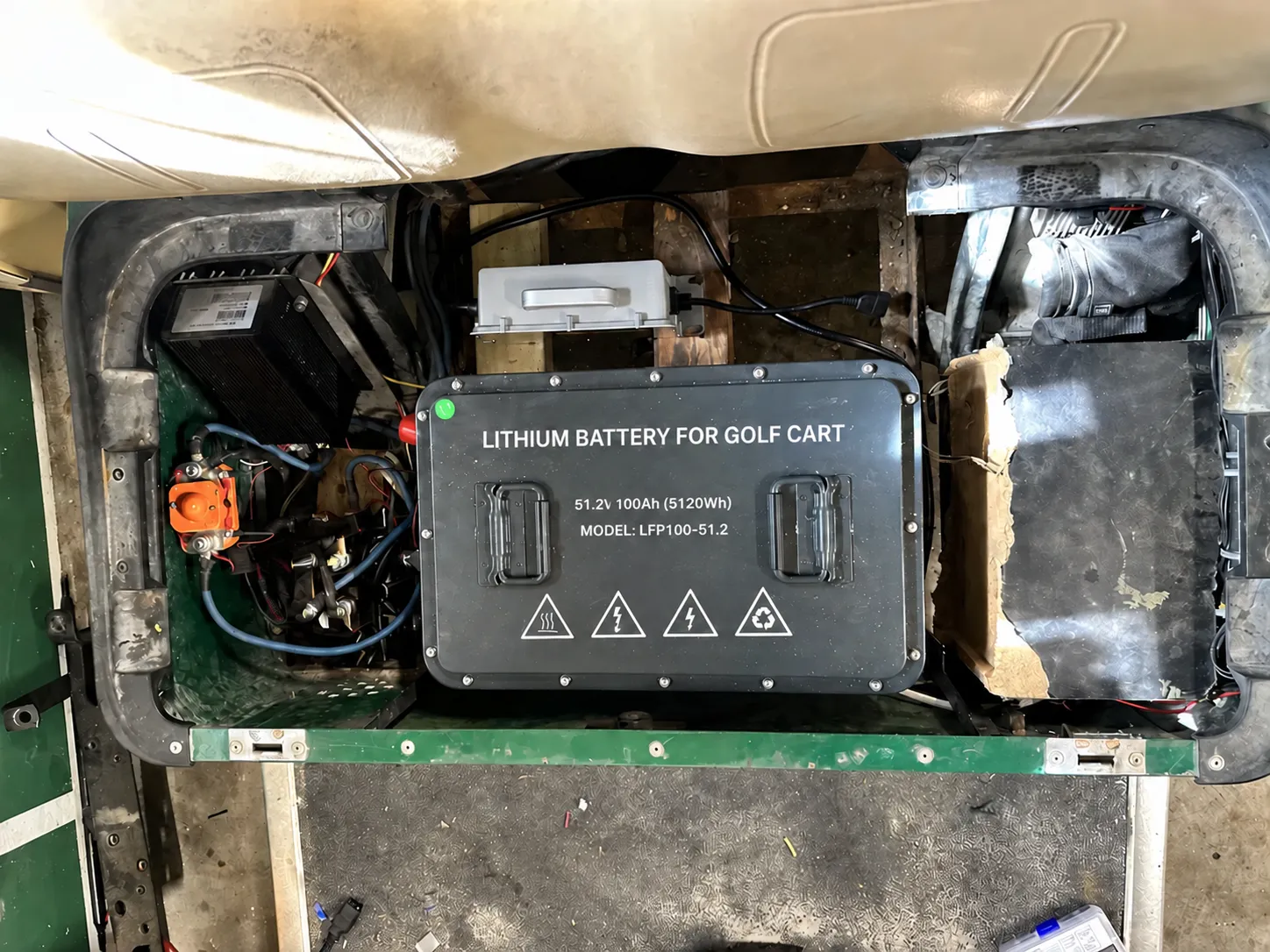

A 51.2V 100Ah battery provides 5,120Wh of nominal stored energy for compatible 48V golf carts and fleet vehicles. The BMS must support the vehicle’s actual continuous current, acceleration demand and approved short-duration peak current.
View the 48V 100Ah LiFePO4 golf cart battery.
Replacing several lead-acid batteries with one LiFePO4 battery can reduce inter-battery cables and routine watering or terminal maintenance. The conversion still requires correct mechanical mounting, over-current protection, isolation, cable sizing and compatible charging equipment.
Read our LiFePO4 lead-acid battery replacement guide for additional system-planning information.
Do not assume that the original lead-acid charger can be reused. Its output voltage, maximum current, charging profile and termination behavior must match the approved LiFePO4 battery configuration.
Confirm whether the cart uses an onboard or off-board charger, the connector and polarity, and whether the vehicle relies on an enable circuit or other charging control. Lead-acid equalization modes should not be used unless compatibility has been specifically confirmed.
Bluetooth monitoring can provide access to battery voltage, current, temperature, state of charge and operating status. It can support routine checks by owners, technicians and fleet operators, but it does not replace correct wiring, protection or physical inspection.
Battery capacity and BMS current are separate selection criteria. A higher Ah rating does not guarantee compatibility with every Yamaha golf cart controller. Continuous discharge current, peak-current duration and maximum charge current should be reviewed independently.
See our 36V and 48V golf cart battery projects for additional conversion and integration considerations.
Golf cart dealers, conversion shops, rental operators, golf courses, resorts and commercial fleets may need different battery configurations based on vehicle mix, daily operating hours, terrain, payload, charging schedule and replacement-stock requirements.
Available project options may include:
One compatible LiFePO4 battery may replace a multi-battery lead-acid bank after the vehicle voltage, controller current, compartment, charger, cables, fuse and accessory system have been checked.
A verified 36V drive system normally requires evaluation of a 38.4V LiFePO4 platform. Confirm the original voltage and controller before ordering.
A verified 48V system normally requires evaluation of a 51.2V LiFePO4 platform. Controller current, charger and installation requirements must still be confirmed.
No. Model generation, year, voltage and installed electrical components must be verified. Vehicles with similar names may have different controllers, chargers or battery compartments.
Only when its output voltage, current, charging profile and termination behavior are compatible with the selected LiFePO4 battery. Otherwise, use a confirmed matched charger.
Provide the model, model year, original system voltage, controller label, motor information, current battery arrangement, charger details, compartment measurements and required quantity.
Send us the Yamaha model, year, original voltage, controller and motor details, battery-compartment dimensions, charger information and required quantity. We can review a proposed 38.4V or 51.2V LiFePO4 configuration for your conversion, dealer or commercial fleet project.
Request Compatibility Review and PricingYamaha and related vehicle model names are trademarks of their respective owners. ZXBATT and BST Power are independent battery suppliers and are not affiliated with, sponsored by, or endorsed by Yamaha. Yamaha model references are used solely to describe potential battery compatibility and conversion applications. Compatibility varies by model, year and vehicle configuration. Final battery selection should be confirmed based on system voltage, controller, motor, charger, wiring, battery compartment and operating requirements.
